Click the button2000BPH – 10000BPH PET Preform Injection Molding Machine For Bottle Preform / Bottle Cap
The PET preformed injection molding machine from our company is able to produce Both Bottle Preform,and Bottle cap., the Capacity could from 2000 BPH to 10000BPH, we can customized the machine according to your requirements. For example, you can print your logo on the prefabricated parts, and you can make some other decisions. So that the customer can start production from the raw material.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Condition: | New, New | Type: | Injection Blow Molding |
---|---|---|---|
Style: | Vertical | Brand Name: | Qualipak |
Automatic: | Yes | Injection Weight: | 300g/s ~ 1500g/s |
Injection Rate: | 310-405g/s | Certification: | CE ISO SGS |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Delivery Time: | 30-45 Days After T/T Deposit Or L/C |

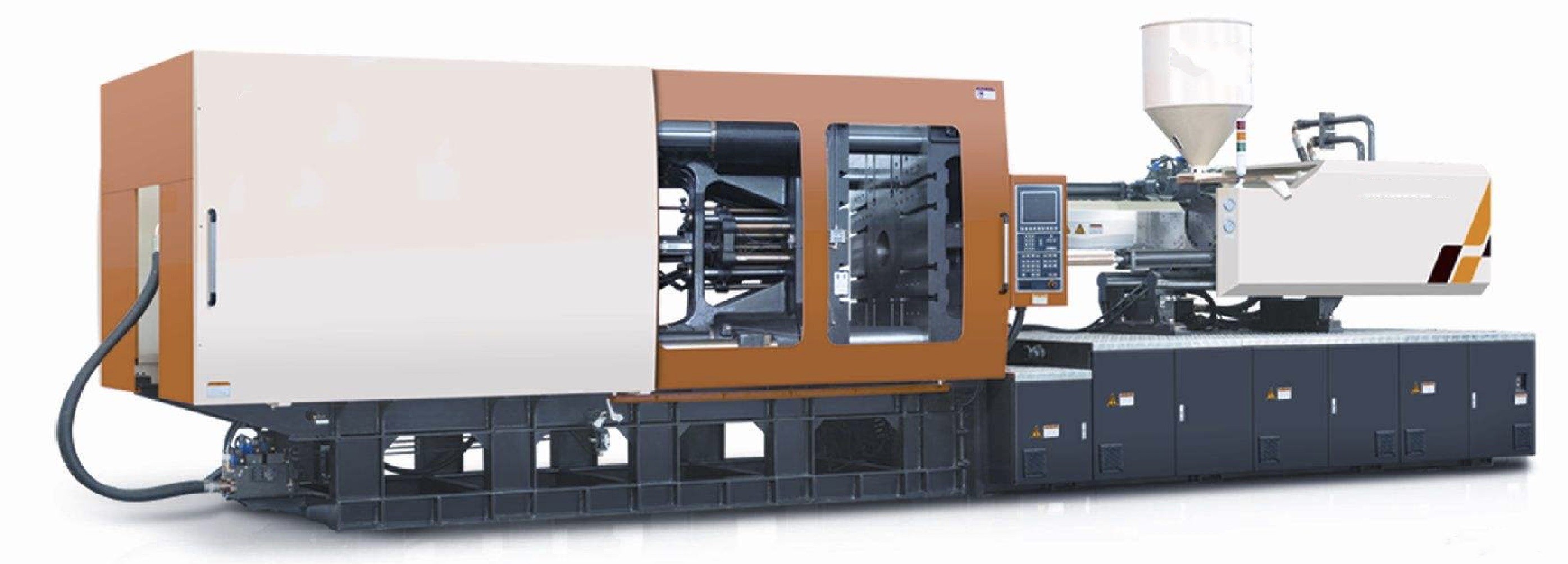

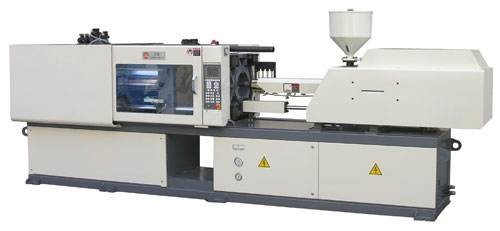

2000BPH to10000BPH Plastic Injection Molding Machine for Bottle Preform and Bottle Cap
The PET preformed injection molding machine from our company is able to produce Both Bottle Preform,and Bottle cap., the Capacity could from 2000 BPH to 10000BPH, we can customized the machine according to your requirements. For example, you can print your logo on the prefabricated parts, and you can make some other decisions. So that the customer can start production from the raw material.
Features:
- Equipped with various injection molding machine parts, such as hopper dryer, automatic loader, dehumidifier, chiller, etc.
- Support various raw materials, including PP, PE, PS injection molding machine 50g ~ 3500 g.
- Support 427 ~ 2500 g large capacity PET preformed blank injection molding machine.
- Can support PVC raw material accessories.
Machine Parameters:
Description |
Unit |
PET1700-800 |
PET2100-1300 |
PET2600-2400 |
PET3200-3000 |
Injection weight |
mm |
55 |
60 |
70 |
80 |
Screw diameter |
L/D |
25 |
25 |
30.3 |
25 |
Theorietical shot volume |
cm3 |
570 |
763 |
1431 |
1960 |
Shot weight |
g(PET) |
615 |
824 |
2100 |
2116 |
Plasticizing Capacity |
g/s |
26.6 |
30.3 |
54.5 |
58.7 |
Injection pressure |
Bar |
1388 |
1431 |
1564 |
1524 |
Clamping force |
KN |
1700 |
2100 |
2600 |
3200 |
Opening stroke |
mm |
435 |
475 |
550 |
660 |
Space betwwen tie-bars |
mm |
470*470 |
520*520 |
580*580 |
660*660 |
Max.mold height |
mm |
520 |
530 |
580 |
680 |
Min.mold height |
mm |
180 |
200 |
200 |
250 |
Injection stroke |
mm |
135 |
140 |
150 |
160 |
Injection force |
KN |
46 |
62 |
62 |
62 |
Pump motor capacity |
KW |
28.3 |
36.7 |
36.7 |
39.4 |
Pump volume |
ml/r |
64 |
80 |
100 |
125 |
Hydraulic motor volume |
ml/r |
900 |
1200 |
1600 |
2000 |
Screw speed |
r/min |
156 |
145 |
137.5 |
137.5 |
Our injection molding machine is widely used for wide range application, we can produce all kinds of moulds according to customers' requirements, including.
1. Drinking water, mineral water bottle mold.
2. Bottle cap mold.
3. 5 gallon bottle cap mold.
4. All kinds of shampoo, oil and sports hat mould.
5. Cosmetic bottle cap and wine mould.
6. Box crane mold PVC accessories and switch mould and spoon fork and other molds.
Flow Chart
Product show
OutPut Products
Packaging
We will pack the machine with standard export wooden case to keep it save ,and delivery in container.
Question and Aswer:
Q1: are you a trading company or a manufacturing company?
A1: we are a manufacturer and we provide export trade services.
Q2: I want to buy your equipment. Do you have a warranty?
We provide high quality machine and 2 years warranty. We will give away your spare parts for free in 2 years:
Q3 : When can I get my machine if I buy it now?
Our delivery time is about 30-40 days. We can calculate the specific receipt time according to your geographical location.
Q4: how can we buy your spares?
A5: after we finished all the work, we delivery spare part for free along with machine ,and we will provide a list of spare parts for your reference.
Q5: How do I install my machine when it arrives?
A5: once you get all the machines , we will arrange professional engineers to your facotry to install, debug and train your technicians to operate the machine according to the drawings.
After Sales Service
- The whole system is guaranteed for 2 years.
- Free equipment installation and debugging.
- After 2 year, we can help you spares with cost price, and the accessories are provided .
- We can provide installation,debugging services to help you train operators and mechanic.
- Free production process and process configuration.
- We can help you design the production line, workshop and provide turnkey projects.
-
