Condition: | New | Application: | Bottle |
---|---|---|---|
Blow Moulding Type: | Injection Stretch Blow Moulding Machine | Brand Name: | Qualipak |
Model Number: | MT-PIS3000 | Certification: | CE&SGS |
Warranty: | 2 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Motor Power: | 15kW | Material Applicable: | HDPE/LDPE/PP/PS |

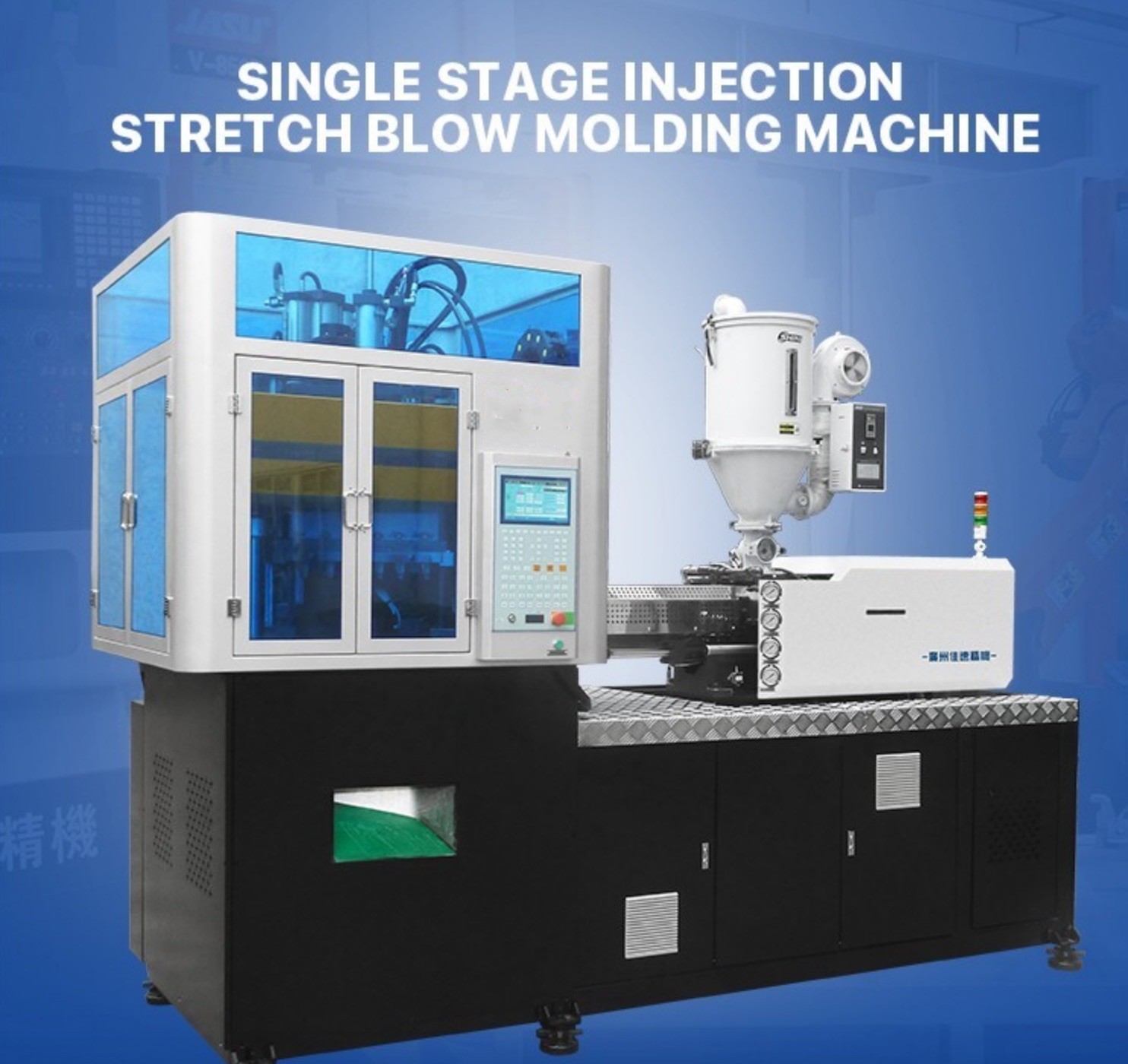

Automatic plastic injection stretch Blow molding machine Single Stage For Pet bottle
Product Description:
Plastic injection stretch Blow molding machine is used for proucing all kinds of plastic bottles,the material could be pp,pet,pe and others ,this machine is efficient and less energy consumption,which could save at least 20% percento of running cost for your business.
- Fultifunctional with Flexible desing with Hot runner and temperature control devices with standard configurations , for different products ,you only need to change the mold.
- Compact Design, Need less space.
- Servo motor drive to avoid hydraulic pollute the products.
- Fully automatic control for, easy to operate.
- Hydraulic die clip, core insert, blowing bottom molding are all standard configuration.
- Precise control of barrel and heat flow temperature.
- it saves at least 20% of cost than traditional machines.
- PROVIDE THE WHOLE SERVICE FOR MOLDING DESIGN AND MANUFACTURE.
Specifications:
Model |
MT-300 | |
Injection Part | ||
Screw Diameter | 50mm | |
Screw L/D Ratio | 20.5:1 | |
Screw Speed | 0-150RPM | |
Theoretical Injection Capacity | 481cm3 | |
Injection Pressure | 176Mpa | |
Max. Hydraulic Pressure | 140Kg/cm | |
The Actual Injection Quantity(PS): | 452g(ps)/8Oz | |
Screw Stroke: | 245Mm | |
Clamping Part | ||
Blow Clamping Force: | 80Kn | |
Clamp Tonnage: | 600Kn | |
Wheel Diameter: | 800mm | |
Max. Height of Bottle: | ISB:200/IB:260 | |
Open Vertical Mode Trip: | 430mm/530mm | |
Others | ||
Max. Pump Pressure: | 16Mpa | |
Motor Oil: | 18.5Kw | |
Electric Power: | 12.2Kw | |
Oil Tank: | 400L | |
Overall Dimension(L*W*H): | 4.10m*1.45m*3.0m |

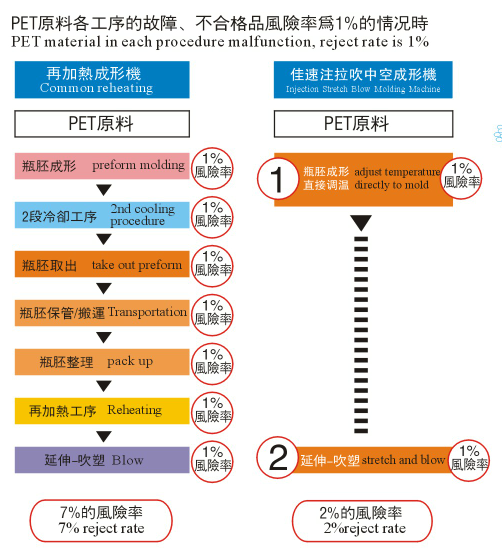

Flow Chart
Our services
-
Free consulting services, provide products introduction, running video, and other informations accoridng to your demands.
-
Arrange to visit our factory.
-
Sample test to ensure that you arrange balance payment after the test.
-
Provide 2 years warranty, any problem in 2 years, we will solve unconditionally, and it is totally free.
-
Provide engineers to arrange installation, commissioning, training services, training how to install machines, operation and so on.
-
