Condition: | New | Application: | Bottle |
---|---|---|---|
Name: | Plastic Blow Moulding Machine | Automatic: | Yes |
Voltage: | 380v Or Special | Weight: | 1000KG |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Cavity: | 1or 2cavity |
PLC: | BOTHFIT | Oven Size: | 1.45*0.65*1.15m |
Bottle Material: | PP PE PET PVC |
2500ML 5 Gallon Bottle Blow Molding Machine / Fully Automatic Pet Bottle Blowing Machine
Product Description
This 5 gallon bottle blow molding machine is widely used for producing all kinds of PET plastic containers from 5L to 25L bottles.it can manufacture carbonated beverage bottles, mineral water, carbonated beverage bottles, pesticide bottles, refined oil bottle cosmetics, wide-mouthed bottles and so on.
The equipment quality reaches the international advanced standard,reliable and efficient.
Product Features
- Adopt double crank modulator, good lock mould, steady and fast, use infrared furnace to heat, rotate uniform heating.
- The air system is divided into pneumatic parts and bottle blowing parts to meet different action and clamping requirements, which can provide sufficient and stable high pressure for blowing large shaped bottle.
- The machine also has a silencer and oil filling system to lubricate the machinery part of the machine.
- The machine is small in size, low cost in investment, simple and safe in operation.
- The machine can be divided into step-type and automatic mode.
Specification:
Auto 2500ML 5 gallon PET bottle blowing machine | ||
Machine Model: | MT-1400 | |
Producing capacity | Max. 100 bottles per hour | |
Cavity quantity: | 1 | |
Bottle material: | PET | |
Bottle volume: | 5 Gallon | |
Bottle max height: | 460mm | |
Bottle max diameter: | 360mm | |
Max. mould plate dimension: | 520*600mm(L*H) | |
Max mould thickness | 400mm | |
Clamping force: | 300KN | |
Mould opening stroke: | 330mm | |
Main machine power: | 30KW | |
Electricity supplying : | Customized | |
Main machine dimension: | 2660*1800*2160mm(L*W*H) | |
Main machine weight: | 2MT | |
Control: | Microcomputer | |
Electrical system: | DELIXI |

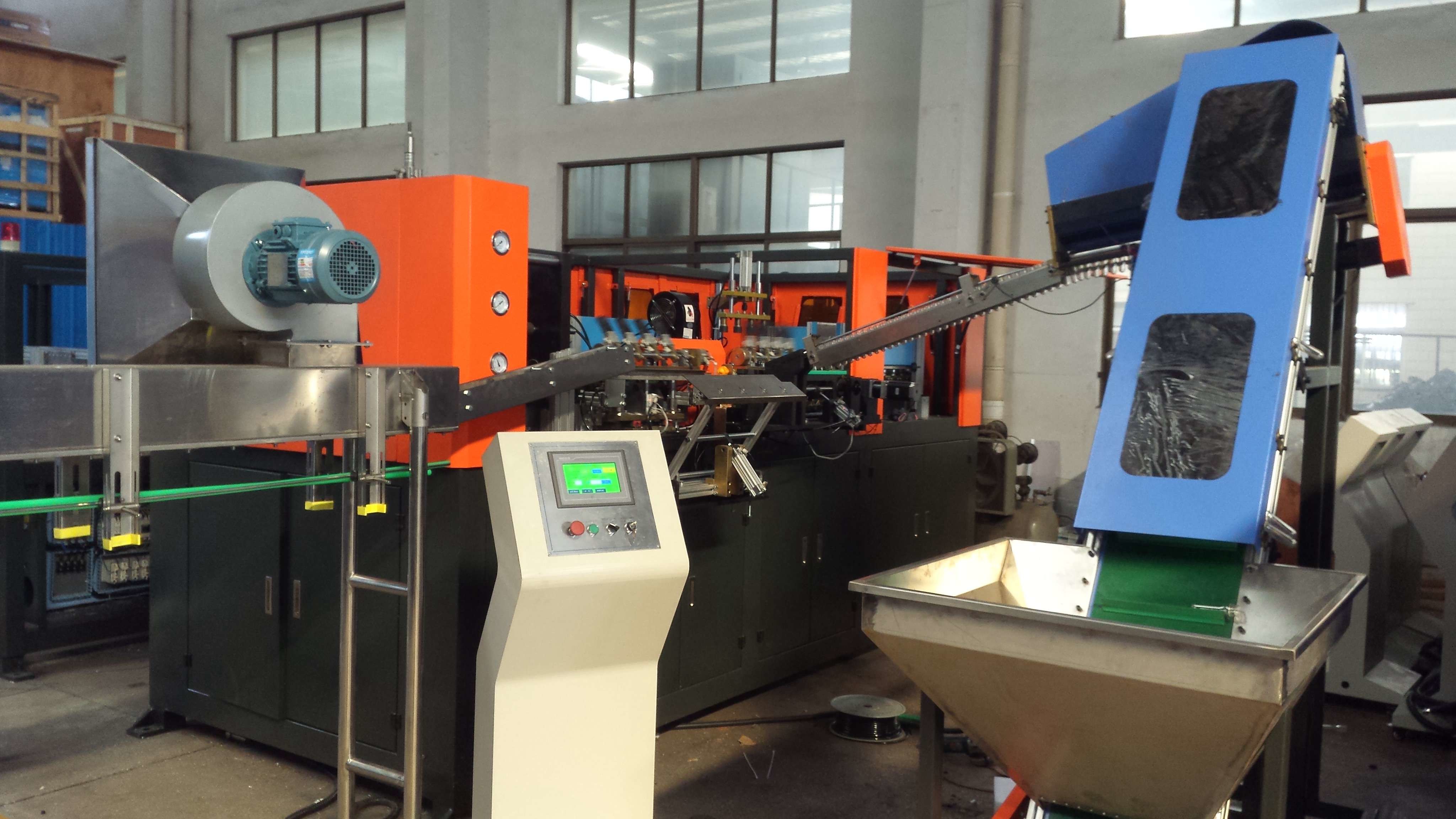

Product Show:
Output Product
Bottle Design
High quality mold:
Flow Chart
Our Service
- We provide one year's warranty, and we have prepared adequate equipment spare parts as inventory, customers need to repair and repair spare parts at any time, we can be delivery it quickly.
- The experienced engineers and technicians are responsible for equipment installation and commissioning to ensure normal production.and train your staff to ensure that your technical engineer are able to do the operation and mainenance for the machine.
- Provide customers with pre-project planning workshop and design.
- we could help for desin the the factory layout according to your speicifications.
-
