Overview
| Type: | Automatic Bag Filling And Sealing Machine | Condition: | New |
|---|---|---|---|
| Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Type: | Bags, Bottles |
| Driven Type: | Electric | Power: | 1.5kw |
| Dimension(L*W*H): | 850*700*1550mm | Weight: | 300KG |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Structure: | Stainless Steel 304 |
| Bag Size: | L:50-110mm W:30-80mm | Capacity: | 35-90Bags/min |
| Filling Range: | 5-40ml |
High Speed Automatic Bag Filling Machine Multi Functional Liquid Pouch Filling Machine
Application:
The packaging is widely applied. When a multi-function packaging machine is used, it can be used to pack liquid products such as water, milk, juice, soymilk, yogurt, water, beverage, oil and other products in food, medicine and chemical industry.
Main feature:
- The liquid pump measurement system can be used to measure the material content and high precision.
- Using delta / SIEMENS PLC or microcomputer controller and touch screen, the Chinese and English surface.
- The operation of the equipment is simply equipped with Schneider frequency converter, and the whole speed can be changed only by the input number.
- Accurate cutting, the equipment adopts a double heating pipe system to ensure stable temperature, perfect sealing surface, intelligent temperature controller.
- High automation, bag making, metering, filling, sealing, cutting, counting, hot printing and other work can be completed automatically.
- Stainless steel 304 is used for all the contact parts and the surface of the machine to ensure food hygiene and easy to clean.

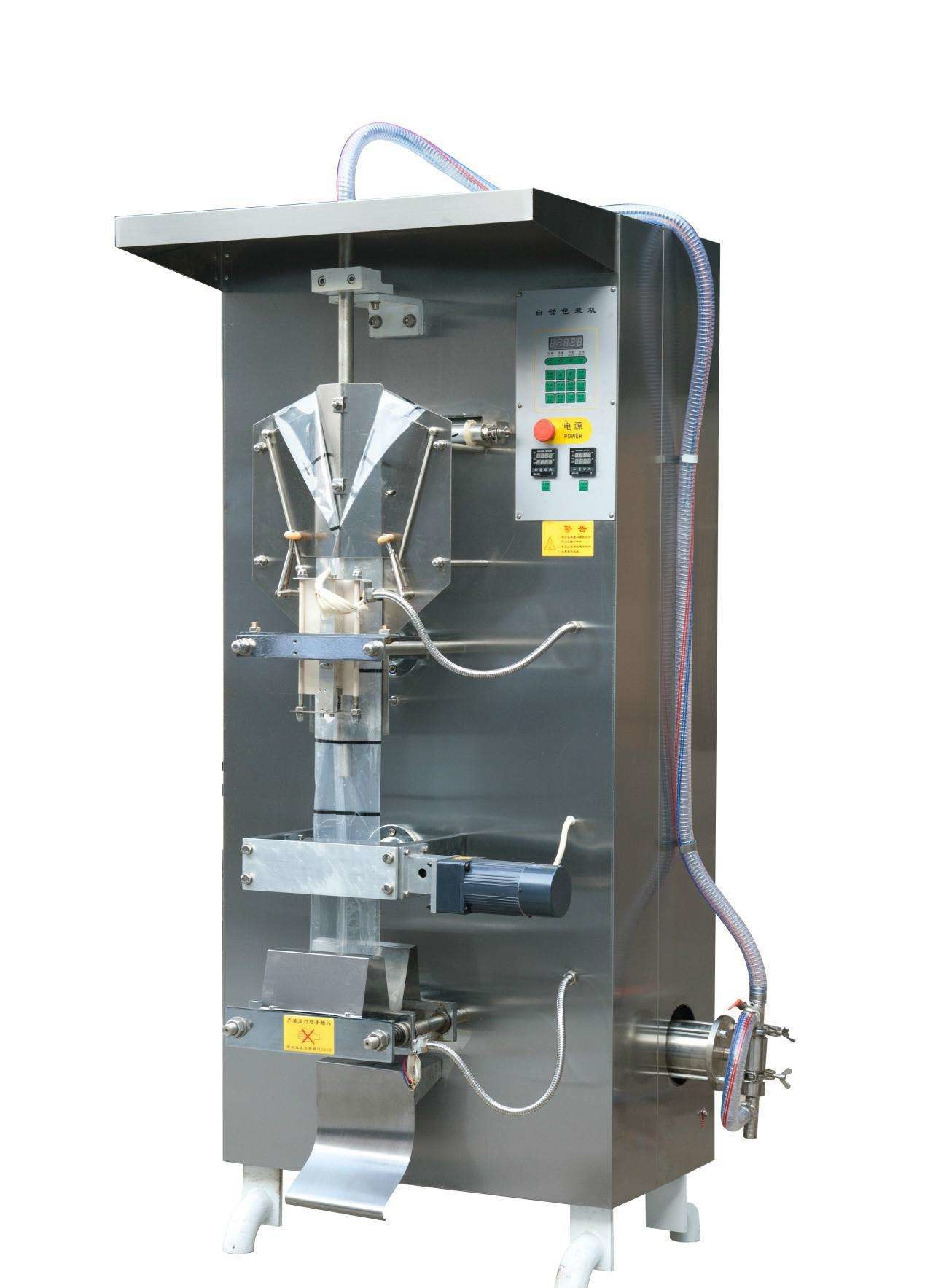

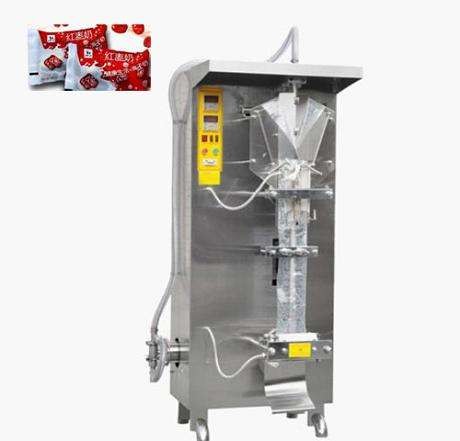

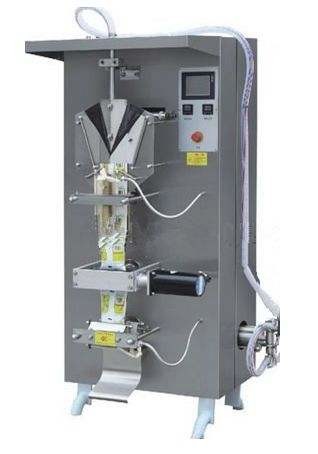

Product Show
Paratemer:
| Model | L40 | L140 |
| Bag dimension |
L:40-120mm W:30-80mm |
L: 80-140mm, W:60-205mm |
| Speed | 35-90Bags/min | 35-90Bags/min |
| Filling Range | 5-40ml | 5-140ml |
| Power | 220V, 40Hz, 1.8Kw | 220V, 40Hz, 1.5Kw |
| Machine Weight | 300KG | 300KG |
| Machine Size | 840*700*1540mm | 840*700*1540 mm |
We have wide range optional choice ,contact us for more details
Samples
Packaging & Shipping:
In order to ensure the safety of transportation, we attach great importance to packing. For the equipment, we use plastic film to wrap around the equipment, and we use fumigation wooden box outside the equipment. The wooden case is strong and can be transported over the sea for a long time to ensure that it will not be corroded by sea water.
Delivery :
Delivery in 10 days, Ocean freight, Air freight, and other way is available to us.
