Click the buttonMultifunctional Plastic Injection Molding Machine 60T – 4000T Capacity
Our plastic Injection molding machine is able to produce all kinds of plastic products,it is widely used in the production of plastic chair, such as arm-chair production, coffee chair mould making, dining chair production, etc. Please send the photo of the chair. We will check the mold size and confirm the machine capacity.the material including PP/PE/ABS etc.mateirals. and other special material like PET/PVC/PS/PC etc,for different products you only need to change mold.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Condition: | New | Type: | Other |
---|---|---|---|
Style: | Horizontal | Brand Name: | Qualipak |
Model Number: | MT-IMM430 | Place Of Origin: | China (Mainland) |
Plastic Type: | Thermoplastic | Automatic: | Yes |
Injection Weight: | 1175 Gm |
Multifunctional Stable High Capacity 60T to 4000T Plastic injection Molding Machine Arm-chair Coffee Chair
Product Descriptions
Our plastic Injection molding machine is able to produce all kinds of plastic products,it is widely used in the production of plastic chair, such as arm-chair production, coffee chair mould making, dining chair production, etc. Please send the photo of the chair. We will check the mold size and confirm the machine capacity.the material including PP/PE/ABS etc.mateirals. and other special material like PET/PVC/PS/PC etc,for different products you only need to change mold.
Product Advantage
- Compared with the traditional fixed pump and variable pump system, the noise is low, and the noise is reduced by 1/10 in normal conditions, which is more suitable for the sealed dust-free workshop.
- the injection end and temperature tracking are curve display, modify the dynamic logger parameters, display the dynamic alarm and make the operation more convenient.
- Due to the accuracy of the motor vector and controller, the sensitivity is high, only 0.5 seconds. Compared with other traditional hydraulic injection molding machines, HJS series is faster, shorter cycle and high production efficiency.
- Linder's resolution is 1/65535, more precise in control.
- access to 120 technical parameters can be stored and uploaded with normal USB drives.
- Has multiple peripheral interfaces.
- A multi-function automatic fault detection and alarm system.
- Stable performance, high efficiency, the system adopts color LCD, man-machine interface, easy to operate, fast.
- Processing program, with remote control interface, high stability of the system.
- The full digital control system adopts special controller and multi-cpu processing.
Main Products:
- MT U (C) PVC, PPR, PE series accessories and pipe injection molding machine.
- Pneumatic assisted injection molding system.
- Mt-d series transparent two-color injection molding machine.
- Other auxiliary equipment and plastic mold.
- MT series (M) series high-performance thermoplastic injection molding machine, clamping force is 60-500 tons.
- Mt-pet bottle blank high speed injection molding machine and production line.
- MT series plastic injection molding machine, clamping force from 60t to 400t.
- Mt-c series marble double color injection molding machine.
- Mt-eh series ELY-HYD injection molding machine.
Specifications
Unit | MT-I4300 | |||||
ITEMS | A | B | C | D | ||
INECTION UNIT | Screw Diameter | mm | 100 | 110 | 120 | 130 |
Screw L/D Ratio | L/D | 24.2 | 22.0 | 20.2 | 18.6 | |
Shot Size(Theoretical) | cm3 | 4320 | 5227 | 6220 | 7300 | |
Injection Weight | g | 3931 | 4756 | 5661 | 6643 | |
Injection Pressure | MPa | 220.2 | 181.9 | 152.9 | 130.3 | |
Injection Rate into Air | cm3/s | 654.5/794.9 | 791.9/961.8 | 942.4/1144.7 | 1106.1/1343.4 | |
Injection Stroke | mm | 550 | ||||
Injection Speed | cm/s | 8.3/10.1 | ||||
Screw Speed | rpm | 91/110 | ||||
CLAMPING UNIT | Clamping Force | KN | 10500 | |||
Clamping Stroke | mm | 1230 | ||||
Space Between Tie Bar | mm | 1160*1160 | ||||
Max. Mold Height | mm | 1160 | ||||
Min. Mold Height | mm | 500 | ||||
Eject Stroke | mm | 350 | ||||
Eject Force | KN | 269 | ||||
No. Of Ejector Pins | piece | 21 | ||||
OTHERS | Max. Pump Pressure | MPa | 17.5 | |||
Pump Motor Power | KW | 75 | ||||
Heater Power | KW | 75.8 | ||||
Hopper Capacity | Kg | 200 | ||||
Oil Tank Capacity | L | 1700 | ||||
Weight | T | 55 |

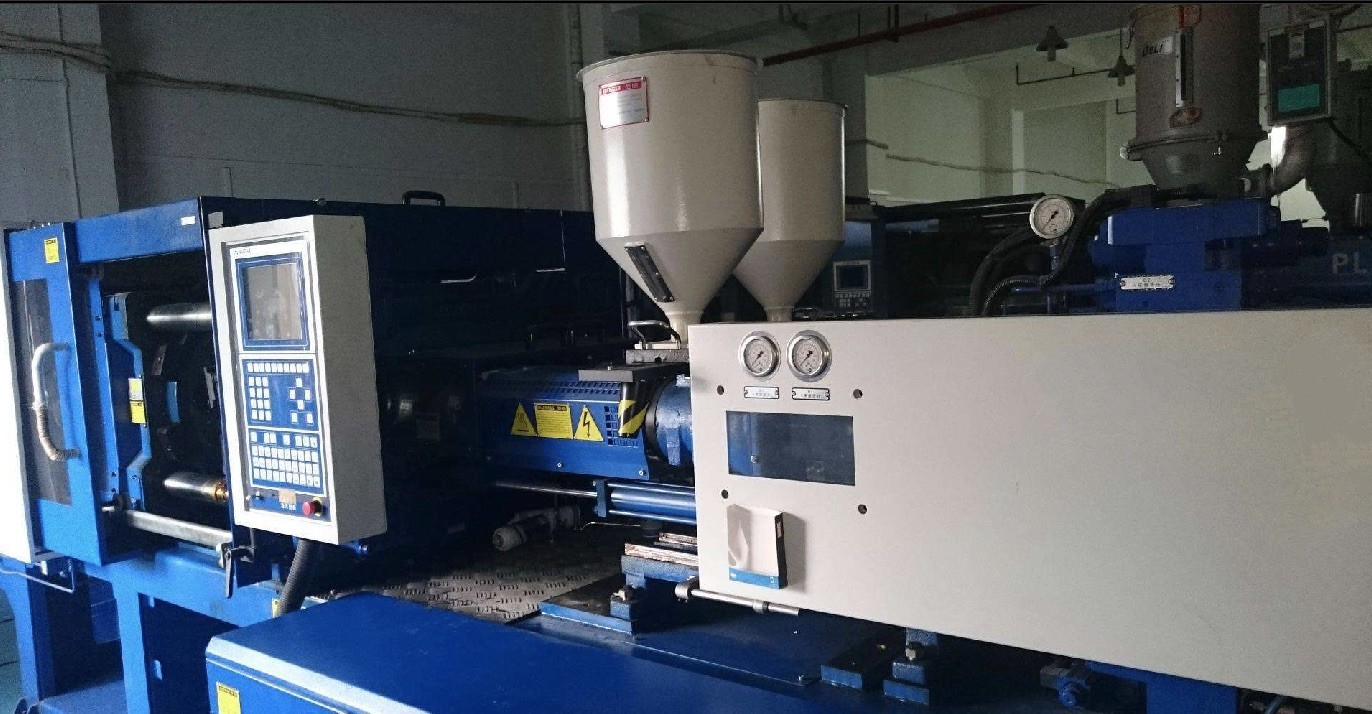

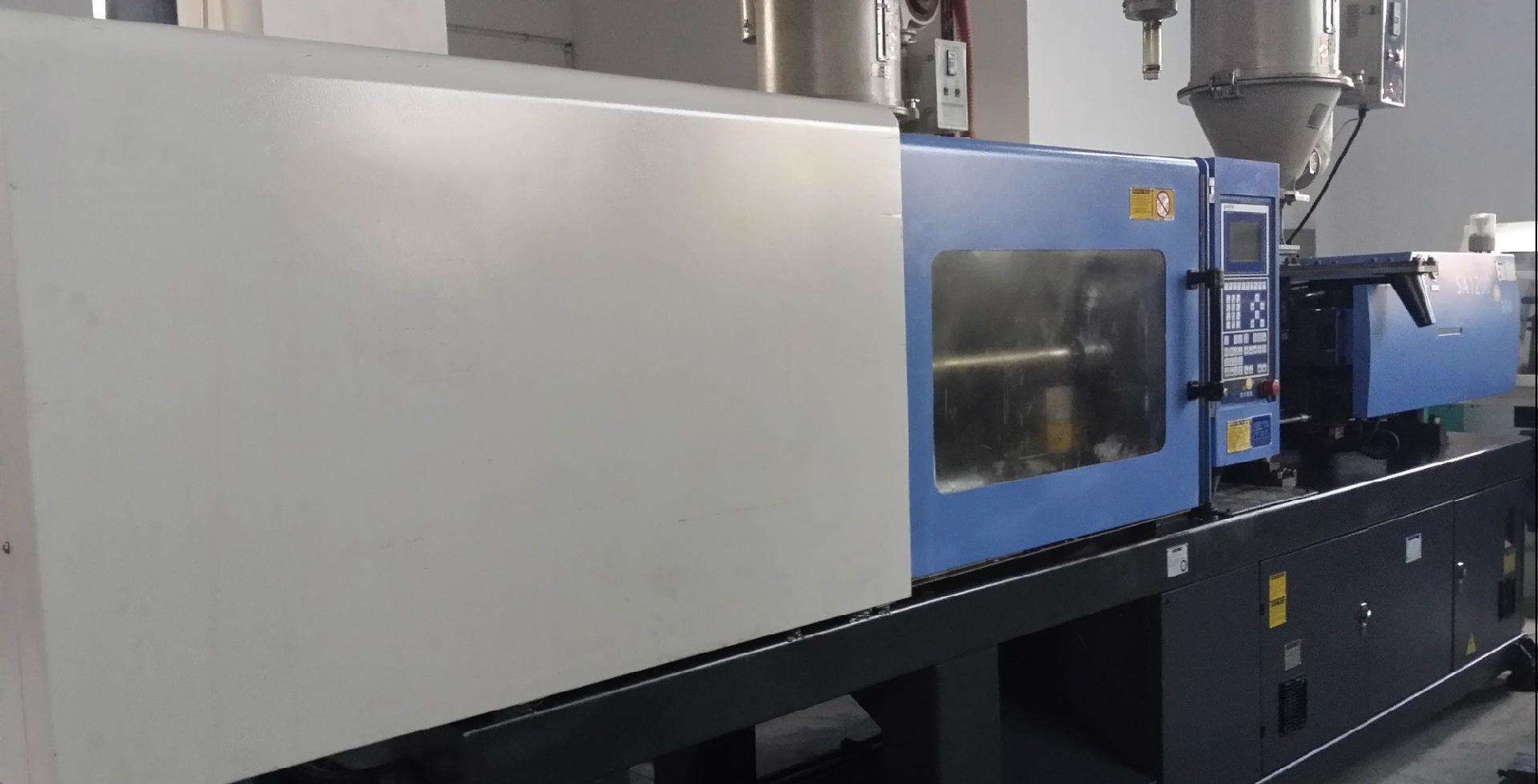

Product show
Injection unit
- Quick response checking valve
- Dual alloy 39CrMoAl screw and barrel
- High response and double cylinder injection system with automatic conversion function
- Screw back pressure control
Hydraulic unit
- Top brands hydraulic parts ensure machine fast and stable
- Visible and dischargeable oil tank, easy for hydraulic circuit maintenance
- Top brand hydraulic pipe fits with seal, no leaking
- High response hydraulic circuit,0.05S to reach the maximum power output
Electric Unit
- Top brands electric parts supporting
- High class color screen controller
- Three color tower light with alarm
- Euro standard safety standard

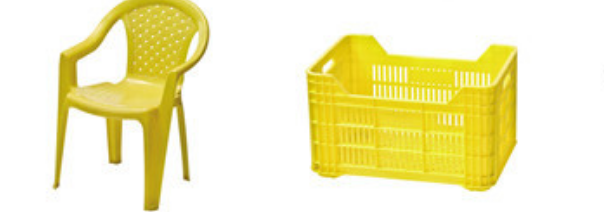

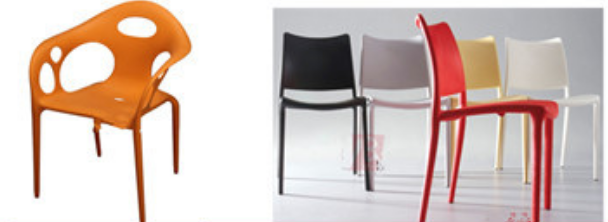

OutPut Products
-
