Condition: | New | Type: | Injection Molding |
---|---|---|---|
Brand Name: | Qualipak | Automatic: | Yes |
Certification: | CE SGS | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Machine Dimension(L*W*H): | 3.6*1.12*1.72 | Warranty: | 2 Year |

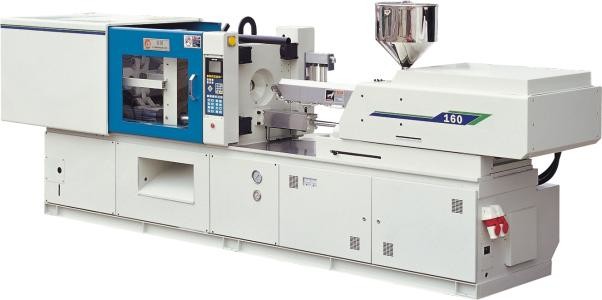

Fully Automatic Plastic injection molding machine for Plastic 5 Gallon PET Bottle, Pet Preform
Product Descriptions
- The equipment is adopted special PET screw can significantly improve the plasticizing speed and pellet weight,
- Reduce the plasticizing speed and display weight,
- Reduce the plasticizing temperature, reduce the shear performance, and achieve better transparency.·
- the servo motor control system is 30% ~ 50% energy saving, and the variable pump control system energy saving is 25% ~ 45%.·
- Our company has different models for different production and bottle shape, which can be used by customers.· the device increases the ejection force jet stroke and accepts PET molding.·
- Adopt fully enclosed safety doors to ensure sanitary and thermal control requirements.
- Equipped with hot runner system interface.·
- We provide turnkey project, customized mold, injection molding machine, PET stretch blow molding machine and auxiliary equipment, etc.Parameters of PET preformed injection molding machine
Specifications
INTERNATIONAL CLASS NO | MT-EW2013 | |||
A | B | C | ||
INJECTION UNIT | ||||
Screw diameter | mm | 35 | 38 | 42 |
Screw L/D ratio | L/D | 22 | 20.3 | 18.4 |
Shot volume(theoretical) | cm3 | 163 | 193.2 | 235 |
Injection weight(ps) | g | 148 | 176 | 214 |
Injection rate | g/s | 89 | 104 | 128 |
Injection pressure | Mpa | 219 | 184 | 152 |
Screw speed | rpm | 225 | ||
CLAMPING UNIT | ||||
Clamping force | kN | 1100 | ||
Open stroke | mm | 350 | ||
Space between tie bars(W×H) | mm | 370×370 | ||
Max.Mold height | mm | 380 | ||
Min.Mold height | mm | 150 | ||
Ejector stroke | mm | 120 | ||
Ejector force | kN | 38 | ||
OTHERS | ||||
Pump pressure | MPa | 16 | ||
Pump motor power | kW | 15 | ||
Heating power | kW | 7.5 | ||
Number of heating Segment | 3+1 | |||
Machine dimension(L×W×H) | m | 4.3×1.3×2.0 | ||
Oiltank cubage | L | 200 | ||
Machine weight | t | 3 |
Our injection molding machine is widely used application, we can produce all kinds of moulds according to customers' requirements, including.

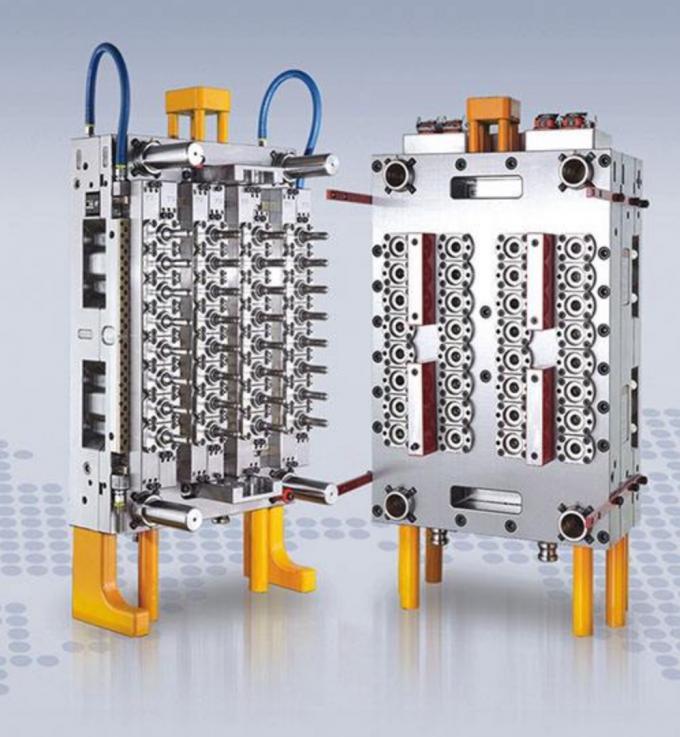

1. Drinking water, mineral water bottle mold.
2. Bottle cap mold.
3. 5 gallon bottle cap mold.
4. All kinds of shampoo, oil and sports hat mould.
5. Cosmetic bottle cap and wine mould.
6. Box crane mold PVC accessories and switch mould and spoon fork and other molds.
Flow Chart

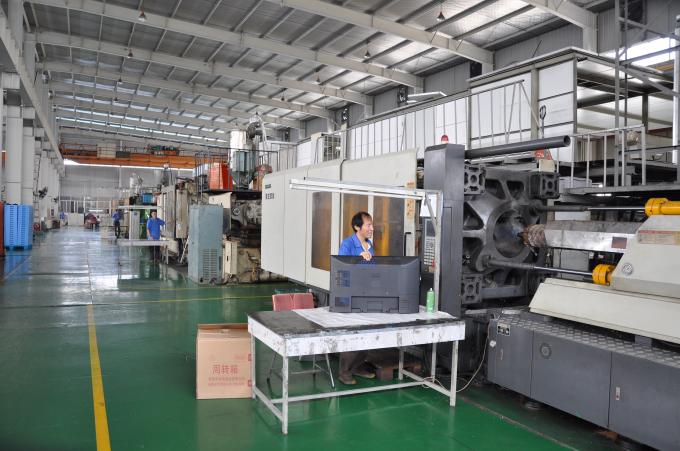

Product show
OutPut Products
-
