Click the buttonSmall Capacity Hawthorn Juice Juice Filling Machine , Apple Fruit Juice Processing Plant
This production line processing production range of 25 kg to 1000 kg per hour, we can choose according to your needs, can support eucommia ulmoides sterilization ways pasteurization, high temperature sterilization, super high temperature sterilization, packing form support the terminal packing: according to the requirement of 200 ml to 500 ml glass bottle, PET bottle, compound bag, such as the voice less investment, high efficiency, cost recovery is fast.
We're here to help:Easy ways to get the answers you need.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
HOT PRODUCTS
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
Bottled Mineral Drinking Water Production Machine / Filling Production Line
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Overview
| Condition: | New | Name: | Fruit Juice Production Equipment |
|---|---|---|---|
| Brand Name: | GY | Type: | Fruit Jiuce Production Line |
| Voltage: | 380V | Power(W): | Different |
| Dimension(L*W*H): | Different | Warranty: | 12month |
Small Capacity Howthorn Juice/Fresh Fruit Juice Production Line / Fresh A[Pple Fruit Juice Processing Plant
Product Application

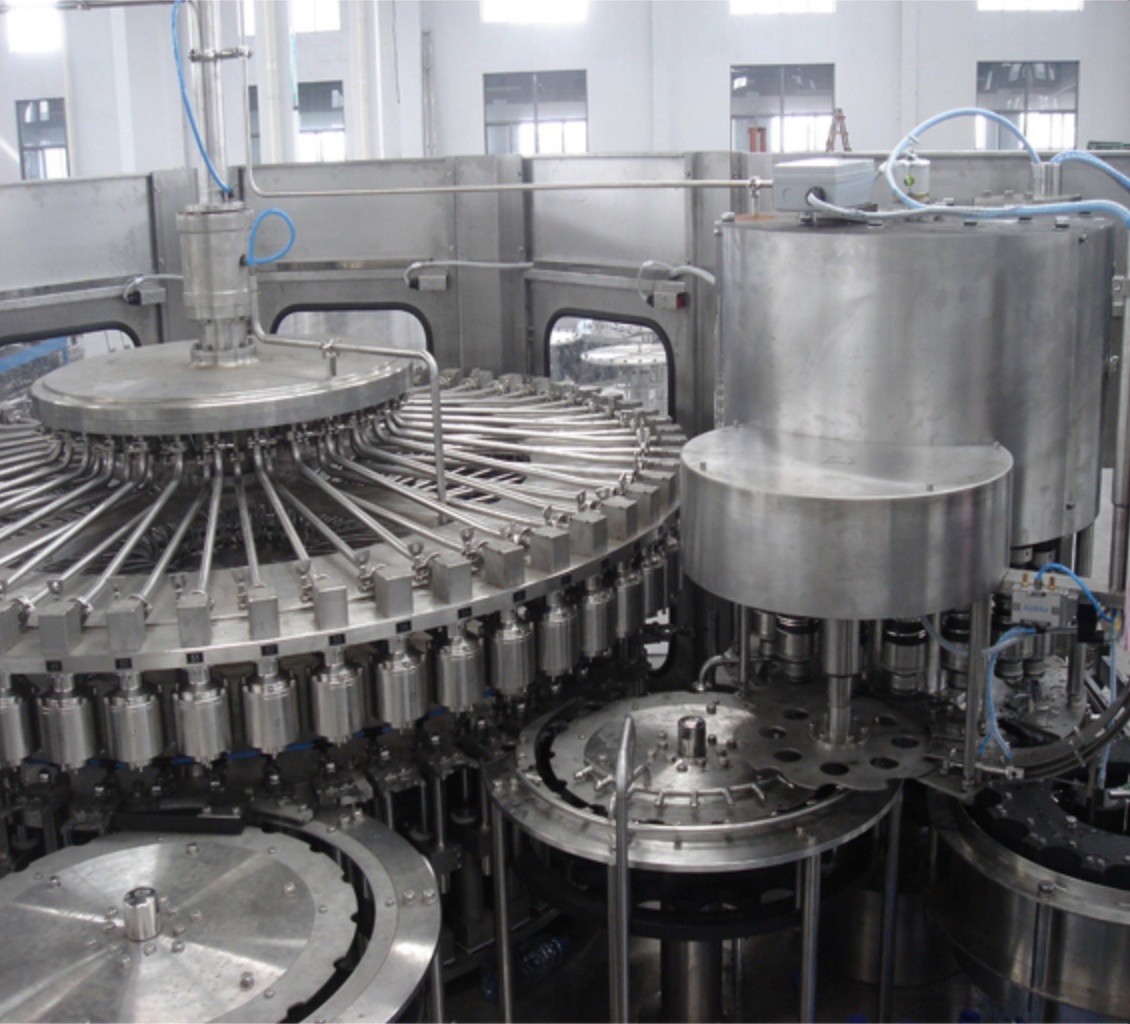

Product Show:
We are able to supply whole production line for juice ,Send us now We will make a business proposal for you with professional design.
RO water treatment system.
Blow molding system.
Automatic labeling machine.
PE film packaging machine.
ISO,CE.BV approve.
PLC+touch screen
4000-25000BPH
Product Application
This production line is suitable for the fresh fruit (the line applicable Yu Guoren tropical fruit, nuts, berries, fruits, custom) processing production of glass bottles, PET bottles, compound bag finished juice, fresh squeezed juice or juice concentrate. This production line processing production range of 25 kg to 1000 kg per hour, we can choose according to your needs, can support eucommia ulmoides sterilization ways pasteurization, high temperature sterilization, super high temperature sterilization, packing form support the terminal packing: according to the requirement of 200 ml to 500 ml glass bottle, PET bottle, compound bag, such as the voice less investment, high efficiency, cost recovery is fast.
Product Features
The apple juice production line is a combination of cleaning, filling and capping, which can be used in the production of all kinds of airless beverages. The advanced micro negative pressure filling technology is applied to this machine, and the filling is fast, stable and accurate. The beverage feedback system is well designed, the gas can be fed back, and it avoid the secondary pollution and oxidation.
Specification:
| Model | MT12-12-6 | MT18-18-6 | MT24-24-8 | MT32-32-10 | MT40-40-10 | MT50-50-15 |
| Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
| Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
| Capping No | 6 | 6 | 8 | 10 | 10 | 12 |
| Production capacity(500ml b/h) | 4000 | 7000-8000 | 10000-12000 | 12000-15000 | 18000-20000 | 23000-25000 |
| Installed Capacity(kw) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
| Overall size | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 |
5450*3210*2400
|

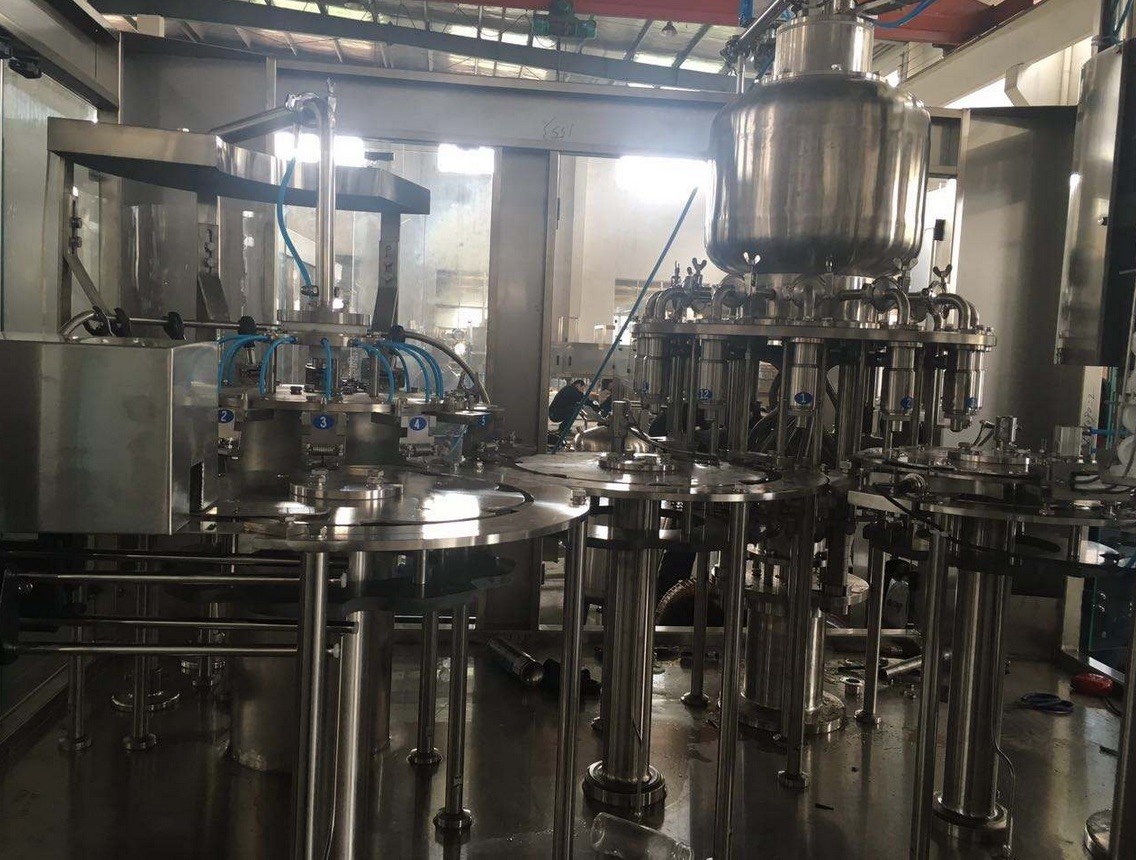

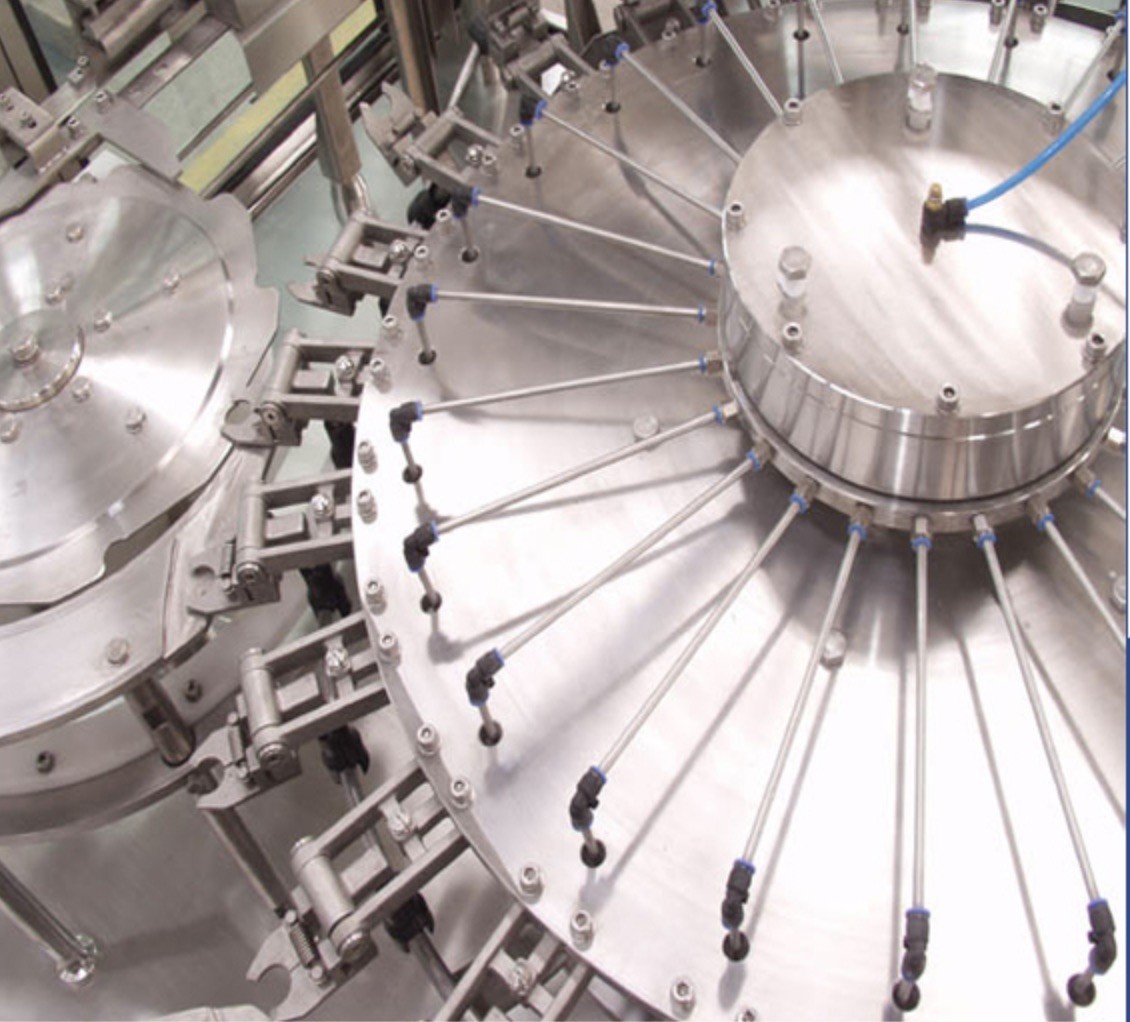

Product Show:
Flow Chart:
We are able to supply whole production line for juice ,Send us now We will make a business proposal for you with professional design.
RO water treatment system.
- System safety protection and alarm system.
- online pressure automatic self-protection device.
- Stainless steel high pressure film shell.
- online battery indicator (with stable compensation)
- system framework
- various capacity indicators, pressure indicators, solenoid valves, balance devices and pipe valve systems.
Blow molding system.
Fully automatic blow molding machine is suitable for making PET plastic containers and bottles of various shapes. Widely used in the production of carbonate bottles, mineral water, pesticide bottles, cosmetics, and hot filling bottle, etc.
Automatic labeling machine.
Dual-drive structure is a new and advanced driving device of thermal shrink, which is four-wheel drive, self-centering and four-wheel balance pressure. It can achieve smooth, stable and fast implementation of the good effect of label delivery.
PE film packaging machine.
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
Output Product
