Click the buttonHigh Capacity Fruit Juice Processing Line Automatic Orange Juice Processing Equipment

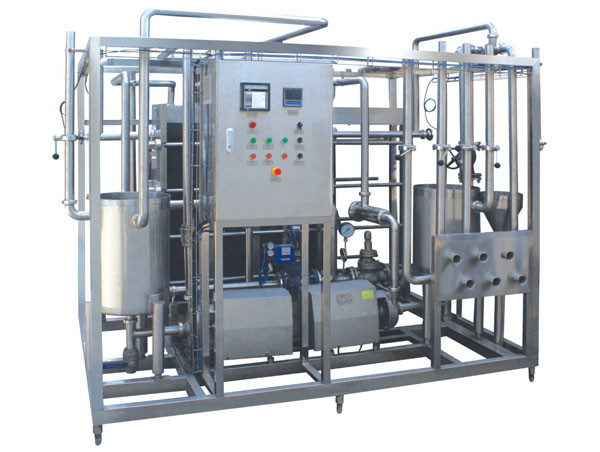

This fruit juice processing line suitable for all kinds of fruit,including organge juice,apple,coconuts etc, it is fully automatic for production ,it is able to product juice in wide range capacity. the packaging way supports bottle,cans ect,it is mde of food-grade stainless steel,which avoids the secondary pollution and durable for long time working. The supervision and the top of the wall can be selected according to the customer’s requirements.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
Type: | Orange Juice Processing Line | Application: | Beverage, Chemical, Food, Medical |
---|---|---|---|
Packaging Type: | Barrel, Bottles, Cartons | Packaging Material: | Glass, Plastic, Wood |
Dimension(L*W*H): | 2750*2180* 2400mm | Product Name: | Fruit Juice Concentrate Plant |
Filling Type: | Press Filling | Material: | Food Stage SS304 |
Bottle Type: | Plastic Screw Cap | Bottle Size: | 200ml-2000ml |
CE High Capacity Automatic Fruit Orange Juice Manufacturing Equipment / Fruit Juice Processing Line
This fruit juice processing line suitable for all kinds of fruit,including organge juice,apple,coconuts etc, it is fully automatic for production ,it is able to product juice in wide range capacity. the packaging way supports bottle,cans ect,it is mde of food-grade stainless steel,which avoids the secondary pollution and durable for long time working.
Product Features
- All electrical and pneumatic components of the production line are from world-renowned manufacturers such as Siemens and omron, ensuring the stable operation of the whole production line, convenient maintenance and long service life.
- The liquid is fully filled, so as to prevent the bottle from sinking and minimize the dissolved oxygen. (fixed level filling).
- Vacuum negative pressure filling can reduce the bubble of tea beverage and fruit juice.

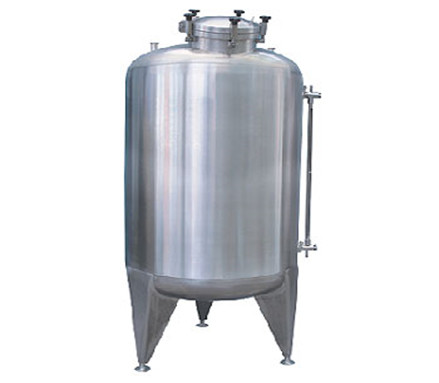

- Equipped with reasonable storage hopper, the material supply system enables the material to foam at constant pressure.
- The storage hopper is characterized by gas discharge, full seal and temperature detection. In the medium – high – speed production line, the material dispenser replaces the large liquid tank to achieve full CIP.
- Perfect CIP system. The supervision and the top of the wall can be selected according to the customer's requirements.
- The sanitary filling head system adopts the umbrella structure, the filling speed is fast, the filling temperature control system is advanced, the return box system has the automatic feeding function.
Specification:
Model | MT8-8-3 | CGFR12126 | CGFR18186 | CGFR24248 |
Number of washing, filling and capping heads | 8-8-3 | 12-12-6 | 18-18-6 | 24-24-8 |
Production capacity |
2000BPH | 4000 | 7000-8000 | 10000-12000 |
Suitable bottle specification(mm) | volume=330-2000ml | φ=50-110 H=150~340mm volume=330-2500ml | ||
Washing pressure |
2-3 | |||
Motor power(kw) | Main motor1.9kw | Main motor3.5kw | Main motor4.0kw | Main motor4.8kw |
Overall dimensions (mm) | 1900*1420*2000 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 |
Weight (kg) | 1500 | 2500 | 3500 | 4500 |
Model | CGFR323210 | CGFR404012 | CGFR505015 | CGFR606015 |
Number of washing, filling and capping heads | 32-32-10 | 40-40-12 | 50-50-15 | 60-60-15 |
Production capacity |
12000-15000 | 15000-18000 | 20000-22000 | 22000-25000 |
Suitable bottle specification(mm) | φ=50-110 H=150~340mm Volume=330-2500ml | |||
Washing pressure |
2-3 | |||
Motor power(kw) | Main motor7.6kw | Main motor8.3kw | Main motor 9.6kw | Main motor 15Kw |
Overall dimensions (mm) | 4100*2000*2400 | 4550*2650*2400 | 5450*3210*2400 | 5500*3510*2400 |
Weight (kg) | 6500 | 8500 | 9800 | 12000 |
Product Show:
![]() |
|
Filling Parts: |
![]() |
![]() |
Capping Parts: Raw material: Food Grade Stainless Steel SUS304 Capping type: Rotary screw capping Adopts Italy advanced technology, more stable and durable. |
PLC and Touch Screen Brand: Siemens Original: Japan Using international brand electrical components to ensure machines running in good condition for longer time. |
![]() |
|
|
-
