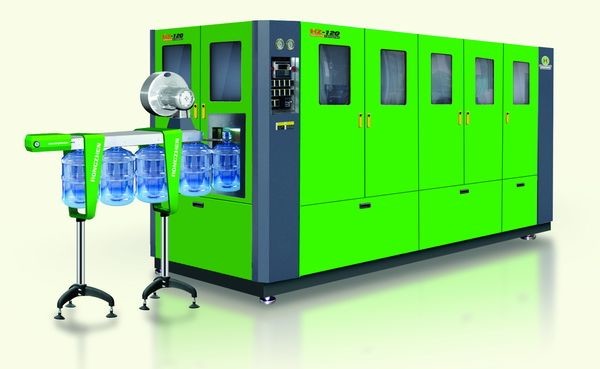

Click the button5 Gallon Plastic Bottle Blow Molding Machine 7-30L For Beer Bottle / Jar Bottle
Semi-automatic 5 gallons bottles 5 l – 30 l blow molding machine is suitable for the production of large bottle of water, beer, and other pet bottle, the device belongs to the semi-automatic equipment, the operation is simple and easy to use, need only one person can operate the whole production line, need to cooperate with injection molding machine production of pet bottle embryo, and then through the bottle blowing machine, bottle blowing
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Name: | Water Bottle Blowing Machine | Application: | Bottle |
---|---|---|---|
Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
Automatic: | No | Model Number: | MT-25L |
Machine Type: | Semi-automatic 5 Gallon Plastic Bottle Blow Molding Machine | Bottle Volume: | 10L-30L |
Bottle Neck: | 20mm-120mm | 5 Gallon Bottle Mould Material: | 45# Steel |
Air Dryer: | 2.0m3/3.0mpa |
Product Description
Semi-automatic 5 gallons bottles 5 l – 30 l blow molding machine is suitable for the production of large bottle of water, beer, and other pet bottle, the device belongs to the semi-automatic equipment, the operation is simple and easy to use, need only one person can operate the whole production line, need to cooperate with injection molding machine production of pet bottle embryo, and then through the bottle blowing machine, bottle blowing
Product Advantage
- With over 20 years of industry experience, the industry leading precision clamping system is more stable and more trustworthy.
- Internal heating system to make the body heat evenly and the bottle will shine so that the output will be higher.
- The prefabricated parts are rotated inside the heater to ensure uniform heating.
- Double benefit PLC, Germany FESTO solenoid valve.
- The steel heater is composed of the square pipe and the surface is sprayed with paint.
- The economy is simple to operate and one person can operate the machine.
- The main pneumatic components are the German FESTO brand,which is stable and efficient for long life time.
- Good after-sales service.
- The PLC panel adopts domestic (mitsubishi is optional) to make the machine stable and reliable.
- Stable performance and convenient maintenance.
- Less Energy consumption design can reduce your cost and increase revenue.
Specification:
Model: | HY-B-I | HY-B-II | HY-C-I | HY-C-II | HY-Y |
Capacity |
800PCS/H (440ml) |
1600PCS/H (440ml) |
200-300PCS/H (5L) |
545-600PCS/H (5L) |
80-90 PCS/H (19L) |
Suitable bottle material | PET | ||||
Suitable bottle size | 100-2000ml | 100-2000ml | 0.1-10L | 0.1-10L | 10-20L |
Heater | 1 set | 1 set | 1 set | 1 set | 1 set |
Oven | 1 set | 2sets | 1 set | 1 set | 1 set |
Max.heating power | 14kw | 25kw | 14kw | 14kw | 14kw |
Pressure of air supply | 2.5MPa | 2.5MPa | 2.5MPa | 2.5MPa | 3.0MPa |
Max.dimension of mould | 20*35*38cm | 20*35*38cm | 20*35*38cm | 20*35*38cm | 15mm-460mm |
Max.shifting mould dimension | 17cm | 17cm | 17cm | 17cm | 420x440mm |
Center distance between two bottles | min9cm max20cm | min9cm max20cm | min9cm max20cm | min9cm max20cm | 440mm |
Max. stretched length | 35cm | 35cm | 35cm | 35cm | 460mm |
Weight | 645kg | 845kg | 760kg | 760kg | 860kg |
main machine size | 1600*600*1610mm | 1600*600*1610mm |
1600*600*161mm
|
1600*600*161mm
|
1600*600*161mm
|
Oven | 1870*630*1445mm | 1870*630*1445mm | 1870*630*1445mm | 1870*630*1445mm | 1870*630*1445mm |

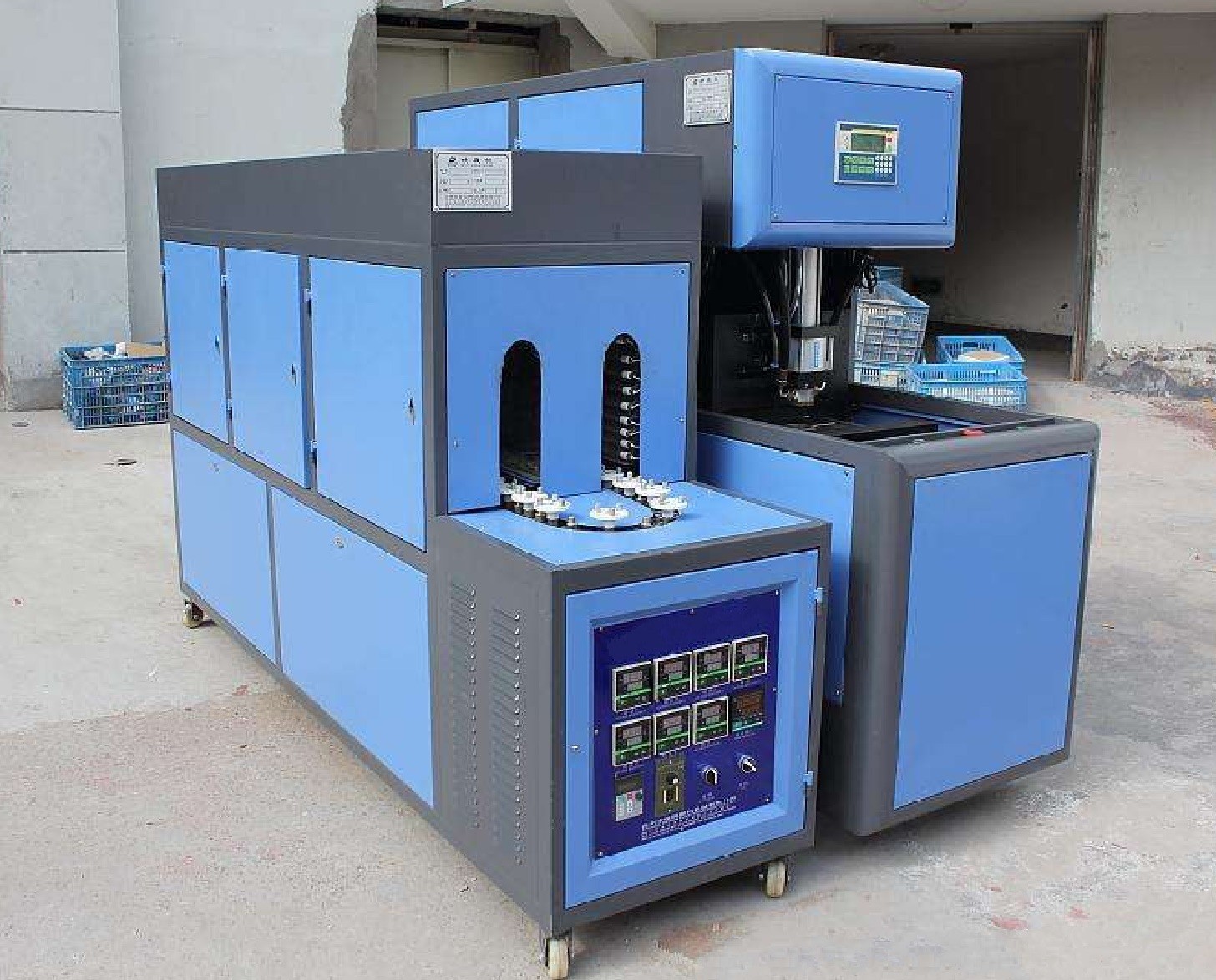

Product Show:
Output Product
Bottle Design
High quality mold:
-
