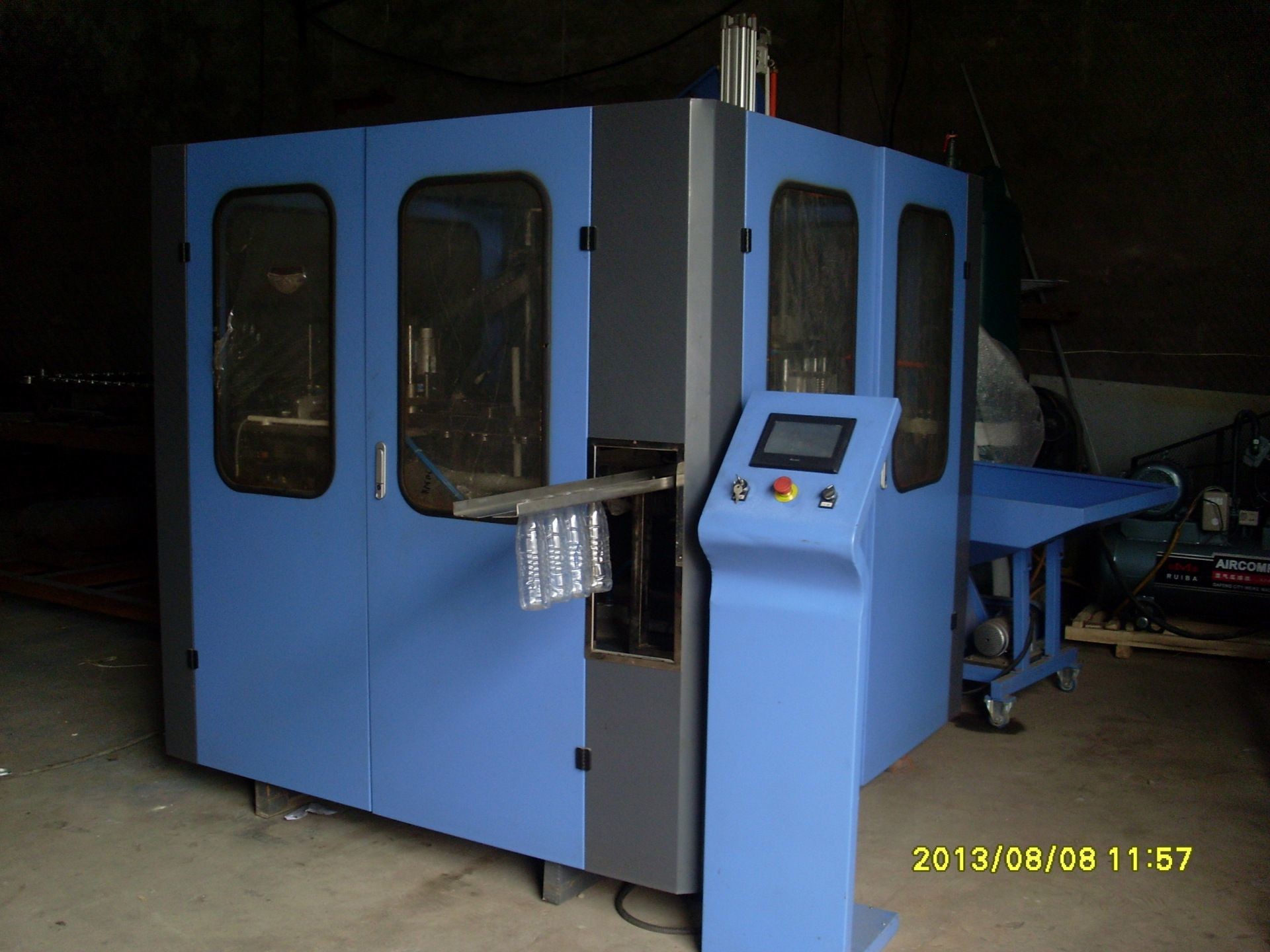

Click the button6000 BPH Water Bottle Blowing Machine / Automatic Stretch Blow Moulding Machine
this bottle blowing machine is widely used for bottle blowing in several industries,it support all kinds of Prefrom material ,including PET,PP,PE,PC,and the bottle vollume supports from 0.1L-5L,the capacity could be 2000-6000BPH base on 300-500ml
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Name: | Pet Stretch Blow Moulding Machine | Application: | Bottle |
---|---|---|---|
Automatic: | Yes | Model Number: | MT-2627(6 Cavity) |
Certification: | CE BV | Warranty: | One Year |
Output: | 6000BPH | Bottle Material: | PET,PP,PE,PC |
Bottle Volume: | 0.05-1.5L | Bottle Max Height: | 340mm |
CE 6000BPH Automatic Water Bottle Blowing Machine / Bottle Blow Molding Machine / Bottle Blower , Stretch Blow Moulding
Product Application
this bottle blowing machine is widely used for bottle blowing in several industries,it support all kinds of Prefrom material ,including PET,PP,PE,PC,and the bottle vollume supports from 0.1L-5L,the capacity could be 2000-6000BPH base on 300-500ml
Product Features
- For many bottles, our machines have different sizes which can be used in different sizes of bottles. We will recommend the most suitable equipment for your needs.
- Production range, we can pry from 100bph — 4000bph (5 gallons), 1000-10000bph (10ml-5l)
- The whole equipment adopts Siemens PLC automation control to ensure the operation process is efficient and stable.
- precision: the tolerance of each hole is less than 5mm to ensure high speed work.
- Water cooling system: no extra chiller is required.
- The parts are durable, all moving parts adopt Cooper, copper is sufer and steel, oil is automatically lubricated.
- Smart and efficient: the heated tempeatureis automatically according to the outdoor temperature, no need to manually set every moment of each day.
Specification:
Main machine parameter |
Machine Model: | ABB-6000 |
Producing capacity | 6000BPH(330ml-500ml) |
Cavity quantity: | 6 |
Bottle volume: | 0.1L-2L |
Bottle max height: | 340mm |
Bottle max diameter: | 105mm |
Main machine power: | 65KW |
Electricity supplying : | Customized |
Main machine dimension: | 2100*4550*2700mm |
Main machine weight: | 5.5MT |
Machine control: | Mitsubishi PLC |
Electrical system: | DELIXI |
we could cutomize the machien accoridng to your specificatoins.Contact us for more details now!
Product Show:
Output Product
Bottle Design
High quality mold:
Flow Chart
Our Service
1years warranty
Free installation&debugging&training service for oversea customers.
Free spares for first year!
layout design for factory.
20days delivery before first payment.
-
