Beverage Pasteurized UHT Milk Processing Line For Milk Powder / Yogurt

Carton Package Beverage Pasteurized Coconut Juice Milk Processing Plant

Complete pasteurized milk production line description:
The complete pasteurized milk production line produce several types of pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.

First the milk is preheated and standardised by in line milk fat standardisation system. The purpose of standardisation is to give the milk a defined, guaranteed fat content. Common values are 1.5% for low fat milk and 3% for regular grade milk, fat contents as low as 0.1 and 0.5 % is skimmilk.

Then the standardised milk is homogenised. The purpose of homogenisation is to disintegrate or finely distribute the fat globules in the milk in order to reduce creaming. Homogenisation may be total or partial. Partial homogenisation is a more economical solution, because a smaller homogeniser can be used.

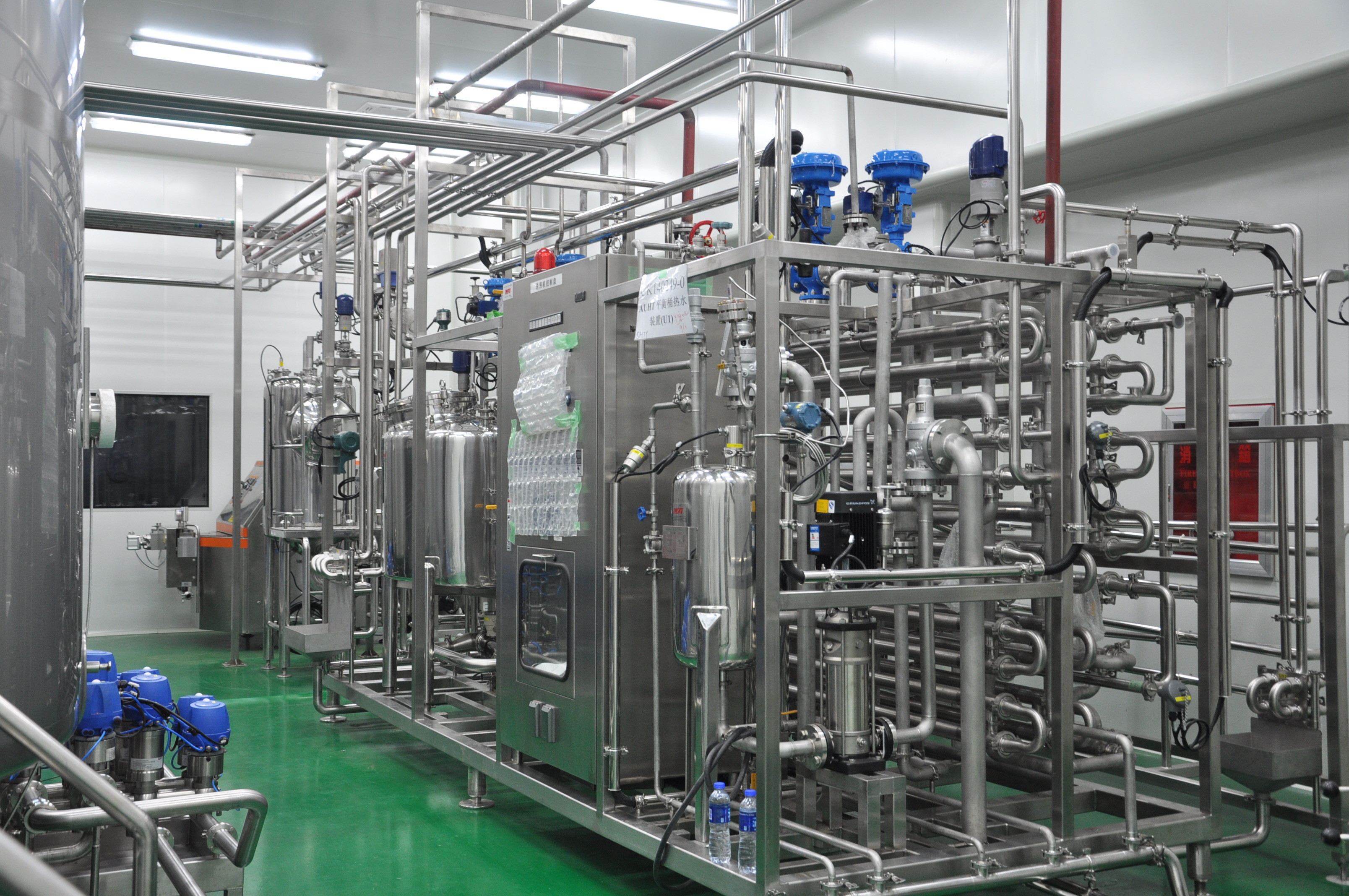

The milk, now is pumped to the heating section of the milk heat exchanger where it is pasteurised. The necessary holding time is provided by a separate holding tube. The pasteurisation temperature is recorded continuously. Pump is a booster pump which increases the pressure of the product to a level at which the pasteurised product cannot be contaminated by untreated milk or by the cooling medium if a leak occur in the plate heat exchanger. If the pasteurisation temperature should drop, this is sensed by a temperature transmitter. A signal activates flow diversion valve and the milk flows back to the balance tank. After pasteurisation the milk continues to a cooling section in the heat exchanger, where it is regeneratively cooled by the incoming untreated cold milk, and then to the cooling section where it is cooled with ice water. The cold milk is then pumped to the filling machines.

Complete pasteurized milk production line temperature and pasteurisation holding time are very important factors which must be specified precisely in relation to the quality of the milk and its shelf life requirements. The pasteurisation temperature is usually 72 – 75C for 15 – 20 sec. A common requirement is that the heat treatment must guarantee the destruction of unwanted microorganisms and of all pathogenic bacteria without the product being damaged.

Complete pasteurized milk production line technical parameters:

We have provided equipments to the following famous companies: Coca Cola, Pepsi Cola, Nestle, Wahaha, Robust, Taizinai, Bright, Danone, Mengniu, etc

Note:   milk production lines can be widely used to produce UHT milk, pasteurized milk, setted milk, stirred milk, milk drink, yogurt, ice cream, condensed milk and milk powder, and so on.
