Click the buttonLemon Juice Filling Machine Automatic / Semi Automatic Fruit Juice Bottling Plant
The range of this series of filling machines is from 3000bph to 38000bph, high capaicty and stable. Our water filling machine is specially designed for small and medium-sized factories. It has the characteristics of less water, less power consumption, small area and convenient operation. Compared with the previous generation of water cooler, improved sanitation, simplified maintenance.
We're here to help:Easy ways to get the answers you need.
Overview
| Type: | Fruit Juice Production Line | Application: | Beverage, Medical |
|---|---|---|---|
| Packaging Type: | Bottles, Cans | Packaging Material: | Paper |
| Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
| Voltage: | 110v/220v | Brand Name: | Bespacker |
| Dimension(L*W*H): | 400x300x150mm | Weight: | 5.5kg |
Highly Automatic / Semiautomatic Glass Bottle Lemon Juice Automatic Filling Machine / Fruit Juice Bottling Plant
Product Description
Product Features
Product Show
High speed filling valve to avoid leakage and accurate filling.
Our suppliers are well-known enterprises, the pneumatic components are famous brand, efficient, stable and reliable.
CE&ISO9001 certificated
Food Grade Stainless Steel avoid Secondary pollution
Product Description
This automatic three-wash filling machine is used to produce bottled fresh juice ,mineral water, purified water, beverages, alcoholic beverages and other non-natural gas liquids. This machine is suitable for PET and other plastic bottles and glass bottles. The size of the bottle varies from 250ml to 2500ml, which can be applied to a variety of bottle shapes and different rotators. The range of this series of filling machines is from 3000bph to 38000bph, high capaicty and stable. Our water filling machine is specially designed for small and medium-sized factories. It has the characteristics of less water, less power consumption, small area and convenient operation. Compared with the previous generation of water cooler, improved sanitation, simplified maintenance. It is able to complete automatic cleaning function, filling and sealing.
Product Features
- The machine can be customized and produced according to buyer's requirement.
- High speed filling valve to avoid leakage and accurate filling.
- Intelligent design, photo-electric sensor pneumatic linkage control, automatic stop protection.
- The product design emphasizes the details, pneumatic control valve, high efficiency and safety.
- Precise technical parameters, tight positioning design, convenient adjustment, suitable for the packaging of all sizes of bottles.
- Our suppliers are well-known enterprises, the pneumatic components are famous brand, efficient, stable and reliable.
- Program logic controller (PLC), easy to change dimensions or modify parameters.
- Intelligent contact screen, humanized design, simple operation.
Specifications
| Model | CGFR8-8-3 | CGFR16-12-6 | CGFR18-18-6 | CGFR24-24-8 | CGFR32-32-10 | CGFR40-40-10 |
| Rinsing Head No | 8 | 16 | 18 | 24 | 32 | 40 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 | 40 |
| Capping Head No | 3 | 6 | 6 | 8 | 10 | 10 |
| Rated Capacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH | 15000-18000BPH |
| Overall Size | 1400*1520*2000 | 2100*1300*2300 | 2440*1900*2300 | 2750*2180*2400 | 4000*2100*2300 | 4550*2650*2300 |
| Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T | 12.0T |
| Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw | 8.3Kw |
| Rated Voltage | 380V | 380V | 380V | 380V | 380V | 380V |

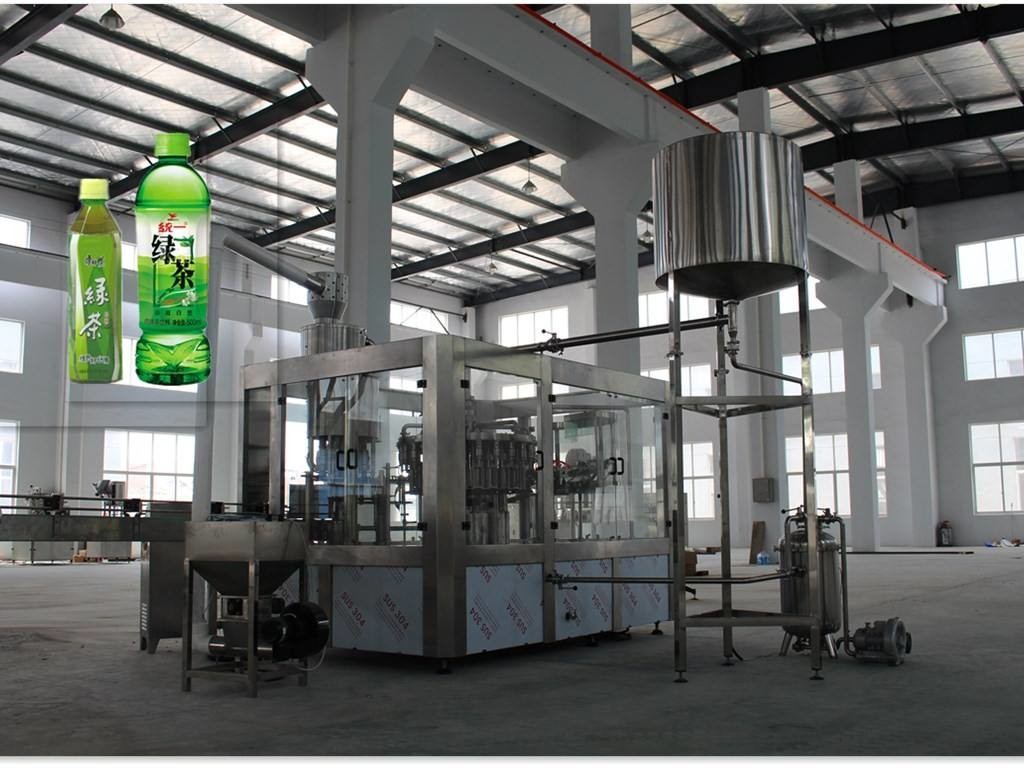

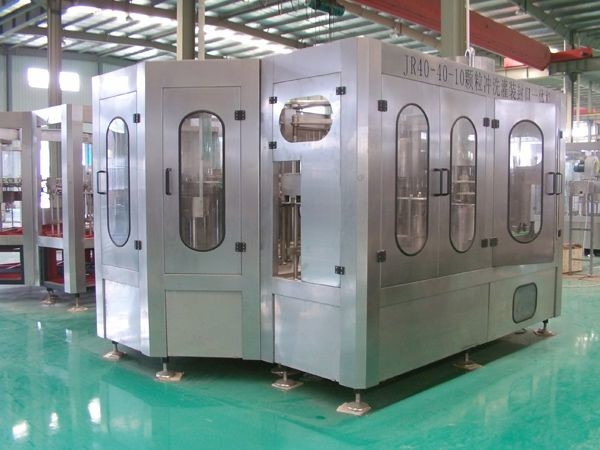

Product Show
Made of Stainless Steel is durable for long time working(almost over 10years working time with good maintenance)
