Click the button300 ML -1000 ML Hot Fill Bottling Equipment , Plastic Bottle Orange Juice Production Line
This machine is mainly used for juice filling. The machine has the function of cleaning, filling and sealing, it has the thermal filling temperature control system, and realizes the whole process of automation, which is suitable for the filling juice and tea of polyester bottle and plastic bottle. Suitable for all kinds of parts, convenient, quick and adjustable. The new micro – negative pressure filling is adopted. Machines are more profitable than machines of the same size.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
Type: | Fruit Juice Production Line | Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
---|---|---|---|
Packaging Type: | Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch | Packaging Material: | Plastic |
Driven Type: | Electric | Dimension(L*W*H): | Model Specific |
Weight: | 2500KG To 6000KG, 2500KG To 6000KG | Certification: | CE |
Bottle Tall: | 150 To 340mm | Bottle Diameter: | 50 To 110mm |
OEM: | Available | ODM: | Available |
300 ML -1000 ML Hot Fill Bottling Equipment , Plastic Bottle Orange Juice Production Line
Product description
This machine is mainly used for juice filling. The machine has the function of cleaning, filling and sealing, it has the thermal filling temperature control system, and realizes the whole process of automation, which is suitable for the filling juice and tea of polyester bottle and plastic bottle. Suitable for all kinds of parts, convenient, quick and adjustable. The new micro – negative pressure filling is adopted. Machines are more profitable than machines of the same size.
- PLC control, easy to operate.
- The part of the contact liquid is made of 316L stainless steel, which meets the requirements of GMP.
- The machine has three functions: washing,filling, and capping machine. Peristaltic pump, high precision, easy to adjust.
- No bottles, no filling.
- This machine is easy to operate,it can be equipped with the protective cover and the blocking device according to the customer's requirement.
- It is suitable for plastic bottles and plastic bottles of various shapes: PP, PE, PVC, glass bottle, mould bottle, etc.,
- Pneumatic components are brand name, stable and reliable.
- Program logic controller (PLC), easy to change dimensions or modify parameters.
- The machine can be customized according to cusotmers need.
- The positioning design is compact, easy to adjust and suitable for the packaging of bottles of all sizes.
- Pneumatic control valve, efficient and safe.
Model | MT16/12/6 | MT18/18/6 | MT24/24/8 | MT32/32/10 | MT40/40/12 |
Rinsing Head | 16 | 18 | 24 | 32 | 40 |
Filling Head | 12 | 18 | 24 | 32 | 40 |
Capping Head | 6 | 6 | 8 | 10 | 12 |
Bottle Size | H: 130-300mm | H: 150-340mm, D: Φ50-110mm | |||
Power | 2.4KW | 3.5KW | 4.5KW | 5.4KW | 6.4KW |
Weight | 2400KG | 3000KG | 4000KG | 5000KG | 3000KG |
Packing Size(L*W*H)(mm) | 2100*1800*2300 | 2200*2000*2300 | 3300*2100*2800 | 3000*2600*2800 | 4700*2950*2800 |
Power | 2.5KW | 3.5KW | 4.5KW | 5.6KW | 6.3KW |

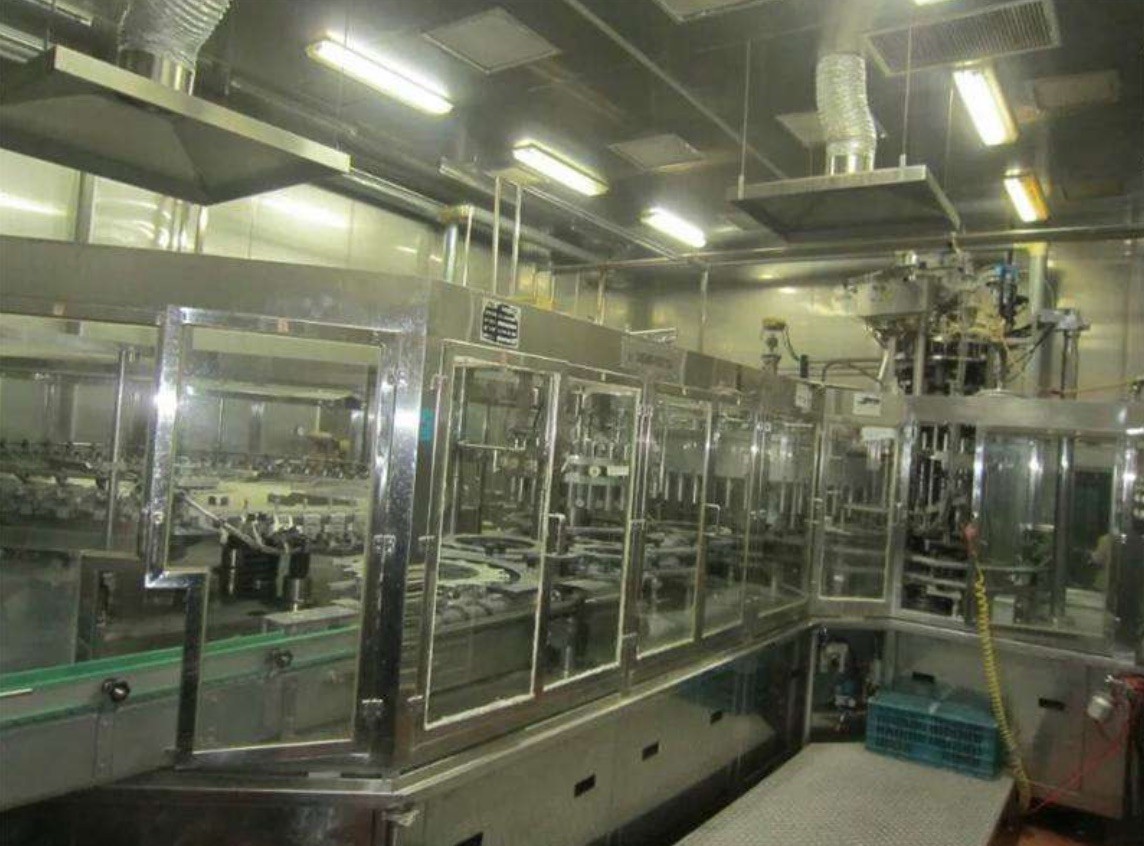

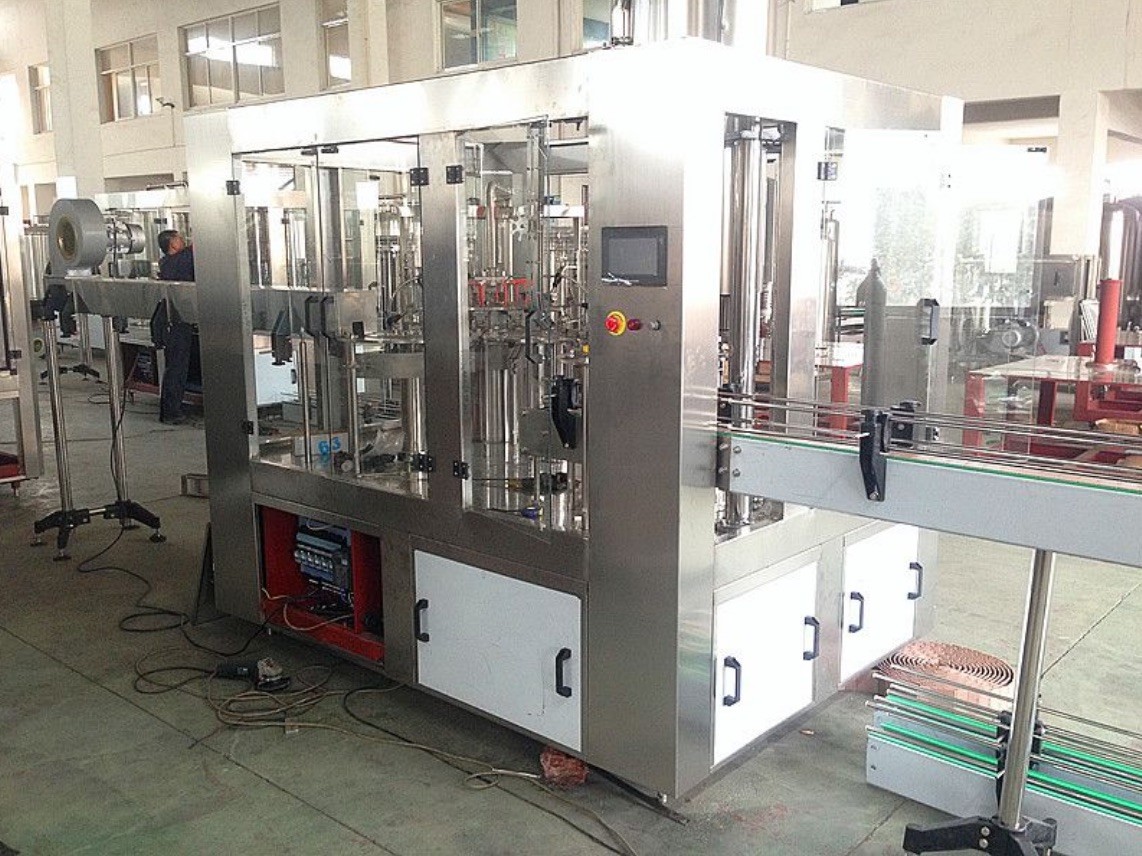

Product show
Service
- One year warranty and lifetime maintenance. In one year, we will send the accessories to you free of charge if there are any faulty parts.
- In a month, if there is a big problem with the machine, we'll send you right away.
- Within one year, if you send the equipment back to repair, we will be responsible for the repair, including the accessories. Both of them are free.
- in the following year, we provide repair machines, but we need to change parts for cost price.
- If the buyer has any problems, our technical department, our service, or we can send
- We have professional engineers to help you debug the machine and training your staff.
- We have a team of maintenance engineers to provide after-sales service.
-
