Automatic Fruit Juice Filling Machine Fruit Beverage Monoblock Small Glass Bottle

This machine is widely used for filling production  of fruit juice,efficient and stable,durable for long time working.



Advantage of juice filling machine

The machine is designed more compact, more stable of controlling system, adopts with German FESTO, easy to operate and high automatically.

Using high accuracy and high speed filling valve.

Liquid level is more accurate without water loss, ensuring the quality of filling.

Capping heads use magnetic torque device, ensuring the capping effect and protect the bottle cap.

Using frequency conversion motor of German SEW, can be more convenient to adjust the capacity.

Controlling system has the liquid level control function, lack of cap detection alarm function, automatic alarm for card bottles function etc.

Using advanced touch screen control, can realize human-machine conservation.



Features of juice filling machine

•  This innovative design has also the effect of the machine being very easily accessible for maintenance purposes and that it can be expanded at any time without conversion, for example with an additional cap feeder;
• The OMRON PLC system offers the ideal solution for conductive non-carbonated fill products, as the fill quantity is measured precisely by an inductive flow meter;
• All filling process steps can be programmed easily and individually – adjusted to the product to be filled and to the container.
• Product feed pipes connect the product tank with the filling valves. In each connecting pipe, there is an inductive flow meter which measures the quantity of the product flowing through the pipes via the product’s conductivity;
• 5. The filling process begins after centring of the container and is effected by the free-jet method;
• 6. In order to be able to cope with the different bottles and products to be filled, one or two filling speeds are available. Non-carbonated beverages are filled pressureless in multi-chamber operation;

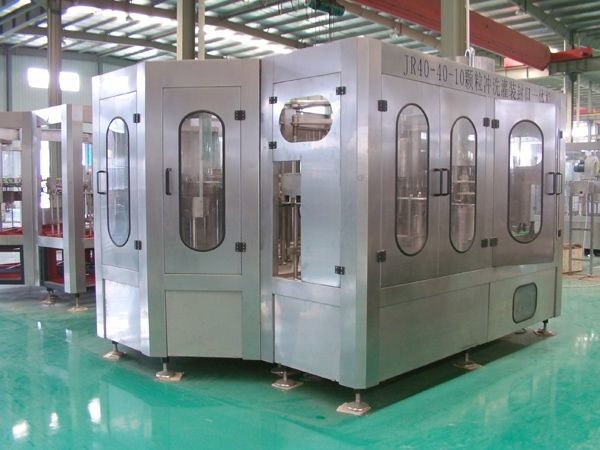

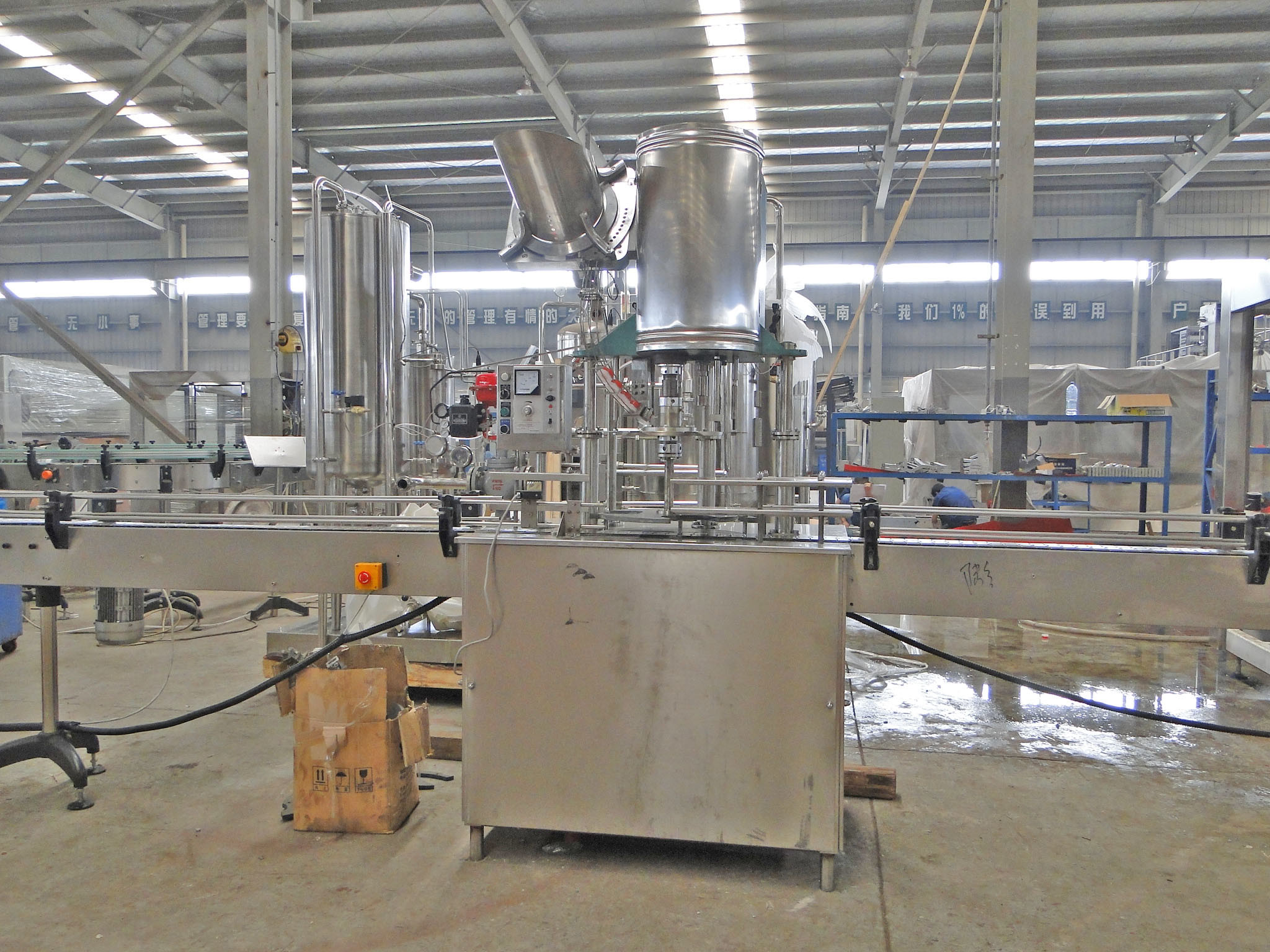

Images of juice filling machine

The filling machine combines washing,filling,capping into one working table.The production rate of this machine could reach to 6000 bottles per hour.

Washing part:Washing part moves by a frame in the transmission system through the gear transmission.

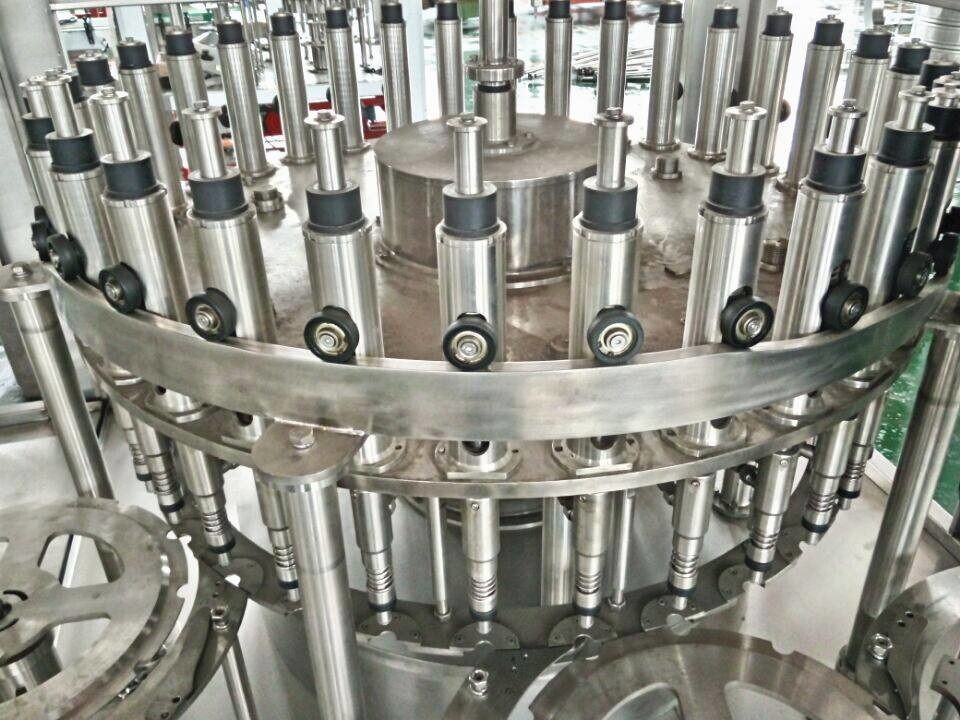

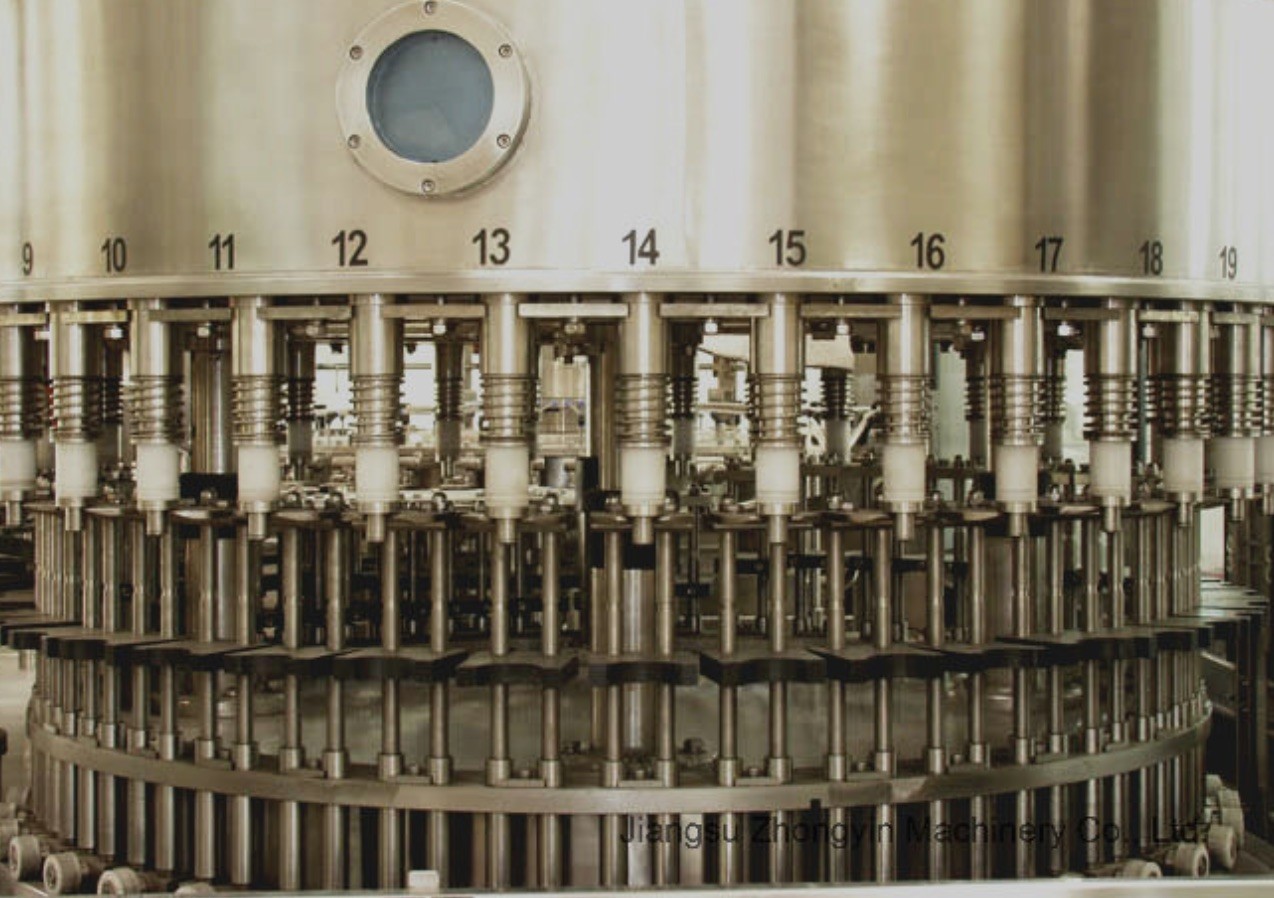

Filling part:The filling valve structure design is reasonable, the filling quantity is accurate.

Capping part: The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.

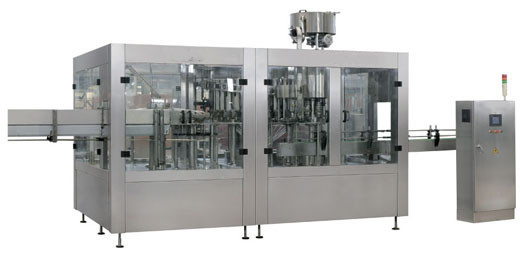

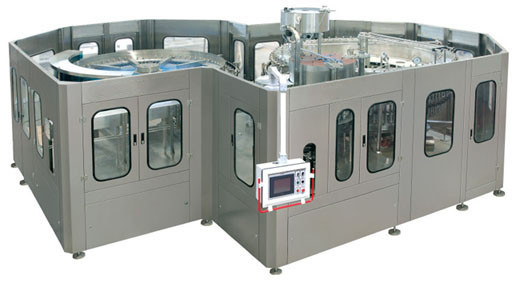

3 in 1 unit:





Technical parameter



Model:	MT18-18-6	MT24-24-8	MT32-32-8	MT40-40-12
capacity :500ml	8000BPH	12000BPH	15000BPH	18000BPH
overall size:(mm)	2300*1800*2350	2800*2200*2350	3600*2650*2350	3800*2950*2400
weight: (kg)	3500	4500	5500	6500



Sevice

• We supply 2 years warranty for oversea customers,spares will be provided for free during first 2 year.
• If you have any problem,plesae contact with us directly.
• We provide installation, debugging,training for customers ,engineers will go to your factory for service.
• Quick responce for communication.
