Click the buttonBottled Mineral Drinking Water Production Machine / Filling Production Line
The production line of liquid beverage filling machine adopts suspension type bottleneck clamping design to keep the bottle stable at high speed. The unique convenient parts are designed for various bottle shapes, and the replacement parts can meet the production needs of different types of bottles.
In order to meet the needs of food safety, we used stainless steel grab in design, and there is no contact between the grab and the area above the bottle thread.
The nozzle in the grab can guarantee the full cleaning of the inside of the bottle.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Filling Machine | Condition: | New |
---|---|---|---|
Application: | Beverage | Packaging Type: | Bottles |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 220V/380V |
Power: | 4.8kw | Place Of Origin: | Qualipak, China (Mainland) |
Brand Name: | Qualipak | Model Number: | MT 32-32-8 |
Dimension(L*W*H): | 2900*2100*2400mm | Weight: | 3500KG |
Certification: | CE/SGS/ISO9001 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Capacity: | 10000BPH-30000BPH | Suitable Bottle: | 0.3-2.0L |
Bottle Height: | 150-320mm | Control: | Advanced PLC Touch Screen Control |
Appliable: | Round Or Square Shape Of Bottle | Material: | Food Stage SS304 |
Filling Type: | Gravity Pressure Filling | Warranty: | 2 Years |
Washing Heads: | 32 |

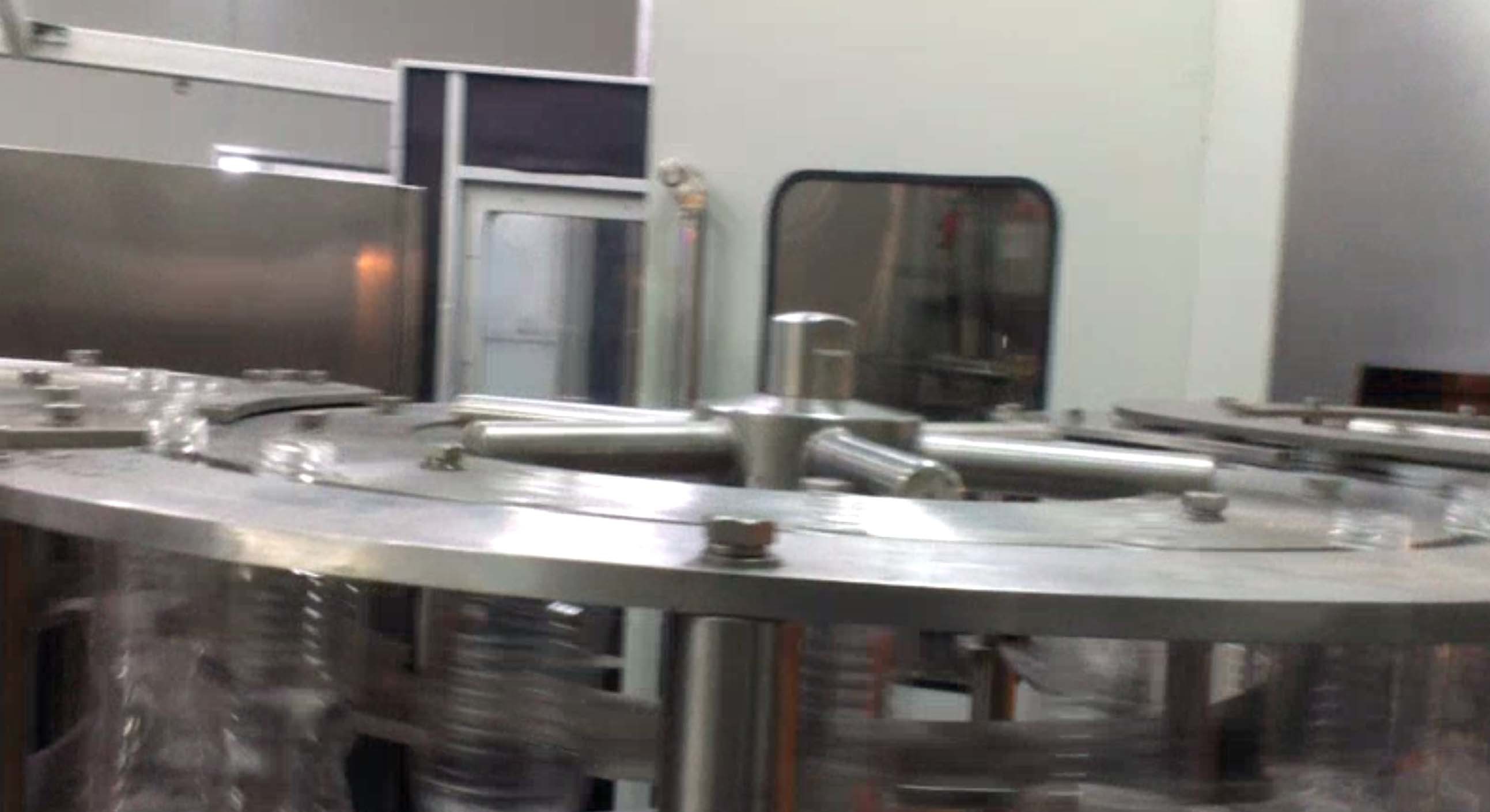

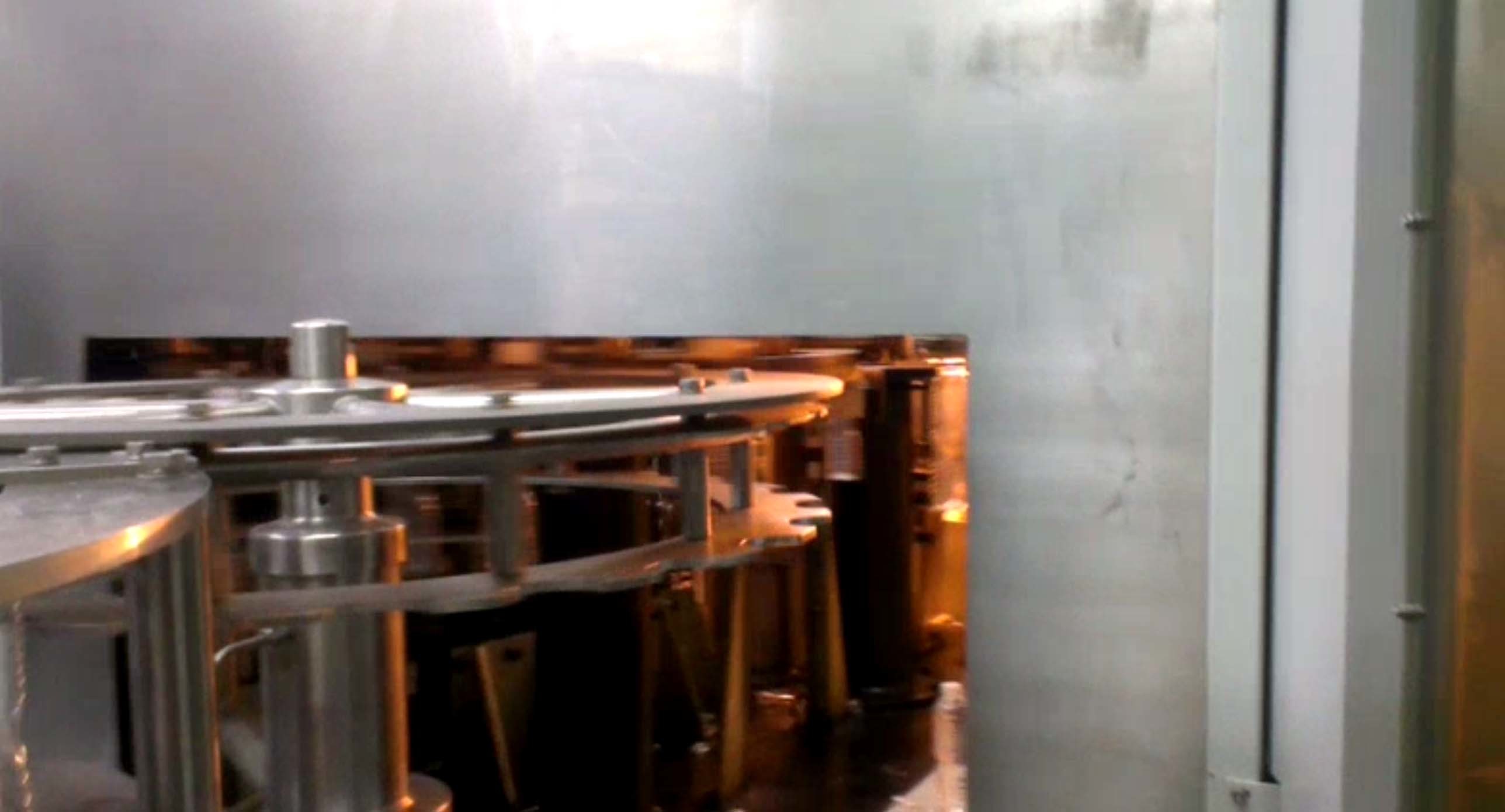

Automatic Bottled Mineral Drinking Water production Machine / Filling Production Line
Advantage
- The production line of liquid beverage filling machine adopts suspension type bottleneck clamping design to keep the bottle stable at high speed. The unique convenient parts are designed for various bottle shapes, and the replacement parts can meet the production needs of different types of bottles.
- In order to meet the needs of food safety, we used stainless steel grab in design, and there is no contact between the grab and the area above the bottle thread.
- The nozzle in the grab can guarantee the full cleaning of the inside of the bottle.
- The liquid beverage filling machine adopts advanced gravity filling technology, and the filling is fast, stable and accurate.
- The use of magnetic torque rotating cover, rotating cover and power stepless adjustable. The cover is reliable and there is no upper limit for damage.
- Advanced technologies such as human-interface touch screen and PLC program control are used in the beverage filling machine.
- The parts directly contact with the liquid drink filling machine are made of high quality stainless steel. The cor electrical components are from famous international companies, such as MITSUBISHI, OMRON and so on.
Flow chart: (pure water filling machine):
- bottle production line – injection molding machine – bottle blowing machine – PET bottle
- Water treatment system raw water – pump – quartz sand filter – carbon filter – soft water – reverse osmosis ultraviolet sterilizer – ozone generator – output tank
- filling part bottle machine — fan, cleaning, filling, and sealing 3IN1 – light Checker – blower, printer, Lableing – machine – packer – stock
Parameters
Model | MT16/16/5 | MT24/24/8 | MT32/32/8 | MT40/40/10 |
Rinsing head | 16 | 24 | 32 | 40 |
Filling head | 16 | 24 | 32 | 40 |
Capping head | 5 | 8 | 8 | 10 |
Capacity | 1500BPH | 18000BPH | 20000BPH | 28000BPH |
Dimension | 2850×2150×2750 | 2880×2180×2750 | 3380×2580×2750 | 4430×3280×2750 |
Power | 2.2KW | 2.2KW | 3KW | 7.5KW |
Serivce
- 1. We will use a standard wooden box to deliver the goods on time to ensure that you can get the machine quickly.
- 2. We will arrange for the engineer to install, debug, and train service to your factory
- 3. we provide free warranty for one year, replacing parts
-
