3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
Bottled Mineral Drinking Water Production Machine / Filling Production Line
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Overview
| Type: | Filling Machine | Application: | Beverage |
|---|---|---|---|
| Packaging Type: | Barrel, Bottles | Packaging Material: | Plastic |
| Driven Type: | Electric | Voltage: | 380V 50Hz |
| Power: | 10.5Kw | Model Number: | CGF24-32-8 |
| Material: | SS304 |

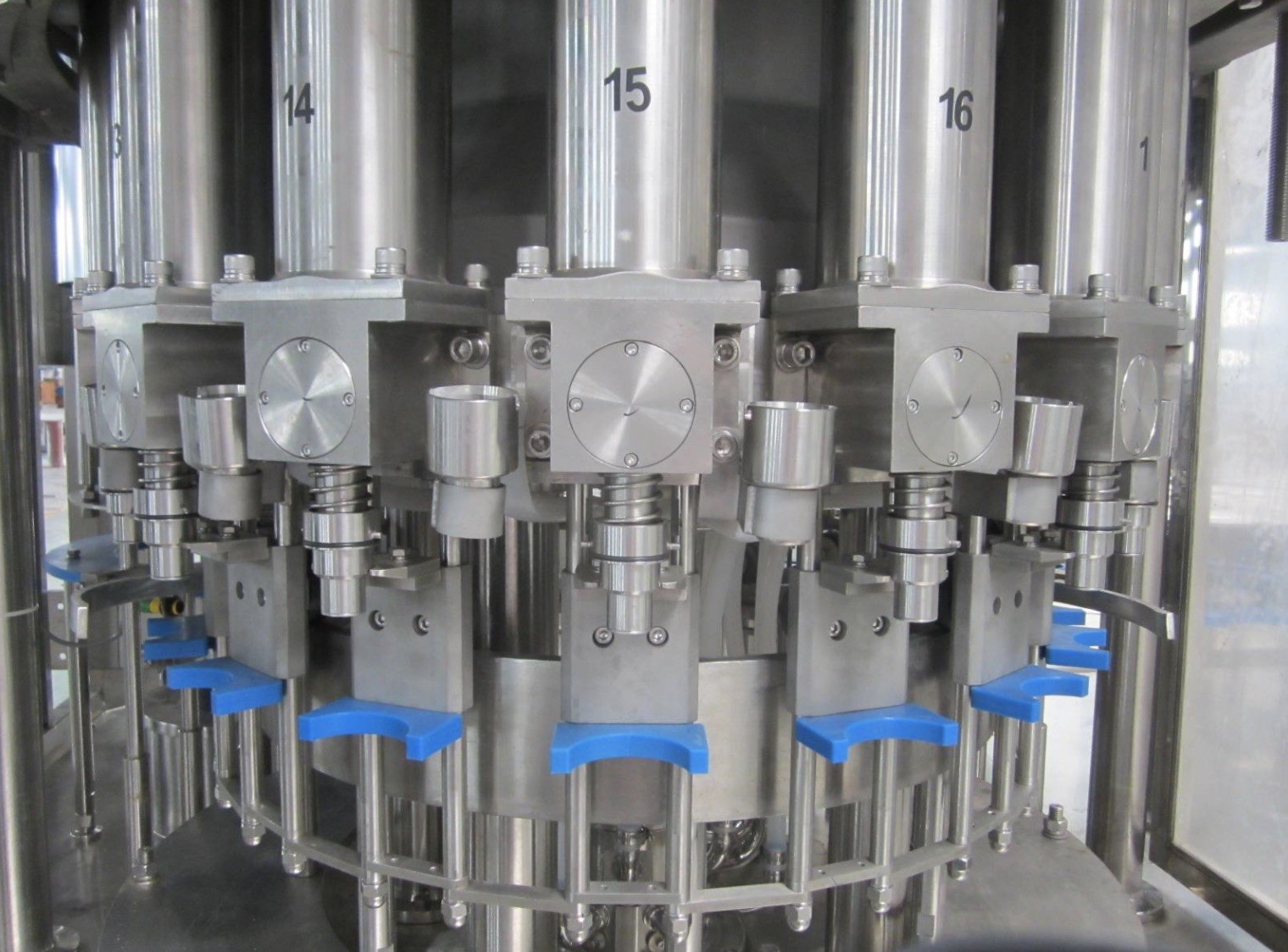

3-In-1 Automatic Plastic Bottle Drink Beer Green tea Black Tea / Ice Tea Production Line / Filling Line
Germany Tech whith Chinese Price
Bottle-neck clamping design,suitable for different bottle shapes
Micro-Pressure technology which makes the filling process faster and more stable without losing pin-point filling accuracy.
ISO9001 and CE Certificated
Product Description
Automatic juice production Line /machinery/equipment is mainly used for hot filling including green tea, black tea, and oolong tea and juice drinks such as tea filling sealing, the machine integrates washing, filling and capping. The design is scientific and reasonable. It has a gorgeous appearance, low energy consumption, high speed, convenient operation and maintenance, and relatively low cost of automation. It is the ideal equipment for domestic and foreign beverage manufacturers.
The specification
| Model | DCGF18/13/6 | DCGF18/18/6 | DCGF36/36/8 | DCGF33/33/13 | DCGF65/65/13 | DCGF50/50/15 |
| Washing head | 18 | 18 | 36 | 33 | 65 | 68 |
| Filling head | 18 | 18 | 36 | 33 | 65 | 68 |
| Capping head | 6 | 6 | 8 | 13 | 13 | 13 |
|
Production Capacity: 500ml(bph) |
6500 | 6000 | 10000 | 16500 | 17000 | 36500 |
| Suitable Bottle height(mm) | 150-365 | |||||
| Suitable Bottle diameter(mm) | 60-95 | |||||
| Suitable cap diameter (mm) | 50-110 | |||||
| Installed capacity(KW) | 3.13 | 3.86 | 3.86 | 5.6 | 6.3 | 7.3 |
| Overall Size L×W×H(mm) | 3650×1870×3350 | 3670×1970×3350 | 3865×3170×3350 | 3700×3570×3350 | 3800×3950×3650 | 6500×3650×3650 |
| Total Weight:(kg) | 3500 | 3000 | 6500 | 5000 | 6000 | 7000 |
We could customize the machine according to the your specification,contact us for more details.

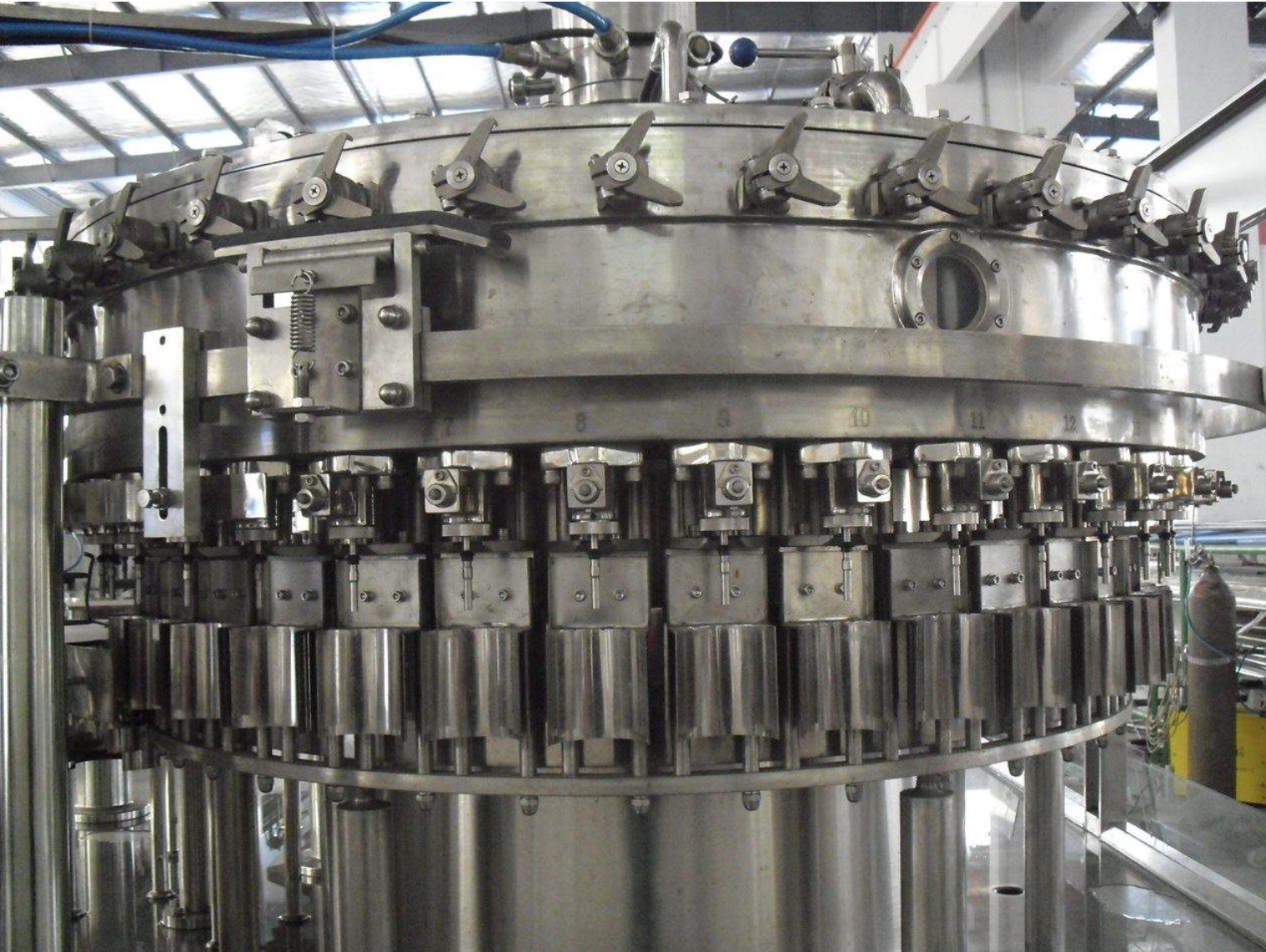

Product show

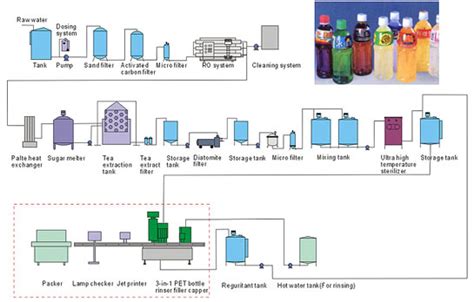

The flow chart of whole production line
We supply turn-key project for whole productio line,contact us ,we will send you details
Packaging & Delivery
Inorde to make sure that our customer will receive the brand-new machine, we will pack the machine in standard wooden case in 40 inch container,we will delivery on time.
| Packaging Details: | Standard wooden case |
|---|
| Delivery Detail: | 20-30 days |
|---|
this is how we pack the machine:
Certificate
We have passed CE&ISO9001 certificate,and we have strict quality control team for testing the machine,including the material of the machine,processing,production,time management and quality Control system.this makes our machine are qualified.
Contact Us
Send us inquery now !we will send you best quotation with latest promotion in 12hours!
Inquiry
