High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle

This machine is mainly used for filling carbonated drinks. It integrates washing, filling and sealing on a single machine. It belongs to one machine with multiple functions. It is suitable for different bottles of PET or other plastic bottles. Compared with traditional cleaning, filling and capping equipment

We're here to help:Easy ways to get the answers you need.

Live Chat

Click the button

Send E-mail

Click the button

Products

HOT PRODUCTS

Overview

Type:	Carbonated Drink Filling Machine	Application:	Beverage, Chemical, Food, Carbonated Beverage
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Material:	SUS 304
Bottle Size:	0.1-2.5L	Suitable Bottle:	Plastic,glass
Capacity:	3000-40000bph	Warranty:	1 Year

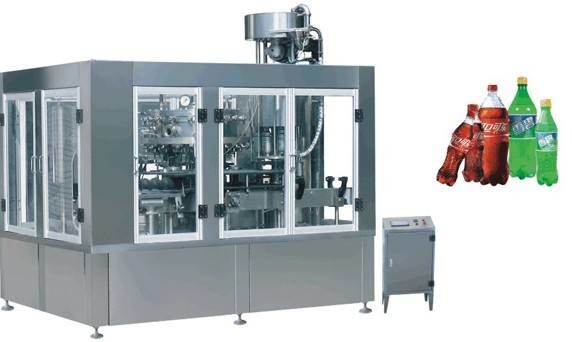

High Capacity Automatic Carbonated Drinking Production Line Machine for 500ml-2500ml Bottle

Applciation :

This machine is mainly used for filling carbonated drinks. It integrates washing, filling and sealing on a single machine. It belongs to one machine with multiple functions. It is suitable for different bottles of PET or other plastic bottles. Compared with traditional cleaning, filling and capping equipment,

Advantage:

it has the following advantages:

The technology of direct connection between the air supply and the feeding wheel is adopted; the screw and the conveyor chain are cancelled, so that the shape of the bottle becomes easier.
Because it is a multi – use machine, so the energy consumption is much smaller than that of the traditional equipment.
The integration of the 3. functions reduces the spares, so it is more economical and practical.
Operation less manual, do not need more manual like the traditional line, usually 3 people can operate a production line.
Impact structure ,it reeduce the space occupy
Electrical components and core components are from the international well-known brand, to ensure the whole line of problems, high efficiency.
Bottle driving uses card bottleneck technology, For different bottle shape filling,no need to adjust the level of equipment, only neet to change the bending plate, wheel and nylon parts.

Technical parameters

Model	Washing heads	Filling heads	Capping heads	Capacity (bottles/hr)	Motor power	Overall dimension (mm)
CFG14-12-4	14	12	4	2000 – 5000	1.5 kW	2500x1880x2300
CFG16-16-5	16	16	5	5000 – 5000	2.0 kW	2800x1900x2300
CFG18-18-6	18	18	6	5000 – 7000	2.2 kW	2800x2150x2300
CFG24-24-8	24	24	8	8000 – 12000	3.0 kW	3100x2450x2300
CFG32-32-10	32	32	10	12000 – 15000	4.0 kW	3680x2800x2500
CFG50-50-10	50	50	10	16000 – 20000	7.5 kW	4600x1800x2850
CFG50-50-12	50	50	12	20000 – 25000	10.0 kW	4500x3300x2350

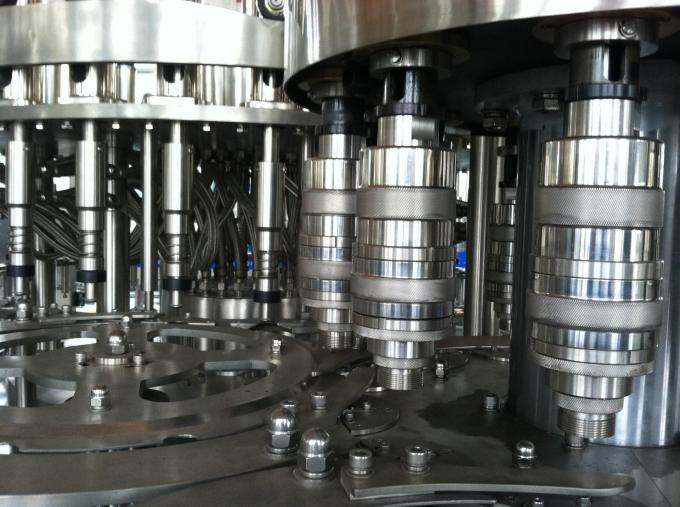

Product Show

High Capacity Automatic Carbonated Drinking Production Line Machine for 500ml-2000ml Bottle

Our Service

Installation service

When you finish the preparation conditions, our fast and professional after-sales service engineer team will go to your factory to install the machine, give your operation manual, train your staff until they can operate the machine well.

Pre sale service
1. Provide relevant equipment information, including video and pictures.
2 arrangements to visit the factory, equipment related consultation.
3. the organization project makes the project business plan, the cost calculation.

Custom service

We can make customized project service according to the machine (material, power, stuffed bottle, type, etc.) designed according to your requirements.

After-sale service

We will arrange shipment according to the date of commitment to ensure that you can get the machine quickly.
After you receive the equipment, our professional after-sales service engineer team will go to your factory to install and transfer relevant documents and materials, while training your employees to ensure that they can operate the machine well.
Three. We promise that if they are used according to the requirements, the life of the equipment can reach 10 years.
We provide one year warranty, one year's spare parts for you free of charge, life-long after-sales service.
The business relationship between you and us will be kept confidential to any third party.
Good after-sales service, if you have any questions, please reply in time.

Package

we use standard export wooden case for packaging.

High Capacity Automatic Carbonated Drinking Production Line Machine for 500ml-2000ml Bottle

Quality Control

We have an independent quality control department to test the production process, accuracy, function and performance. If you want to know more about the product's test information, you can send your related test report.

Contact Us:

Send you inquery now,we will make business proposal for you in 12hours!
