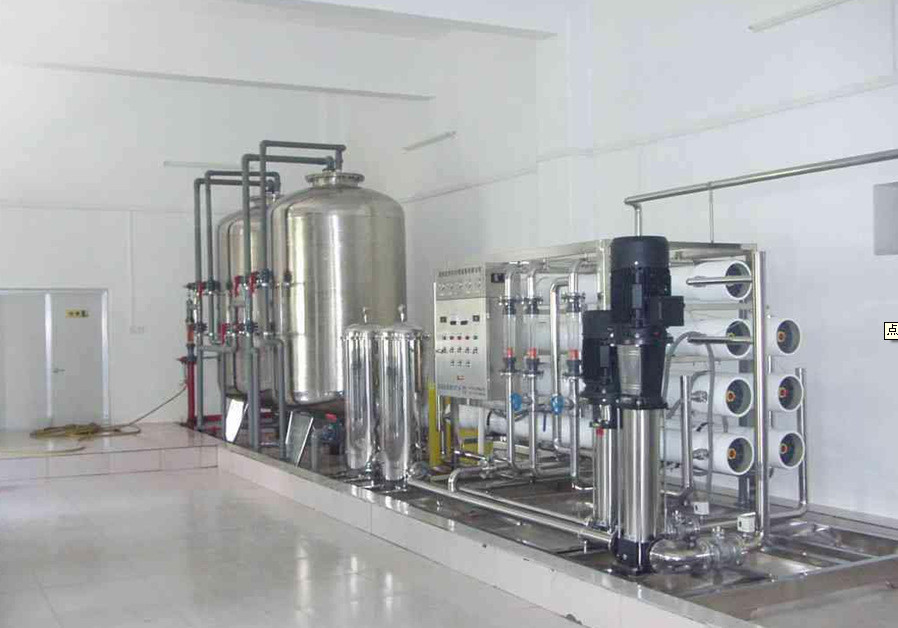

Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
Bottled Mineral Drinking Water Production Machine / Filling Production Line
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Overview
| Name: | Ro Water Treatment System | Membrane: | DOW / Hydecanme / TORAY |
|---|---|---|---|
| Material: | Stainless Steel 304 / 316 | Driven Option: | Electric |
| Voltage: | 110V / 220V / 380V According To Spec | Pump Option: | Grundfos / CNP |
| Export Markets: | Global | Quality Guarantee: | 1 Year Warranty And Lifetime Service |
| Running Time: | Normally Used 8 To 10 Years | After Sales Service: | Engineer Available Installation Overseas |
| Name: | RO System Water Treatment Machine |
Automatic Multiple stages Stainless Steel Water RO Water treatment System/ Water treatment Plant
Application:
Suitable water source: tap water, groundwater, well water.
Influent TDS range: within the range of 0.2% (other water sources need to provide detailed water quality reports)
Water recovery rate: 70%
The intercepting rate of RO membrane salt: 99.6%
To handle the TDS range of water: 30 to 50ppm. (to reach the standard of bottled water)
Flow chart:
Raw water tank- Raw water pump- Multi-medium filter–active carbon filter water softner (Sodium Ion Exchanger)- Precision filter- RO mainframe(including chemical cleaning device)- Ozone generator- Finished product water tankHigh Capacity 1 – 3 Stage Industry Drinking Water Treatment Plant / System For Water Production Line
Produc Show:
Technical parameters
|
Industrial Water Reverse Osmosis Systems RO-500 |
|||||
|---|---|---|---|---|---|
| Model Number | Permeate Flow Rate | Quantity of 8" Membranes | Motor Rating at 1,000 ppm | ||
| GPD | M3/D | 60Hz (hp) | 50Hz (kw) | ||
| MT-200K-4780 | 220,000 | 758 | 28 | 30 | 22 |
| MT-225K-5680 | 235,000 | 852 | 30 | 30 | 22 |
| MT-270K-6680 | 280,000 | 1,023 | 36 | 40 | 30 |
| MT-320K-7680 | 330,000 | 1,212 | 42 | 40 | 30 |
| MT-360K-8680 | 370,000 | 1,364 | 48 | 50 | 37 |
| MT-410K-9680 | 420,000 | 1,553 | 54 | 60 | 37 |
| MT-450K-10680 | 460,000 | 1,705 | 60 | 60 | 45 |
| MT-500K-11680 | 520,000 | 1,894 | 66 | 60 | 45 |
| MT-550K-11780 | 570,000 | 2,083 | 77 | 75 | 45 |
| MT-600K-13780 | 650,000 | 2,273 | 91 | 75 | 55 |
| MT-700K-14780 | 720,000 | 2,652 | 98 | 100 | 75 |
| MT-800K-16780 | 800,000 | 3,030 | 112 | 2X60 | 2×37 |
| MT-900K-18780 | 900,000 | 3,409 | 126 | 2X60 | 2×37 |
| For more details , please contact us | |||||
Our services
For these machines, our manufacturers offer after one year free replacement service customer service, at the same time we can arrange our engineers to your factory for installation, commissioning, training, to ensure the normal use of the equipment to your employees, but you need to pay for airfare, accommodation and meals
We will also be equipped with accessories as well as auxiliary parts, such as activated carbon, sand, PP safety filter core and other auxiliary parts.
Change time of easy-damage parts
1. Quartz sand: replacement in 1-1.5
2. Activated carbon: replacement in 1-1.5
Three. Reverse osmosis membrane: one and a half years or so.
PP precipitate cartridge: every month.
Output Samples
Inquiry
Related Products
-

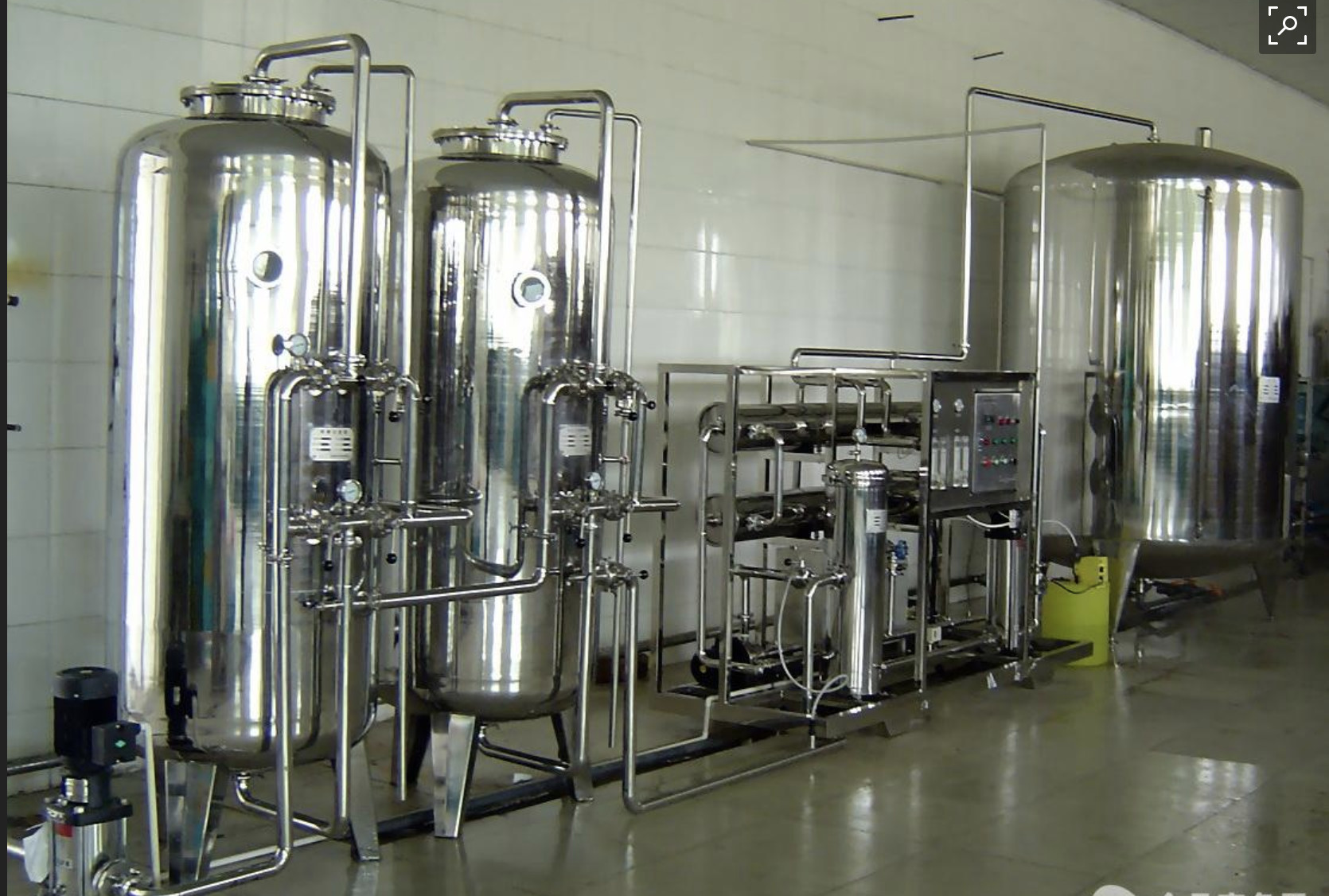

Drinking Water Treatment Systems Reverse Osmosis 2 Stage Water Purification Plant
Drinking Water Treatment Systems Reverse Osmosis 2 Stage Water Purification Plant
Reverse osmosis system is widely used in beverage and food i...
→ -

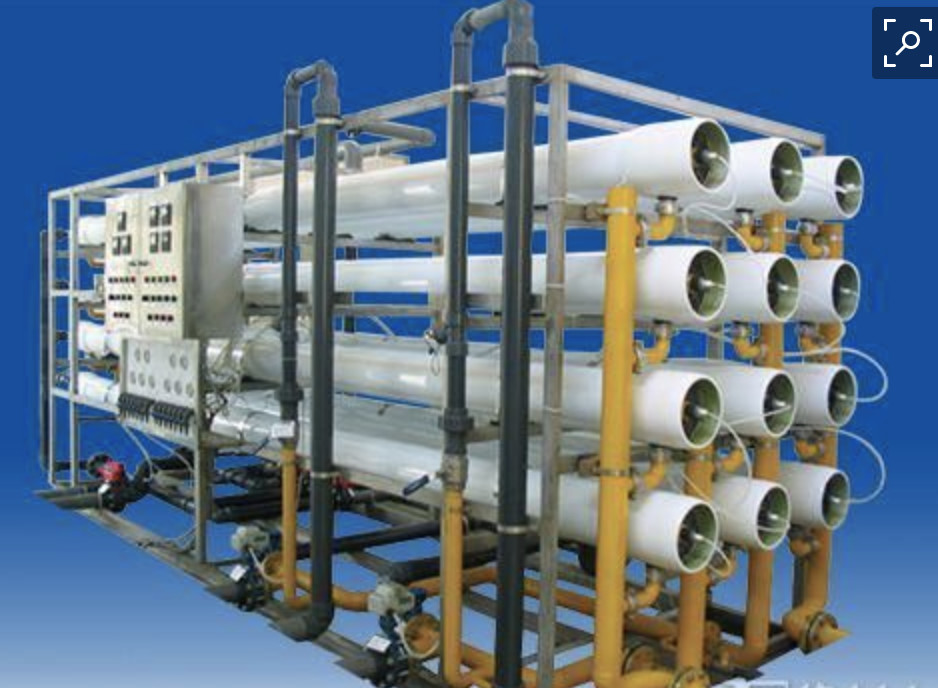

Reverse Osmosis Filter Drinking RO Water Treatment Plant For Mineral Water
Reverse Osmosis Filter Drinking RO Water Treatment Plant For Mineral Water
Water Treatment Plant is widely used in drinking water supp...
→ -

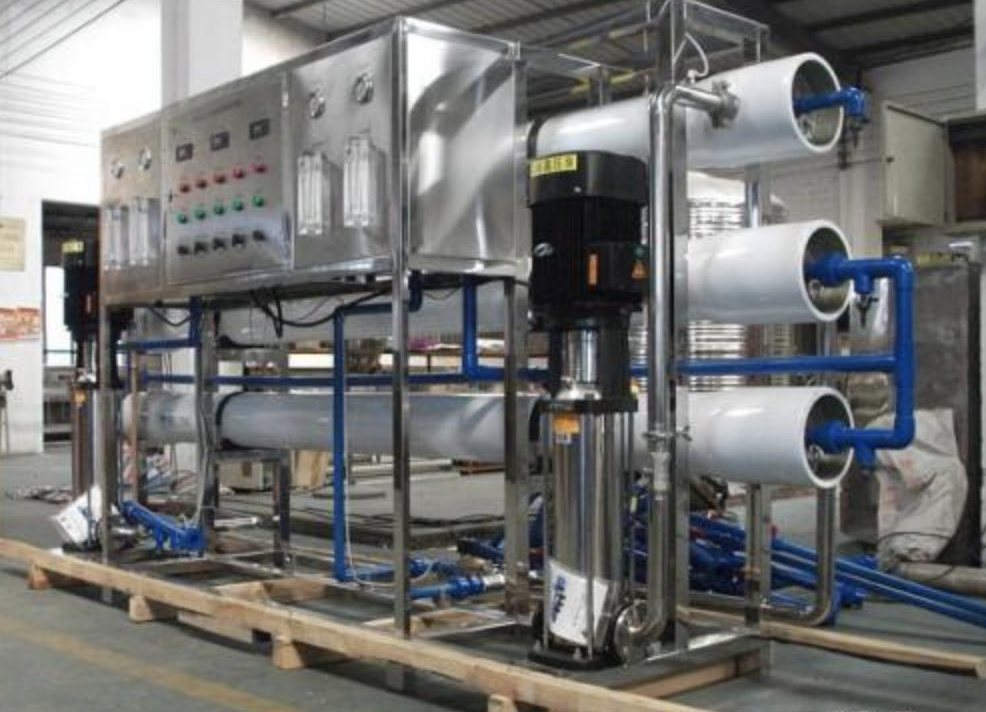

Industrial Water Treatment Systems High Capacity 1 – 3 Stage RO Water Treatment Machine
Industrial Water Treatment Systems High Capacity 1 – 3 Stage RO Water Treatment Machine
The RO filter is mainly used in the production of high quali...
→ -

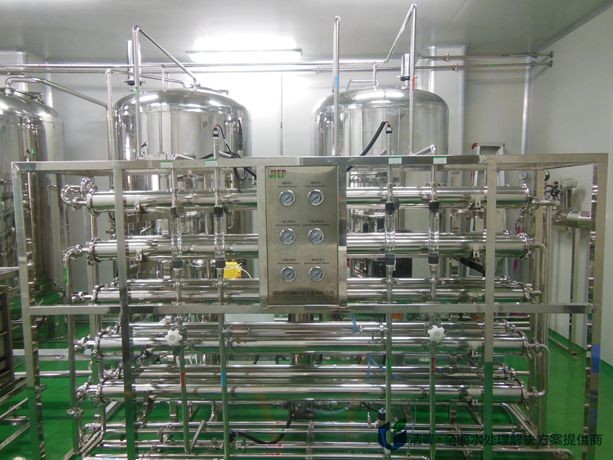

1 – 2T / Hour DOW Membrane Drinking Water Treatment Plant / System SGS Certificated
