Automatic Bottled Edible Oil Production Line 5000 BPH -12000BPH For PET Glass / HDPE Bottle


Automatic 5000BPH -12000BPH Bottled Edible Oil Filling Machine/Production Line For PET Glass And HDPE Bottles

Filling head is 6-head, 8-head and 10 or more, suitable for all kinds of bottle filling
Mitsubishi Japan PLC computer, omron photoelectric, Taiwan touch screen production, guaranteed its excellent quality, has long-term performance
Convenient adjustment
Food-grade Stainless Steel 314/304
no bottle no filling
Filling accuracy within 1%


Product Description


The machine is suitable for various kinds of viscosity and non visvous and corrosive liquid, widely used in vegetable oil, chemical liquid, daily chemical and other industries of small packaging quantitative filling, linear filling, electromechanical integration control, replacement of varieties is quite convenient, unique design, excellent performance, other conforms to the concept of international machinery and equipment.

Product Features:

• The filling time can be determined by   parameters  .
• The production   filling head is 6-head, 8-head and 10 or more, suitable for all kinds of bottle filling (including different bottle) range from 25 to 1000 ml.
• No leakage during filling.
• All components   contact the filled material by SUS316L or SUS304.
• There is a bottle counting procedure, no bottle  no filling, ensure accurate measurement.
•  World advanced gas filling valve to ensure that the filling process is not healthy and drooling.
• Germany Siemens PLC computer control, touch screen control, make it intelligent protection function, vacuum drop device to ensure no leakage in the production process. Electrical control system, frequency conversion control, using German plasma prostatectomy products photoelectric detection.
• The filling precision time of pneumatic valve can be set to 0.01 second, which can control the measurement accuracy within 1%, reduce unnecessary material loss and improve economic benefit.
•  High quality stainless steel frame, easy to operate, easy to maintain, small noise, long service life.

• Convenient adjustment: replace the filling specification by changing the parameters on the touch screen, and adjust the filling position first, adjust the servo motor on the touch screen after fine adjustment.

• International famous brand electrical components. Mitsubishi Japan PLC computer, omron photoelectric, Taiwan touch screen production, guaranteed its excellent quality, has long-term performance.

• Accurate measurement: the servo control system is adopted to ensure the piston always reaches a constant position.

• Variable speed filling: in the process of filling, when approaching the target filling capacity, slow filling can be achieved to prevent contamination of liquid overflow bottle mouth.

Specification:

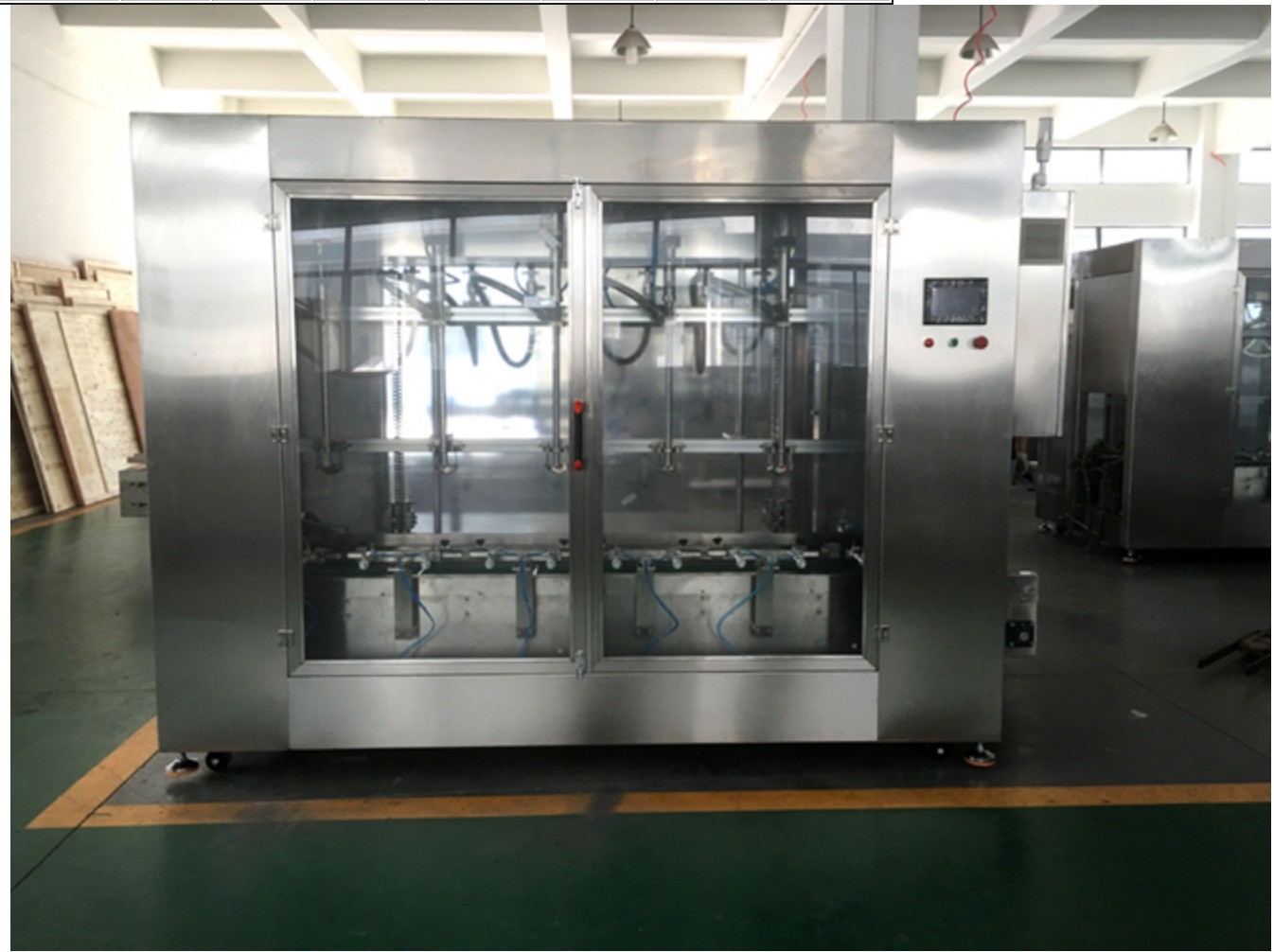

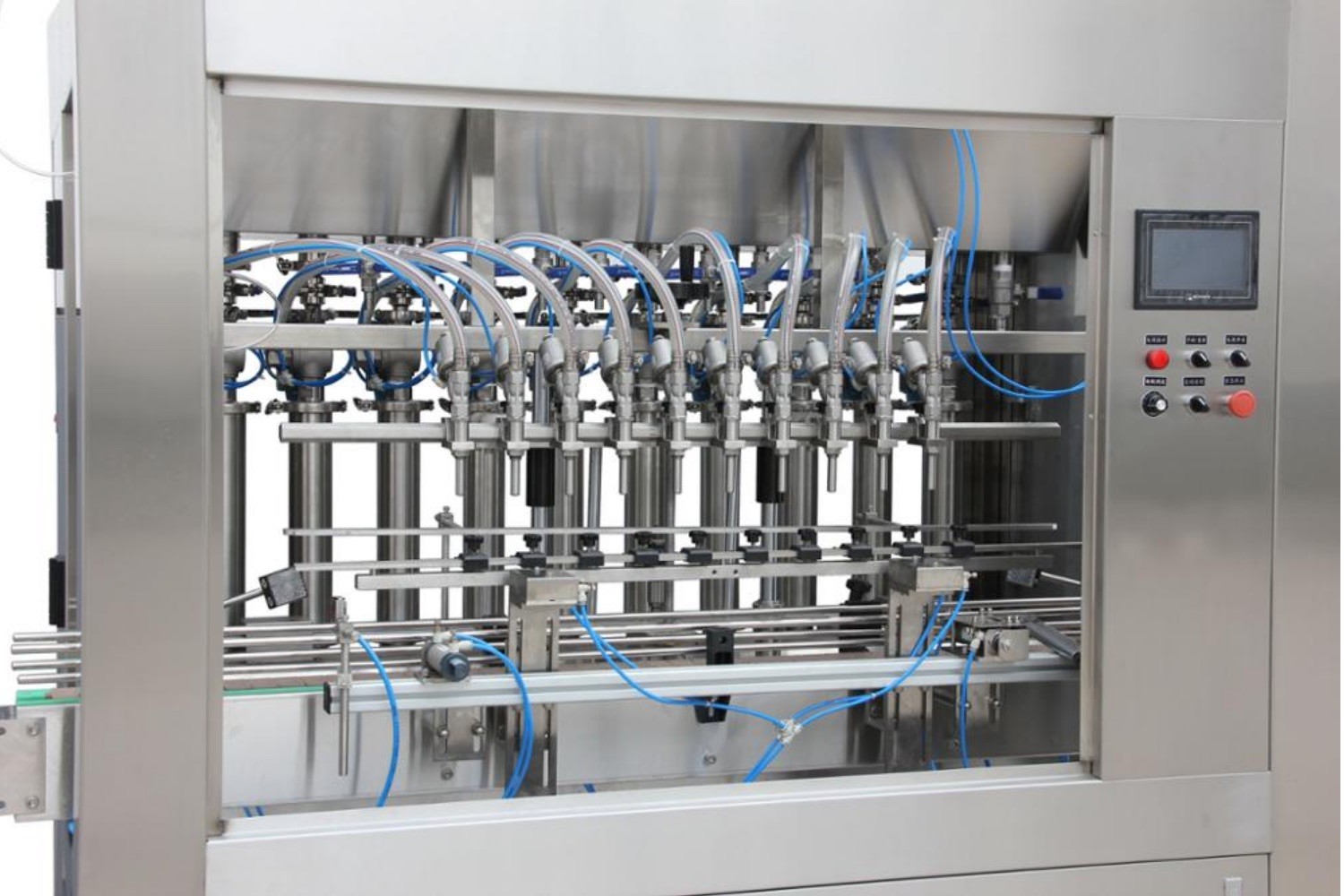

Product Show:

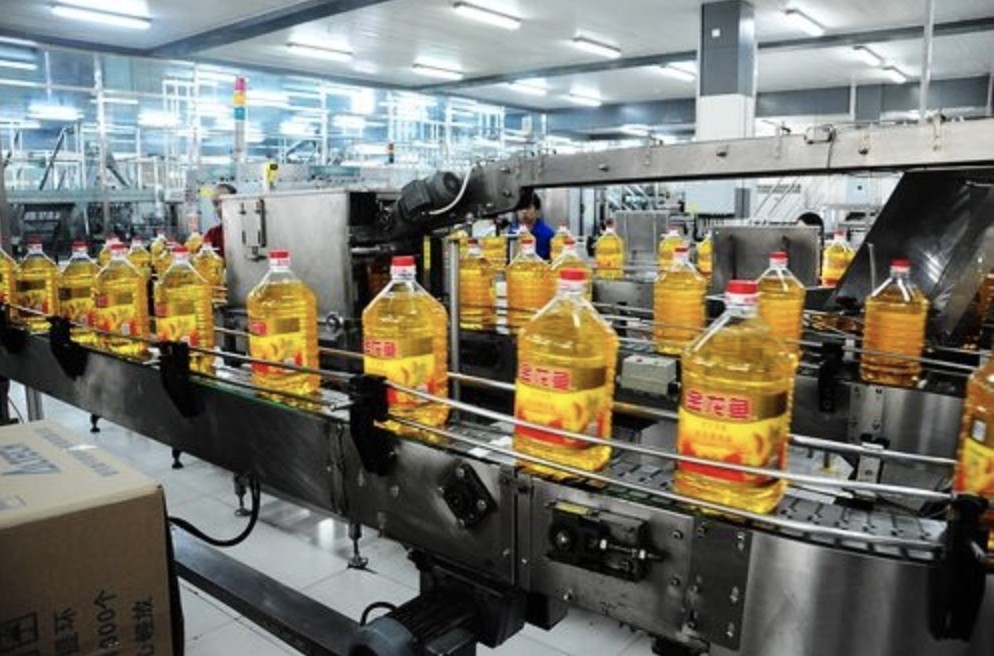

Output Product


Our Service


We provide a professional turnkey project from design to completion of the project:

• Project consultation
• The conceptual design
• design
• workshop
• Clean room and machine manufacturing.
• The installation
• debugging
• training
• Assist in validation and production.

After-sales service

• We will install and train your technical engineers in your factory.

•  When our machines arrive in your factory, we can install and train our technicians.

•  One year warranty.  Free spare parts for one year free of charge in the first year.
