Click the buttonAutomatic Soft Drink Filling Machine , Plastic Bottle Filling Machine ODM Available
Carbonated soft drink production line is mainly used for automatic production of soft drinks, energy drinks, carbonated drinks, as well as other tea drinks, mineral water, etc., it is suitable for 300 ml to 20000 ml of all kinds of round or square plastic bottles, glass bottles, the same device can be applied to a variety of bottle shape, he USES Germany Siemens PLC and mitsubishi display touch screen and other famous brands as a unit, fully automated production, high efficiency, good stability, suitable for small and medium-sized beverage provider of enterprise
We're here to help:Easy ways to get the answers you need.
Overview
| Type: | Energy Drink Production Line | Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Filling Head: | 12 To 40 |
| Capping Head: | 6 To 12 | Bottle Tall: | 150 To 340mm |
| Bottle Diameter: | 50 To 110mm | ODM: | Available |
Turn-key Project Automatic High Capacity Soft Drinks Production Line For Different Plastic Bottles with CE certificated
Product Description
Carbonated soft drink production line is mainly used for automatic production of soft drinks, energy drinks, carbonated drinks, as well as other tea drinks, mineral water, etc., it is suitable for 300 ml to 20000 ml of all kinds of round or square plastic bottles, glass bottles, the same device can be applied to a variety of bottle shape, he USES Germany Siemens PLC and mitsubishi display touch screen and other famous brands as a unit, fully automated production, high efficiency, good stability, suitable for small and medium-sized beverage provider of enterprise
Filling Main Features:
- Adopt advanced magnet clutch, adjustable torque, ensure safe and reliable cover.
- Adopt Siemens PLC as the center to carry out full automatic control, use pressure transmitter and electromagnetic pneumatic valve to measure liquid level, keep the filling pressure balance and ensure the stability of liquid level.
- In order to ensure safety, all parts in contact with the beverage are stainless steel 304/316 polished on surface, which is easy to be cleaned. The sealing material is epdm rubber, without the second pollution.
- To ensure cleaning, a new type of filling valve designed for plastic bottles is used. The backflow air and liquid in the tank are insulated.
- Multi-functional, for different bottles you only need to change a few parts in the machine.
Main equipments:
juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.
Flow Chart:
we provide the whoe production line for drinks,water ,tea,and other beverage,send us the inquery now ,we will send you professional business proposal in24hours!

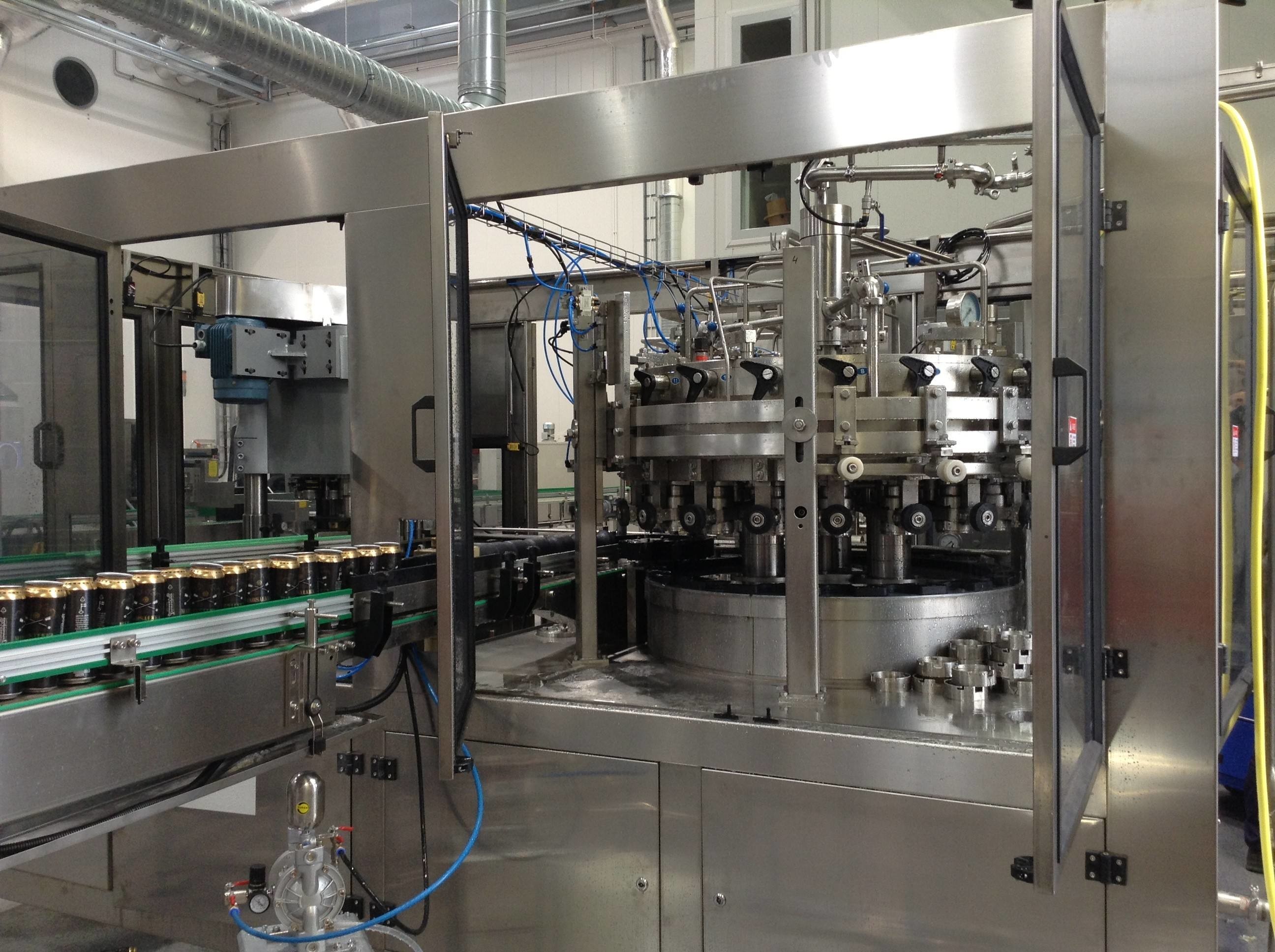

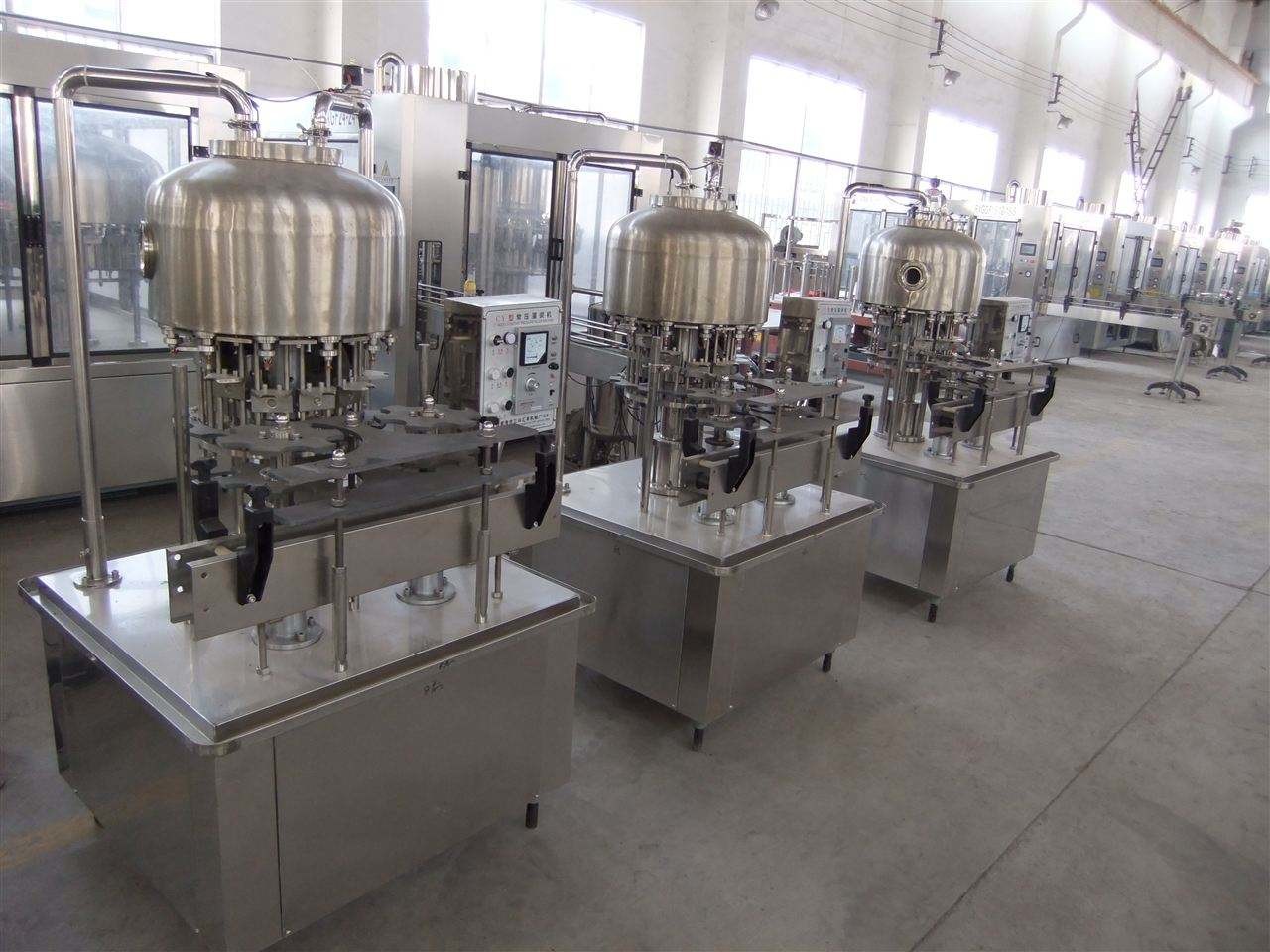

Product Show:
|

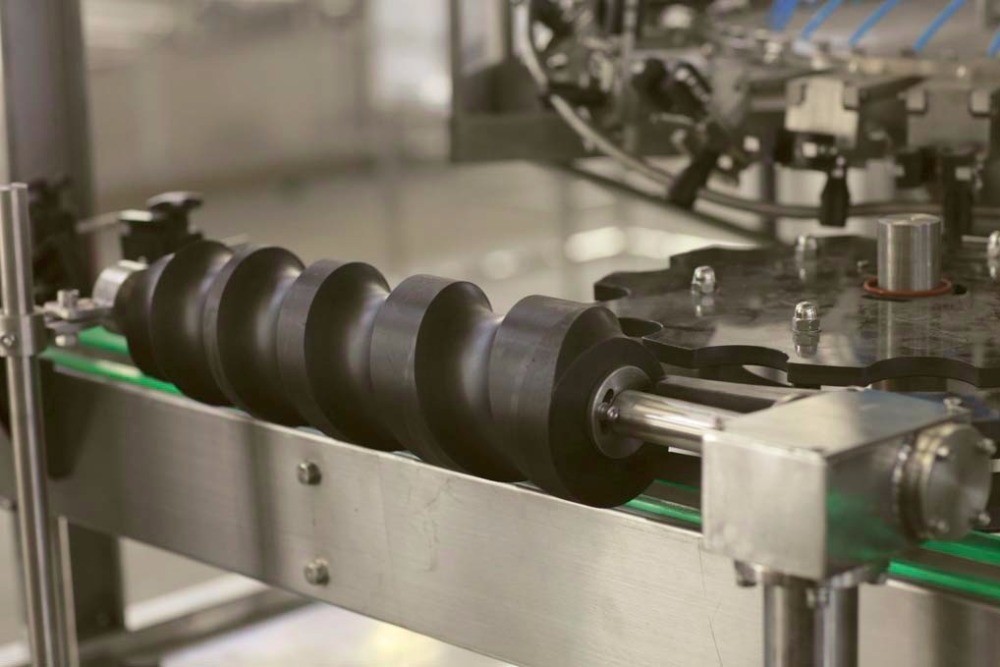

Rinsing Parts:
|
|
Filling Parts:
|
|
|
Capping Parts: Raw material: Food Grade Stainless Steel SUS304 Capping type: Rotary screw capping Adopts Italy advanced technology, more stable and durable. |
|
PLC and Touch Screen Brand: Siemens Original: Germany Using international brand electrical components to ensure machines running in good condition for longer time. |
|
|
high position tank made of high quality SUS304. |
high quality reflow tank for beverage juice |
Secifications:
| Model | MT16/12/6 | MT18/18/6 | MT24/24/8 | MT32/32/10 | MT40/40/12 |
| Rinsing Head | 12 | 16 | 24 | 32 | 40 |
| Filling Head | 16 | 18 | 24 | 32 | 40 |
| Capping Head | 6 | 8 | 8 | 10 | 12 |
| Bottle Size | H: 150-300mm | H: 150-340mm, D: Φ50-110mm | |||
| Power | 2.5KW | 3.5KW | 4.5KW | 5.6KW | 6.3KW |
| Weight | 2500KG | 3000KG | 4000KG | 5000KG | 6000KG |
| Packing Size(L*W*H)(mm) | 2100*1400*2300 | 2200*2100*2300 | 3400*2200*2850 | 4000*2640*2800 | 4700*2950*2800 |
| Power | 2.5KW | 3.5KW | 4.5KW | 5.6KW | 6.3KW |
The machine can be customized according to your capacity,bottle shapes ,and other requirement.please contact us for more details.
Output Product
Our Supplier
Our Service
- Inquiry and consulting support. we supply efficient consultant service for customers from oversea,including layout design for factory and others.
- Sample testing support, we provide sample testing for the machine.
- Visit Factory: we are able to arrange the pick up from airport ,order the hotel for you ,and arrange the visit to our factory.
- Installation ,debugging in your factory ,and give training to your staff for operation of machine.
- Engineers available to service machinery overseas.
Package
