Click the buttonCommercial Apple Juice Processing Line 3000-8000 BPH Stainless Steel Material
The fruit juice processing production line can be used to produce all kinds of fruit juice, including apple,orange,vegetables etc, all equipment adopts 304 stainless steel, with automatic cip cleaning system,it prevents the second pollution, durable, clean sanitation. All standard connection pipes are made of 304 stainless steel, which can be used according to the actual situation of customers. The whole system is fully automatic.
We're here to help:Easy ways to get the answers you need.
Overview
| Condition: | New | Weight: | 3000KG |
|---|---|---|---|
| Certification: | CE&ISO9001 | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year | Name: | Orange Juice Processing Equipment |
Commercial 3000-8000 BPH Stainless Steel Autoamtic Fruit Apple,Orange Juice And Vegetable Processing Equipment
Product Description
The fruit juice processing production line can be used to produce all kinds of fruit juice, including apple,orange,vegetables etc, all equipment adopts 304 stainless steel, with automatic cip cleaning system,it prevents the second pollution, durable, clean sanitation. All standard connection pipes are made of 304 stainless steel, which can be used according to the actual situation of customers. The whole system is fully automatic. There is an automatic electrical control system. Only a few operators are required to deal with the factory, which will reduce labor costs and increase production efficiency.
Main equipments:
juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.
Flow Chart:
We are able to supply whole production line for juice making ,Send us now We will make a business proposal for you with professional advice of business.

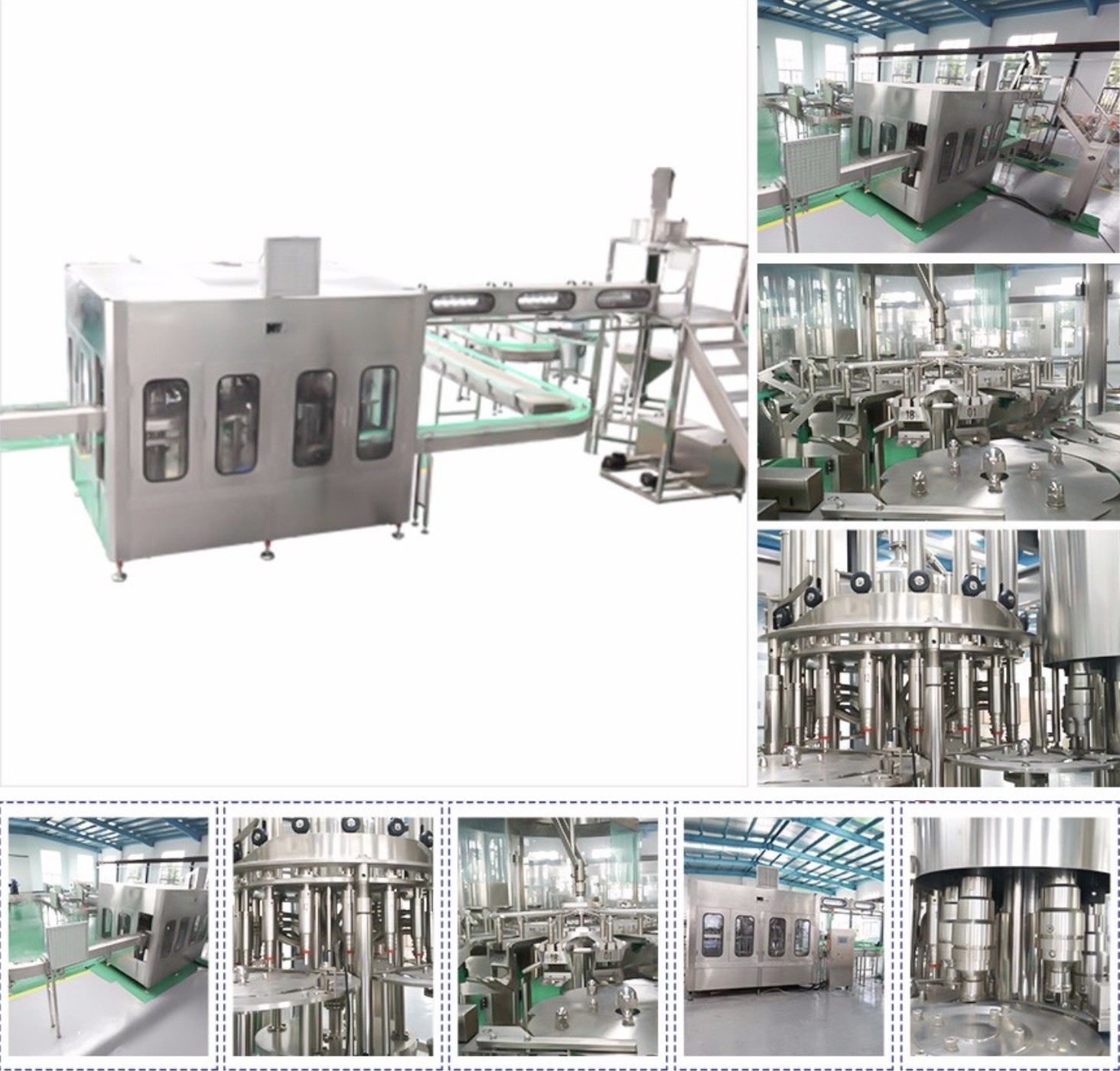

Product Show:
|
Rinsing Parts:
|
|
Filling Parts:
|
|
|
Capping Parts: Raw material: Food Grade Stainless Steel SUS304 Capping type: Rotary screw capping Adopts Italy advanced technology, more stable and durable. |
|
PLC and Touch Screen Brand: Siemens Original: Japan Using international brand electrical components to ensure machines running in good condition for longer time. |
|
|
high position tank made of high quality SUS304. |
high quality reflow tank for beverage juice |
Secifications:
- Can be used on a machine for washing filling, liquid filling and sealing.
- The upper computer adopts advanced PLC control. The working frequency can be adjusted by frequency conversion device.
- It is very convenient to replace all sizes of bottles with advanced bottleneck clamping and bottle technology.
| Main Technical Data: juice filliing line | ||||||||
| Model | MT12125 | MT18186 | MT24248 | MT323210 | MT404012 | MT505012 | MT606015 | MT808025 |
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-25 |
| Production capacity(600ml) (B/H) | 2500-4000 | 5000-7000 | 8000-12500 | 12500-15000 | 16000-25000 | 25000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110=170 330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1925 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 | 6500×4500 ×2900 | 76800×66400 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | |||
Output Product
