Click the buttonComplete Drinking Water Production Line Automatic 3 In 1 Cleaning Filling Capping
The 3 and 1 filling machines are mainly used for the cleaning and filling of drinks and the three functions of the rotating cover. The filling and restriction are made by a body of the machine.
It is mainly used to pack a variety of soda drinks, and carbonated drinks contain glass bottles. The design of the machine is scientific and reasonable.
Beautiful appearance, perfect function. It is convenient to operate and maintain. High automation.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Carbonated Drink Filling Machine | Condition: | New |
---|---|---|---|
Application: | Beverage | Packaging Type: | Bottles |
Automatic Grade: | Automatic | Place Of Origin: | Shanghai, China (Mainland) |
Certification: | CE ISO | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Name: | Complete Carbonated Soft Drink Production Line | Function: | Washing,filling,capping |
Material: | SUS304 | Guarantee Time: | 2 Years |
Control: | PLC+ Touch Screen | Capacity: | 0-18000BPH |
2018 Automatic 3 in 1 Cleaning Filling Capping Complete Carbonated Soft Drink Production Line
- The 3 and 1 filling machines are mainly used for the cleaning and filling of drinks and the three functions of the rotating cover. The filling and restriction are made by a body of the machine.
- It is mainly used to pack a variety of soda drinks, and carbonated drinks contain glass bottles. The design of the machine is scientific and reasonable.
- Beautiful appearance, perfect function. It is convenient to operate and maintain. High automation. Packaging technology introduced advanced technology in Germany and Italy. The filling speed is fast, and the liquid quantity is controlled accurately. The filling equipment can be automatically stopped to ensure that the bottle or bottle is not damaged.
- Pneumatic value and damped gear are used in bottle delivery, the noise is low, and the whole machine runs smoothly. The magnetic torque is used for the spiral cover. The strength limit of the screw can be adjusted. The strength limit of the screw can also be fixed. The cap can not be damaged, and the limit is reliable.
- The upper level sorting device of the vortex power is used to avoid the upper limit of the damaged surface. When there is a shortage of cap and cap, the alarm signal will be automatically generated and the cap will be fed.
- The whole machine is controlled by PLC and touch screen, and the design of the software system is friendly close to the mobile phone operation interface. The liquid level of the beverage can be automatically controlled. No bottle is not filled. The machine can be stopped automatically when the filling is wrong.
Main Parameters:
Model | MT12-12-4 | MT18-18-4 | MT24-24-8 | MT32-32-10 |
ProductionB/H(400ml) | 3000-4000 | 4000-4000 | 7000-8000 | 8000-10000 |
Bottle standard | Neck:φ40-100mmHeight140-320mm | |||
Water pressure of washing bottle | 0.18-0.24Mpa | |||
Water consumption for washing bottlekg/h | 400 | 1000 | 1400 | 2000 |
Spraying position | 4 | 7 | 10 | 14 |
Dripping bottle position | 3 | 4 | 8 | 10 |
Filing precision | +4MM | |||
Gas source pressure | 0.4Mpa | |||
Filling pressure | 0.4Mpa | |||
Gas consumption(m³/min) | 0.3 | 0.4 | 0.4 | 0.7 |
Total powerkw | 4.2 | 4.4 | 4 | 4.2 |
Total weightkg | 2 | 2.4 | 3 | 4 |
Dimension L*W*H)mm | 2100*1700*2100 | 2400*1840*2100 | 2700*2200*2100 | 3400*2200*2100 |

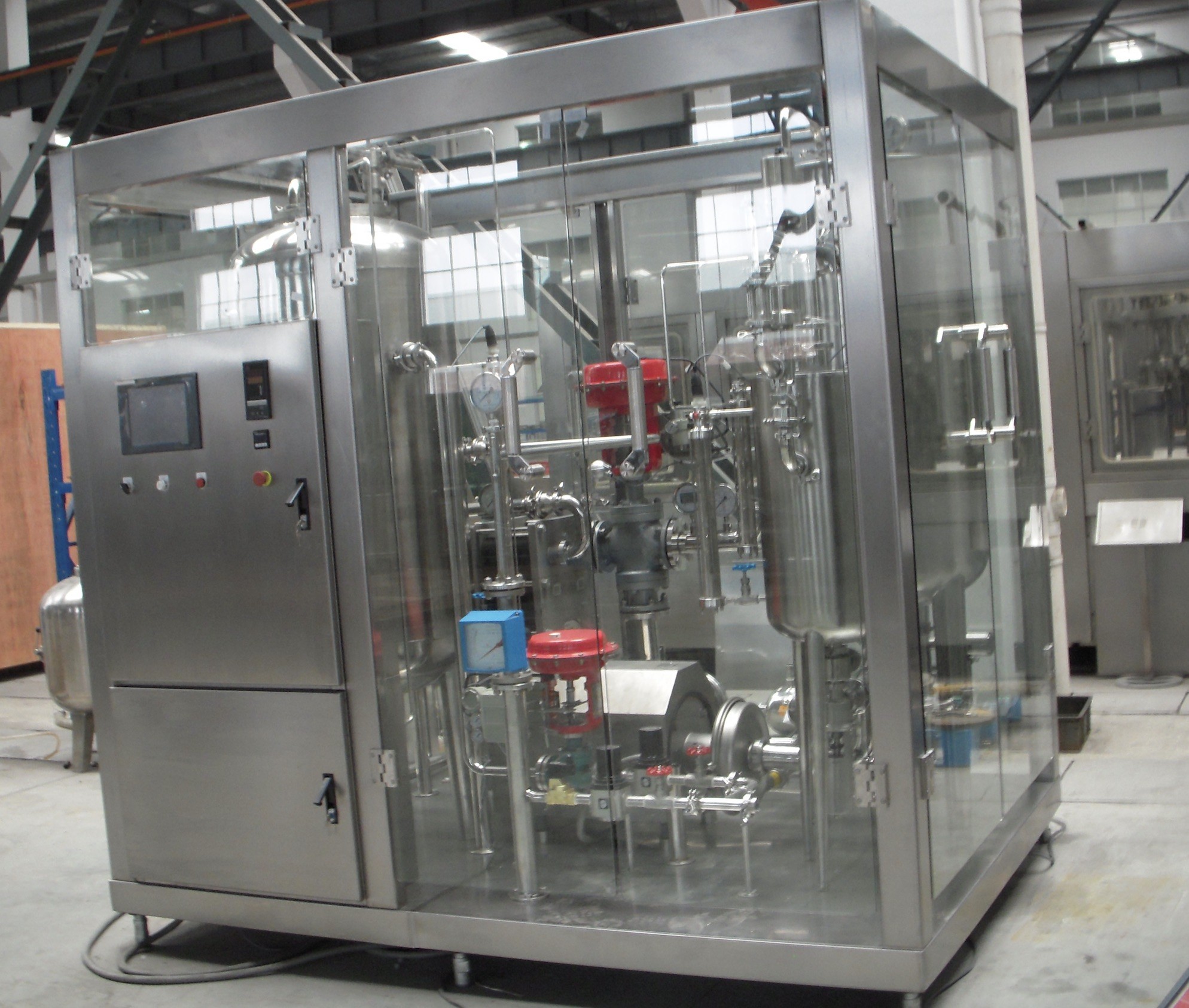

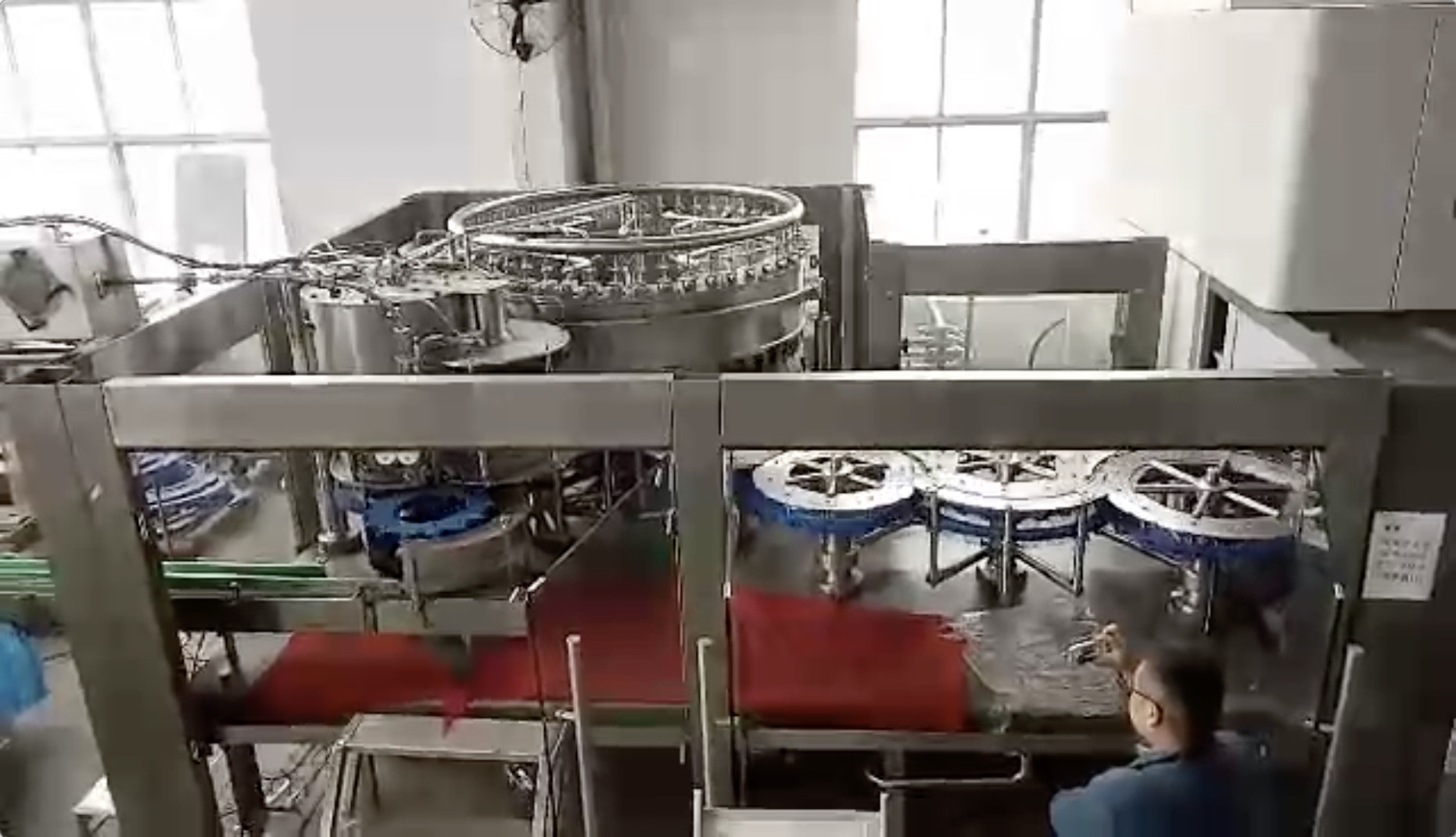

Product Pictrues
We pack the machien with film and outsize pack with wooden package.
Output Product
- The whole system is guaranteed for two years.
- If you have any problem with machine ,we will be the asistant for solving the problem for you .
- Free equipment installation and debugging.
- 1 years later, we can help you repair the machine, the accessories are provided only at the cost price.
- Every 3 years, we can repair machines (labor) free of charge.
- We can provide an internship to help you train operators and machines.
- Free production process and process configuration.
- We can help you design the production line, the workshop and the delivery of the turnkey project.
