Click the buttonEnergy Drink Production Line Electric Driven For Beverage High Efficiency Low Energy
This series equipment is used for energy drinks, water, and other carbonated and non-carbonated beverages production, the machine integrates washing, filling and capping at one machine, occupied area is small, low cost, stable performance, high efficiency and low energy
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Soft Drink Filling Machine | Application: | Beverage |
---|---|---|---|
Packaging Type: | Bottles | Automatic Grade: | Automatic |
Power: | 9.56KW | Dimension(L*W*H): | 3800mm*2800mm*2710mm |
Certification: | CE | Production Capatity(BPH)(500ML): | 18000-20000 |
Applicable Bottle Type: | (Bottle Diameter) 50-100mm;(height)150-320mm;(volume)250-2000ML |
High Capacity Automatic Energy Drink Production Line / Energy Drink Filling line / Energy Drink Filling Machine
Application
This series equipment is used for energy drinks, water, and other carbonated and non-carbonated beverages production, the machine integrates washing, filling and capping at one machine, occupied area is small, low cost, stable performance, high efficiency and low energy
Main Feature
- The magnetic moment is used for the screw cap. The cap power can be adjusted freely without damaging the cap.
- All of the components that come into contact with the drink are made of high quality food grade stainless steel.
- Core electrical components come from well-known international companies, such as mitsubishi and omron, to ensure a stable and efficient functioning.
- The design of the suspension bottle keeps the bottle steady under high speed.
- Simply changing a few components can easily meet the production needs of different types of bottles.
- The machine adopts advanced gravity filling technology to make the filling fast, stable and accurate.
- Use a special food grade stainless steel clip that does not touch the area above the screw thread. The nozzle is in the clamp to ensure full cleaning inside the bottle.
- This machine adopts advanced man-machine interface touch screen technology and PLC program control technology, which is highly automated.

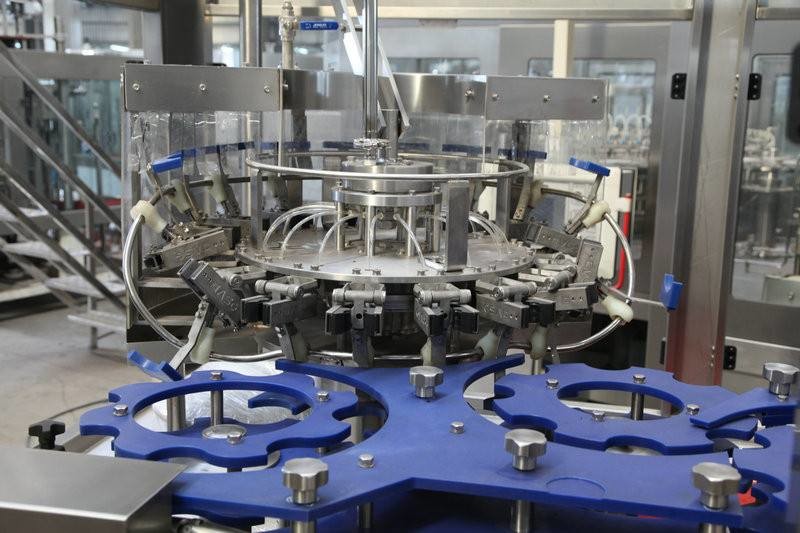

Product Show
Specification
Technical Data | |||||
Model | CGF14124 | CGF18186 | CGF24248 | CGF323210 | |
Head Number | 14-14-4 | 18-16-6 | 24-24-8 | 32-32-8 | |
Capcty bottle(600ml)/hour |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | |
Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||||
Pressure (kg/cm2) | 2~3 | ||||
Motor power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw | |
Outside vacuum pump power (kw) | 0.75 | 1.1 | 1.5 | 2.2 | |
Overall dimension (mm) (LxWxH) |
2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 | |
Weight(kg) | 2500 | 3500 | 4200 | 5500 | |
Technical Data | |||||
Model | CGF404010 | CGF484812 | CGF606015 | ||
The number of Washing, Filling, Capping | 40-40-10 | 48-48-12 | 60-60-15 | ||
Producing capacity: The number of bottle(600ml)/hour |
16000-20000 | 20000-24000 | 25000-30000 | ||
Applicable bottle specifications (mm) | φ=50-108 H=170-340 330ml-2.25L | ||||
Pressure (kg/cm2) | 2~3 | ||||
Motor power (kw) | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw | ||
Outside vacuum pump power (kw) | 2.2 | 3 | 4 | ||
Overall dimension (mm) (LxWxH) |
4600x1800x2650 | 5200x4500x3400 | 6500x4500x3400 | ||
Weight(kg) | 6800 | 7600 | 9800 |
Our Service
- We have one year warranty and lifetime maintenance. In one year, we will send the accessories to you free of charge if there are any faulty parts.
- In the firs year, if there is a big problem with the machine, we'll send you spare for free. We have an on-call team to provide after-sales service.
- In the following year, we provide spares with cost price
- If the buyer has any problems, our technical department, our service, or we can send professional engineers to help you for trouble shotting
- 15-25 Days
- Packing Detail :Wooden Cases
