Name: | Liquid Filling Sealing Machine | Application: | Apparel, Beverage, Chemical, Commodity, Food, Medical, Textiles |
---|---|---|---|
Automatic Grade: | Automatic | Place Of Origin: | Shanghai, China (Mainland) |
Brand Name: | Qualipak | Model Number: | MT-320L |
Dimension(L*W*H): | 970*680*1950MM | Certificate: | CE |
Packing Speed: | 5-60bags/min | Film Thickness: | 0.05-0.08mm |
Main Frame Of Machine Material: | 201/304 Stainless | Material: | Stainless Steel |

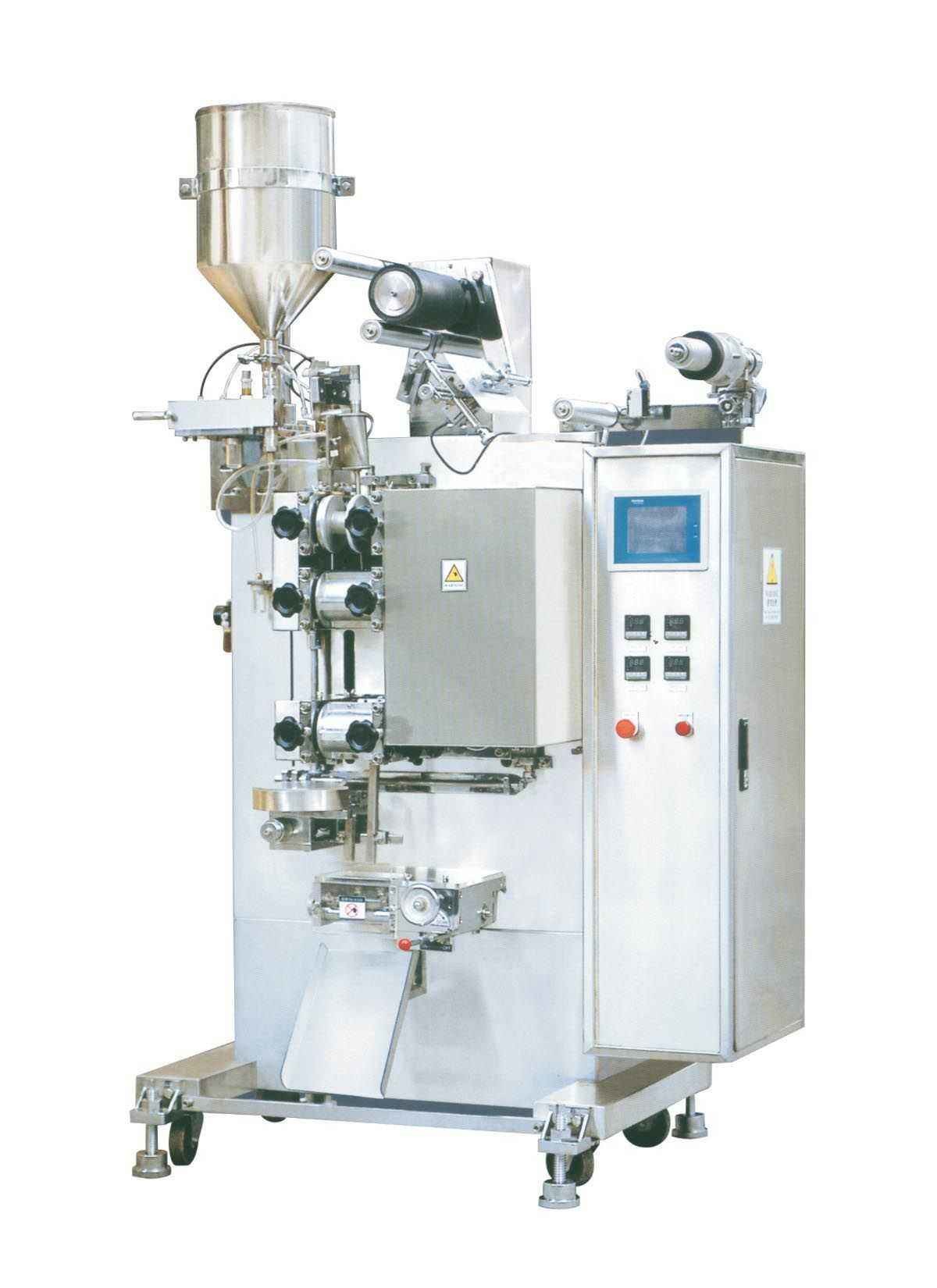

Vertical Automatic Plastic Bag Liquid filling Sealing Machine Plastic Water Bag Filling Sealing Machine
Application
The equipment is widely used for filling materials, and is suitable for filling liquid materials such as drinks, soy sauce, vinegar, wine, milk, soy milk and so on.
Packaging materials:
Single layer film, back bag
Advantage:
- The whole machine is made of stainless steel structure, and the equipment is stable and reliable.
- The operation is simple and the failure rate is low
-
High precision control packaging and easy operation.
-
High automation complete a series of processes, backup bag making, filling, packing, printing, and collecting (exhaust) process
- It is equipped with organic glass lampshade, color belt printer, ultraviolet sterilization and so on.
- The single polyethylene film wrapper can be automatically carried out by ultraviolet sterilization, feeding bag molding, date printing, quantitative filling, and one – time closure.
Parameters
Mode | MT-320L | MT-380L |
Film Width | 120-320MM | 180-380MM |
Bag Length | 40-200MM | 50-280MM |
Bag Width | 40-140MM | 50-180MM |
Range of Measurement | 40-400ML | 40-740ML |
Film Roll Diameter | Max.300MM | Max.320MM |
Packaging Rate | 35-70Bag/Min | 35-70Bag/Min |
Power | 220V 40/50HZ 2.2KW | 220V 40/50HZ 2.5KW |
Machine Dimention | 970*680*1940MM | 1100*800*2140MM |
Machine Quality | 300KG | 440KG |
Product Show:
Samples:
Packaging:
We use the wooden case for export.
Dlivery date : 10-35days,
Delivery way: by Sea By Air,or Express
-
