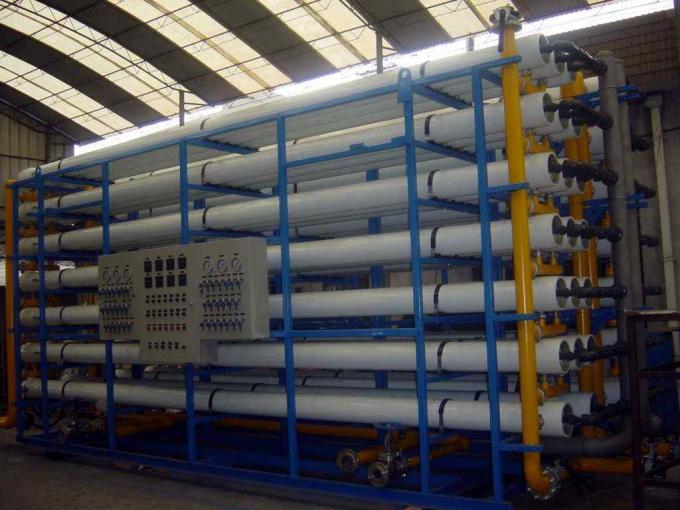

RO System Ozone Drinking Water Treatment Machine With Grundfos Pump CE Approved

RO water treatment equipment can deal with raw water, such as tap water, underground water, river water, well water and so on. The whole process is pre treated and then filtered by RO equipment.
Multi-level processing into RO device, can remove the dissolved salt 99% and harmful substances removal, these harmful substances will have different degrees of damage to the body, including particle, colloid, organic impurities, heavy metals, bacteria, viruses, heat source, water treatment system and finally get 96-98% salt treatment desalination rate of water. The final effluent conductivity was less than or equal to 10 mu S/cm – potable water

Working Flow Chart

• The original water pump ensures sufficient water to provide sufficient water and pressure for activated carbon and quartz sand
  2. Multi medium filter – mainly used to remove the residue of water, suspended matter, organic matter, colloid and other harmful substances.
  Three. Activated carbon filters, mainly used to remove excess colors, free chlorides, organic substances, and other harmful substances.
  Softeners – the most commonly used and simplest way to remove the excess magnesium ions.
  micron filter, prevent large particles, bacteria, virus into the RO film, precision 5um,
  High pressure pump – supply high pressure to the RO film RO.
  The 7.ro system, the main core component of the equipment, is used for the desalination of the RO reverse osmosis membrane up to 99% to remove more than 99% ions.

Technical parameters

The factory equipment to the customer, we will provide the equipment according to the layout, to install the location of each device; we will send experienced engineers to guide the installation and commissioning and production tracking, and complete the design in the predetermined time within approximately 7 days of the installation and commissioning and training
We will provide you with training, including the structure, operation and maintenance of the equipment. After training, housing technicians will master relevant operation and maintenance skills, be able to skillfully adjust technology, and deal with all kinds of faults in time. When housing cannot solve problems, we will try our best to ask you to provide solutions.
