Click the buttonHigh Speed 5 Gallon Drinking Water Filling Machine , Automatic Pure Water Production Line
The production line is mainly used in the production of 3 gallons, 5 gallons of barreled water, which can be used for the production of mineral water, pure water, distilled water, and other drinking water.
It integrates washing bottles, filling and capping as a whole. It reduces the area of land and saves energy.
The device has a complete function, modern design and highly automated.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Automation: | Fully Automatic | Driven Type: | BY Electric |
---|---|---|---|
Type: | Bottled Water Production Machine | Voltage: | 220v/380v |
Brand Name: | Qualipak | Application: | Water ,Beverage, Medical,Juice |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ODM: | YES |
Industrial Multifunctional Automatic 3, 5 gallon Water Filling machine Production Line
- GERMANY TECH WITH CHINESE PRICE
- FOOD GRADE STAINLESS STEEL
- CE&ISO9001 CERTIFCATED
- FAMOUSE Brand COMPONENTS
- AUTOMATICLY PRODUCE CLEARN WATER WITH SIMPLELY ONE CLICK
► PRODUCT DESCRIPTION

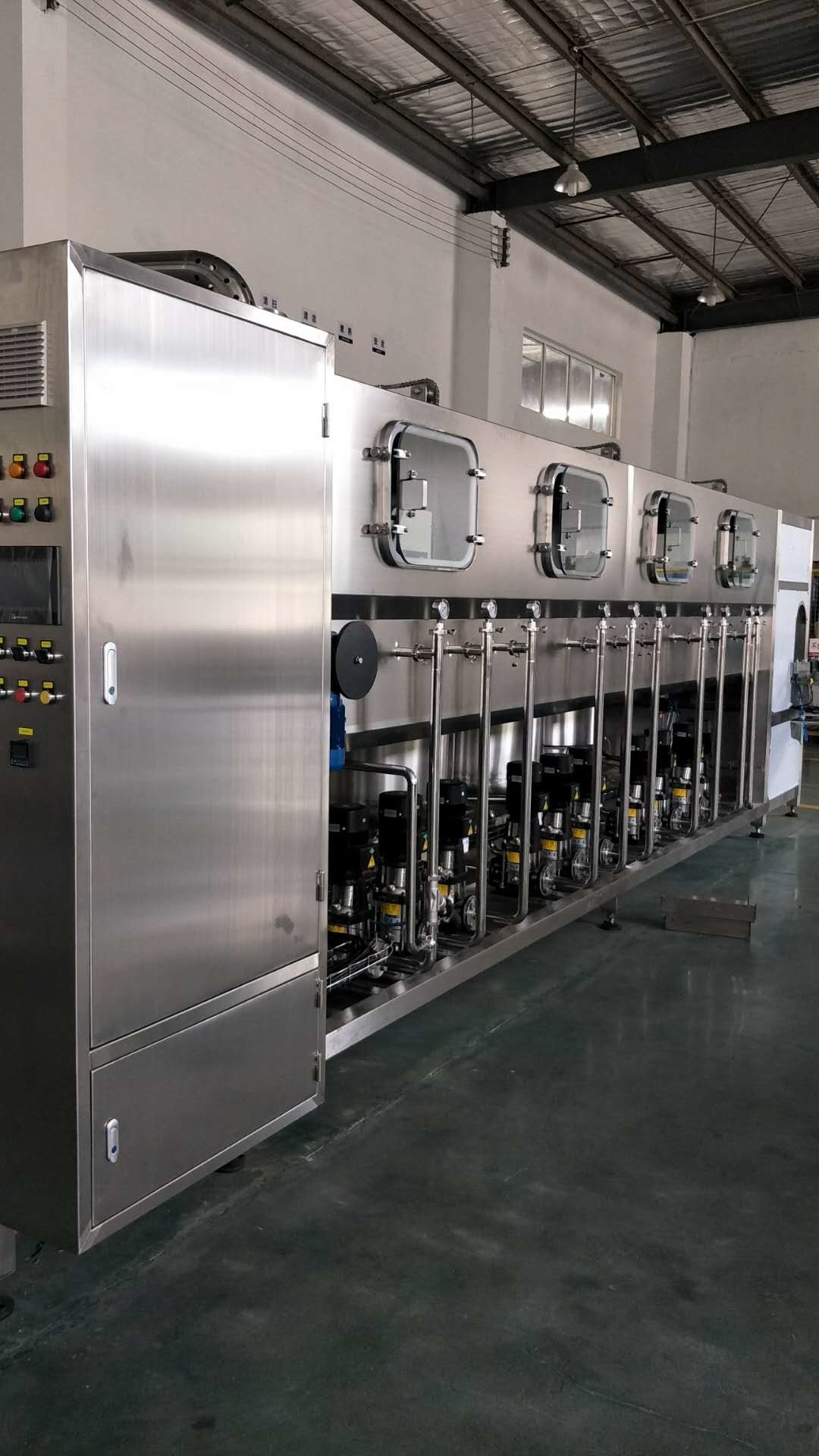

The production line is mainly used in the production of 3 gallons, 5 gallons of barreled water, which can be used for the production of mineral water, pure water, distilled water, and other drinking water.
It integrates washing bottles, filling and capping as a whole. It reduces the area of land and saves energy.
The device has a complete function, modern design and highly automated.
The equipment is made of food grade stainless steel, which is easy to rinse and prevent rust.
We choose the more well-known OMRON and SIEMENS brand to ensure that the operation is stable.
► MAIN FEATURES
-

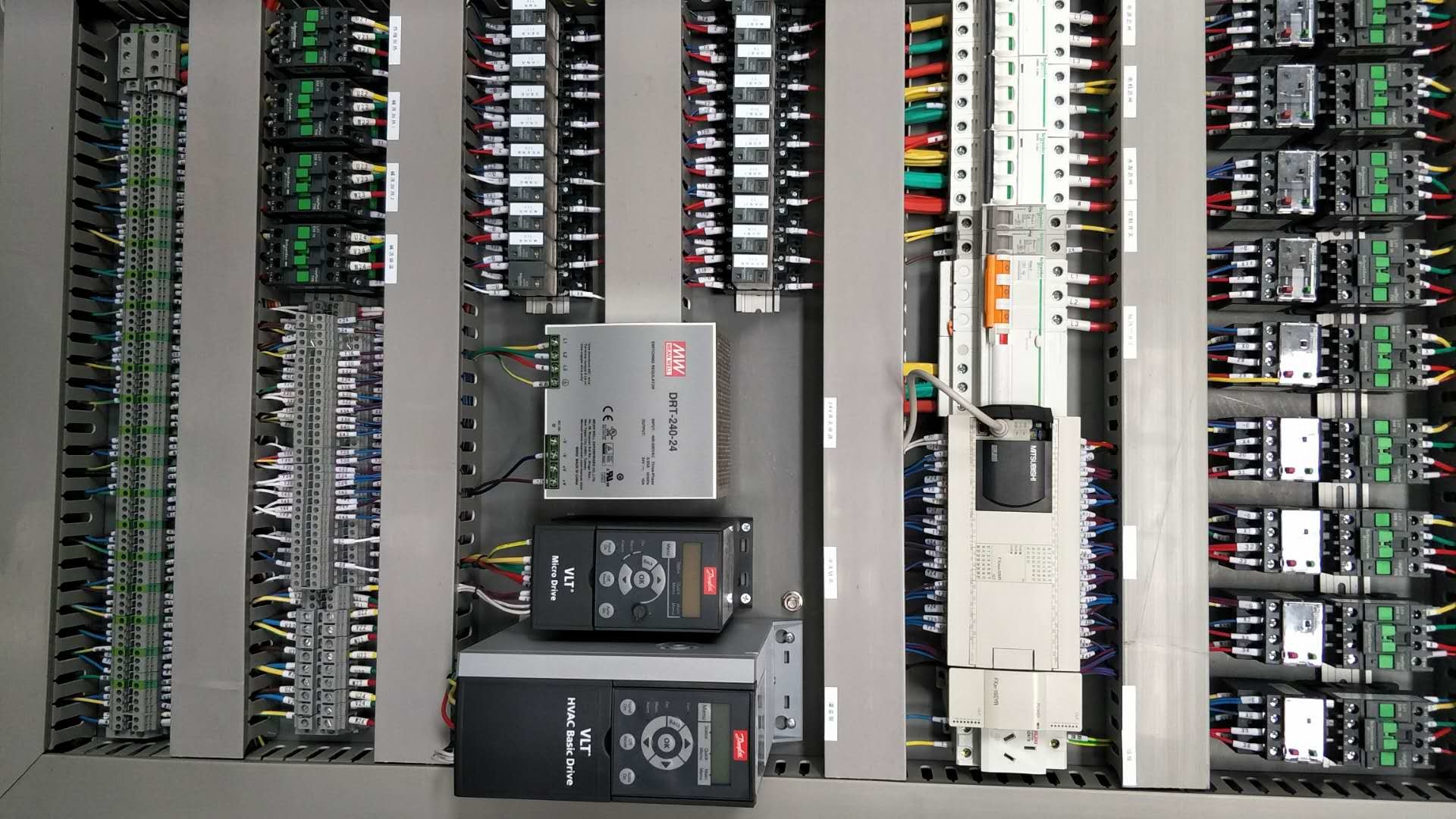

The production line is fully automatic PLC control, full automatic work, filling liquid level, filling time can be adjusted.
-
All contact parts are polished 304 or 316 stainless steel with food class to prevent corrosion and rust, so as to ensure the safety of food.
-
Full automatic PLC control, filling liquid level, filling time can be adjusted.
-
A straight line cylinder is used for filling, and the filling precision is high and accurate. (when the filling speed of 800bph is over, the rotary filling system is used).
-
Food grade glass fiber transparent window.
-
The safety factor is high, no bottle is not washed, no bottle is not filled, no bottle is not covered.
-
The production line is high, with a range of 60 bottles / hours to 1500 bottles / hours.
Model | MT-150 | MT-250 | MT-450 | MT-600 | MT-900 | MT-1200 |
Filling Heads | 1 | 2 | 3 | 4 | 6 | 8 |
Volume(L) | 18.9 | |||||
Barrel Size(mm) | φ 260× 490 | |||||
capacity(b/h) | 125-155 | 245-310 | 450-500 | 550-650 | 750-850 | 150-1250 |
Pressure for Gas (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Consumption For Gas (m 3 /min) | 0.37 | 0.6 | 0.8 | 1 | 1.2 | 1.5 |
Power(kw) | 1.38 | 1.75 | 3.8 | 7.5 | 9 | 13.5 |
Voltage(V) | 380V/50Hz | |||||
Weight(kg) | 680 | 1200 | 1600 | 2000 |
► OUTPUT PRODUCT SAMPLE
► OUR SERVICE
- We supply the turnkey project. Only if you need it, we will make a plan for you to complete production and delivery.
- Our company has a professional design team and has over 15 years of production experience. Our engineers can draw bottle samples and flow charts, and design your workshop for you.
- We Offer you the best business plan for your various beverage production
- What kind of drink do you want to produce, how much is your capacity (for how many hours a bottle)? What is the bottle material, pet or glass, etc.?
- We delivery engineers to help to install, debug and train
- We provide the necessary documents under the machine: machine layout, electrical drawings, equipment operation instructions, general user manuals / maintenance books
► THESE CUSTOMERS CHOOSE TO COOPERATE WITH US
► MARKETING
We have dealer in the Middle East, Thailand, South American, India, Iran, Malaysia, Lycia, Germany, New Zealand, we prove our ability to strength, is committed to providing customers with high value products
-
