Type: | Carbonated Beverage Bottling Equipment | Packaging Material: | Glass, Plastic |
---|---|---|---|
Certification: | CE ISO SGS | Processing Type: | Washing Filling Capping |
Main Processing Machine: | 3 In 1 Unit Machine | Bottle Type: | PET Bottles Or Glasses Bottle |
Bottle Volume: | 0.2~2.0Liters | Material: | Food Stage SS304&316 |

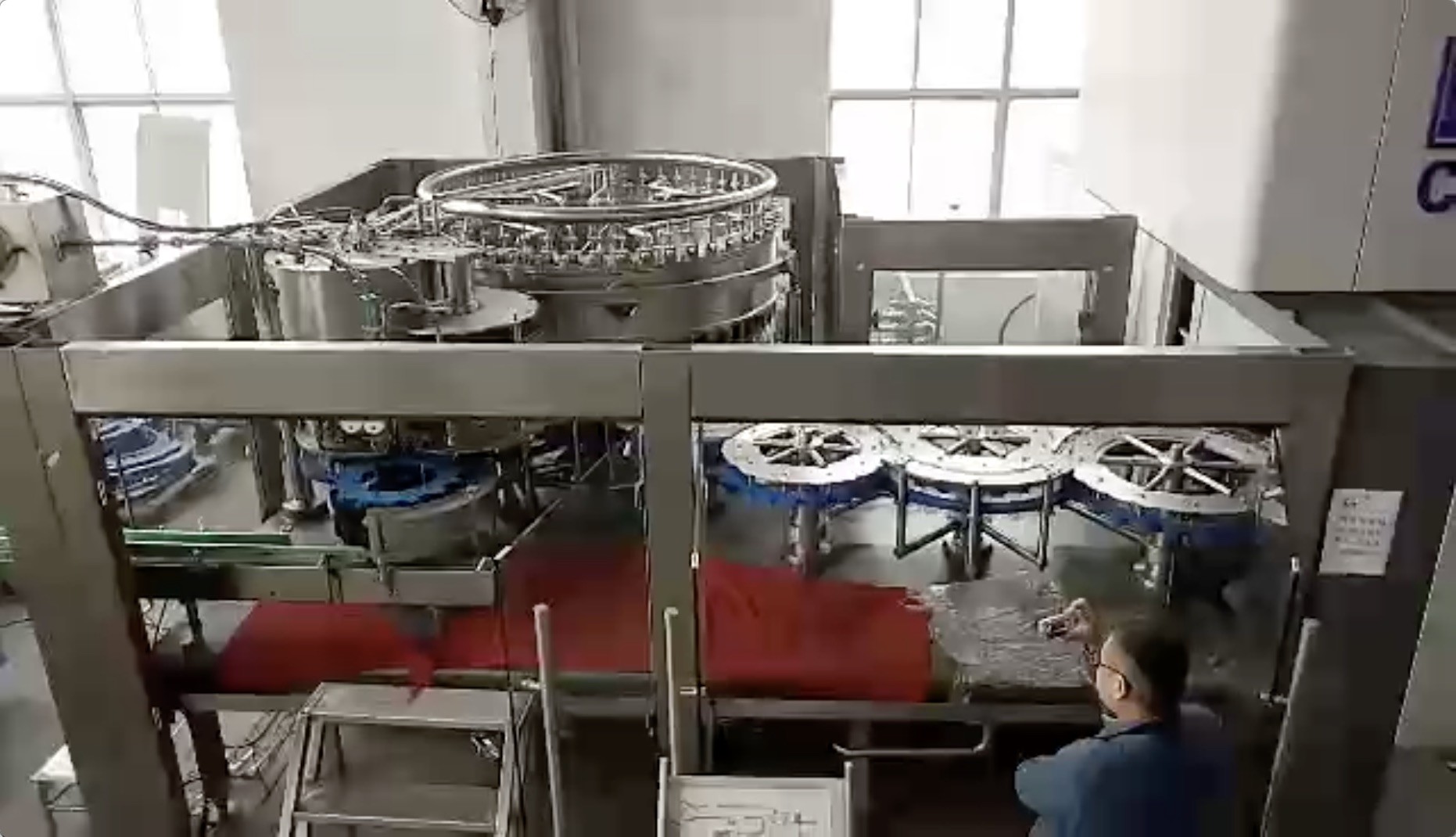

2000~18000BPH Automatic Rotary Bottle Carbonated Drink Production Line / Carbonated Drink Filling Line
Main Features
- The production line adopts the bottleneck clamping transmission technology, realizing automatic cleaning, filling, sealing, whole operation complete automatically and controlled by PLC , no manual operation.
- The whole machine design is reasonable. Beautiful appearance, convenient maintenance.
- The bottle conveying structure is adopted to make the bottle changing model more convenient, quick,no bottle no filling, and it has failure alarm function to protect the machines.
- The main engine adopts advanced PLC control technology, and the key electrical components adopt internationally famous products.which is efficient and stable.
Work Flow of Production Line
Syrup bath, beverage pump, double head filter, CO2 mixing, plate heat exchanger, cold water unit, beverage mixer, pipe and valve, control cabinet.
About water treatment
-
The brine processing system is equipped with PLC touch screen control and remote login.
The seawater processor system can be installed and tested abroad.
This machine has the advantages of high reliability, high efficiency, high automation and simple operation. In the case of no power supply, no electricity, overcurrent, leakage or short circuit, the brine processor is protected.
Precision filters help reverse osmosis. Activated carbon filter is used to remove pigment, odor and so on.
The brine processor/system is produced according to ISO and SGS standards, and the main component accessories are obtained CE certification.

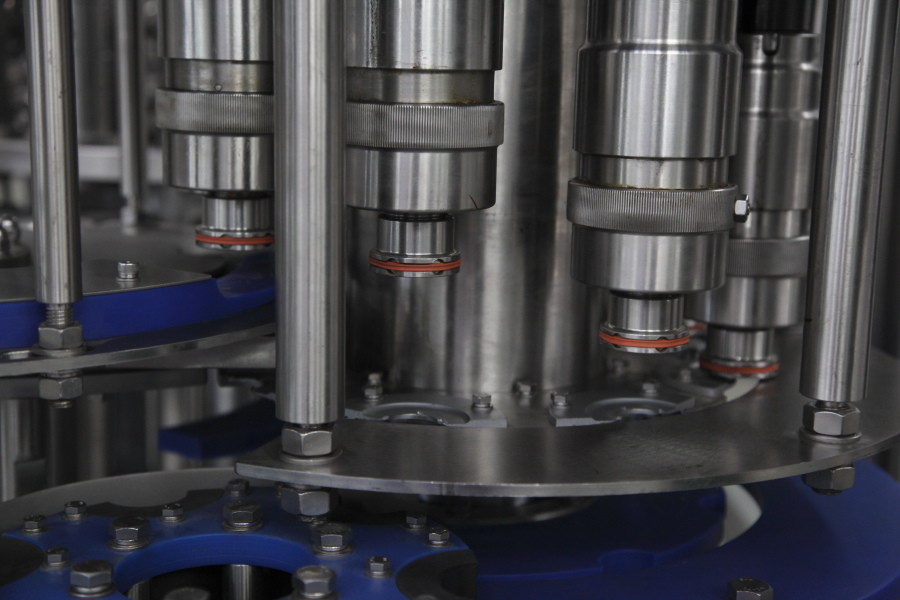

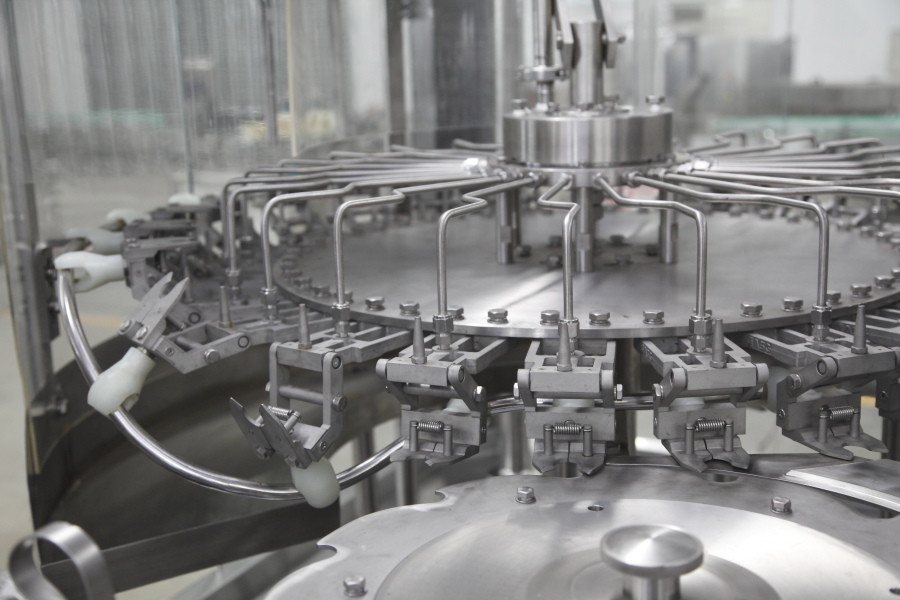

3-in-1 Carbonated Bottling machine
Parameters
Model |
MT 8-8-3 |
MT 16-13-6 |
MT 18-18-6 |
Washing No | 8 | 16 | 18 |
Filling No | 8 | 13 | 18 |
Capping No | 3 | 6 | 6 |
Capacity(500ml) | 3000BPH | 3000BPH | 5000BPH |
Installed Capacity | 3kw | 3.5 kw | 6kw |
Model |
MT 36-36-8 |
MT 33-33-10 |
MT 60-60-13 |
MT 50-50-15 |
Washing No | 36 | 33 | 60 | 50 |
Filling No | 36 | 33 | 60 | 50 |
Capping No | 8 | 10 | 13 | 15 |
Capacity(500ml) | 8000BPH | 13000BPH | 15000BPH | 18000BPH |
Installed Capacity | 6.8kw | 7.6kw | 8.3kw | 9.6kw |
Output Proucts
Usually we use wooden case, if customers have special requirements, we can use PE film to pack machine first,.
About Documents:
- Machine Quality Guarantee.
- Prodcut documens
- Complete set install & maintain instruction documents in English language.
Send us inquery as bellow ,we will make a business proposal for you in12 hours.
1. Your produce
2. capacity
3. package of product(, plastic bottle ,glass bottle : volume ,height ,neck diameter ,diameter of bottle or other please inform us of details)
-
