Click the buttonAutomatic Drinking Water Production Line 5 Gallon Mineral Water Filling Machine

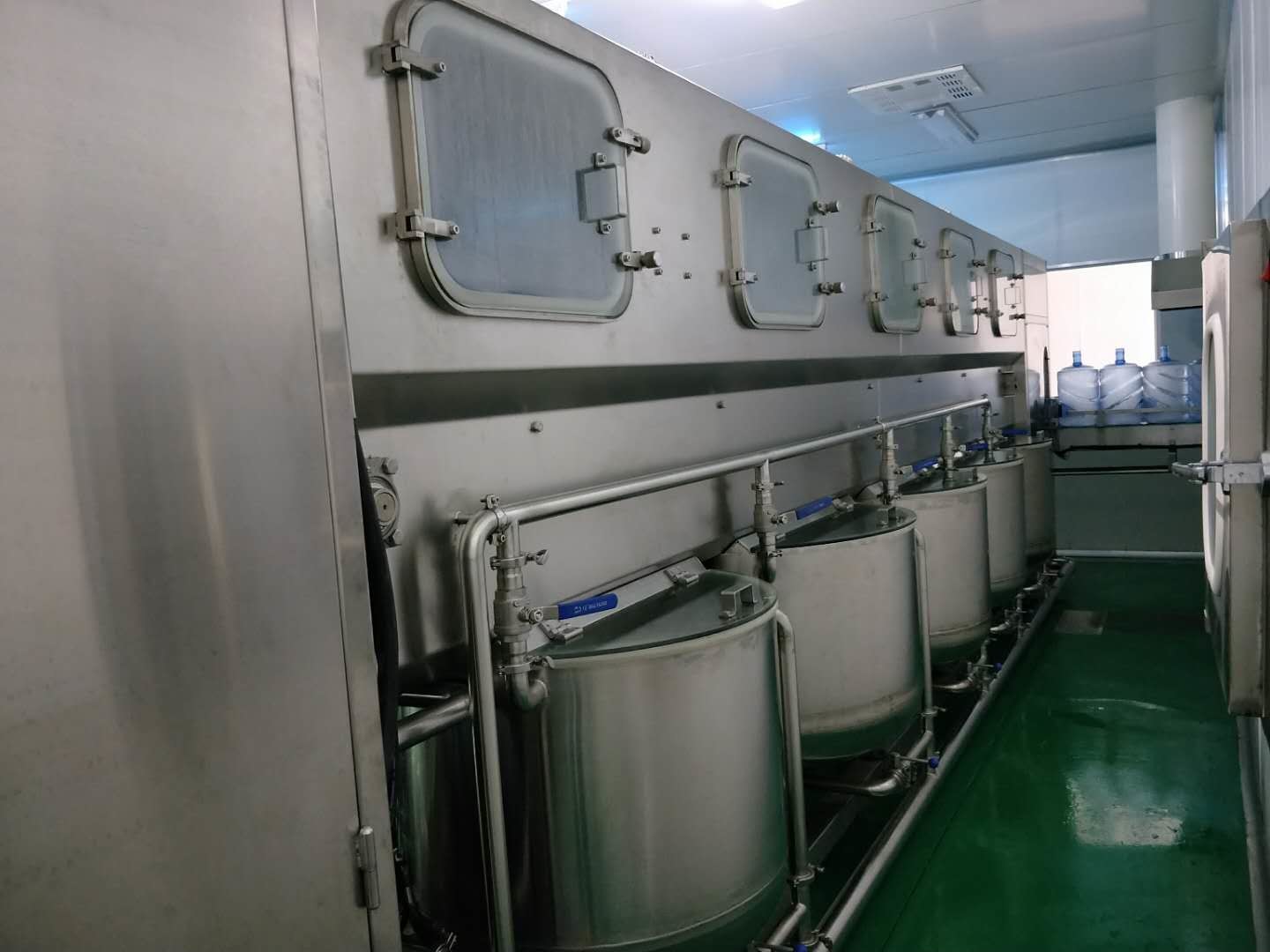

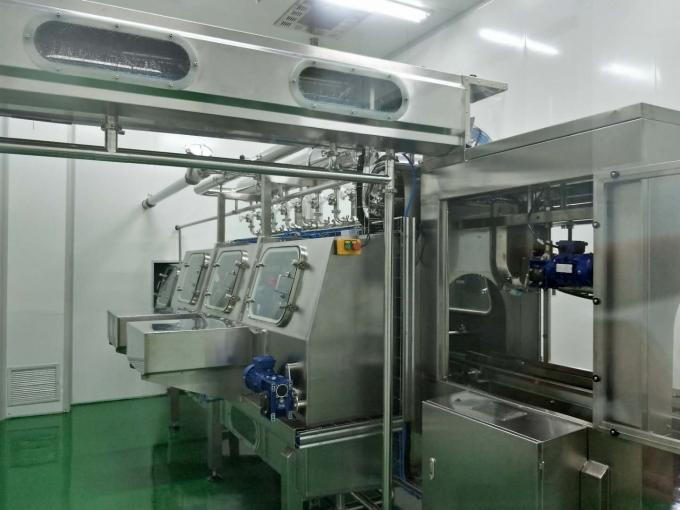

The production line is mainly used in the production of 3 gallons, 5 gallons of barreled water, which can be used for the production of mineral water, pure water, distilled water, and other drinking water.
It integrates washing bottles, filling and capping as a whole. It reduces the area of land and saves energy.
The device has a complete function, modern design and highly automated.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
Automation: | Fully Automatic | Driven Type: | BY Electric |
---|---|---|---|
Type: | Filling Machine | Voltage: | 220v/380v |
Place Of Origin: | Shanghai, China (Mainland) | Brand Name: | Qualipak |
Application: | Water ,Beverage, Medical,Juice | Model Number: | MT-32-32-32 |
Experience: | Over 15 Years | Certification: | CE, ISO9001 |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ODM: | YES |
CE, ISO Qualificate Automatic 5 Gallon Mineral Water Filling machine Production Line
- GERMANY TECH WITH CHINESE PRICE
- FOOD GRADE STAINLESS STEEL
- CE&ISO9001 CERTIFCATED
- FAMOUSE Brand COMPONENTS
- AUTOMATICLY PRODUCE CLEARN WATER WITH SIMPLELY ONE CLICK
► PRODUCT DESCRIPTION
The production line is mainly used in the production of 3 gallons, 5 gallons of barreled water, which can be used for the production of mineral water, pure water, distilled water, and other drinking water.
It integrates washing bottles, filling and capping as a whole. It reduces the area of land and saves energy.
The device has a complete function, modern design and highly automated.
The equipment is made of food grade stainless steel, which is easy to rinse and prevent rust.
We choose the more well-known OMRON and SIEMENS brand to ensure that the operation is stable.
► MAIN FEATURES
- The main electrical components come from SIEMENS and OMRON, as well as the AirTAC components of the gas inlet. The company provided the spray nozzle of the United States combined with the technical expertise of the inside and outside cleaning barrels.
- Use high quality food grade stainless steel to ensure high corrosion resistance and easy cleaning and ensure food safety
- No bottle and no filling, open the box automatically shut down, abnormal automatic alarm and shutdown, to ensure the safety of the person.
- The filling level is accurate and does not waste water.
- The machine is compact in design and small in area. It is suitable for medium and large manufacturers with high efficiency and sensitive response.
- The high degree of automation ensures the stability and reliability of the fully automatic barrel type filling line of the whole machine (machine, electricity and gas).
Model |
MT-150 |
MT-250 |
MT-450 |
MT-600 |
MT-900 |
MT-1200 |
Filling Heads |
1 |
2 |
3 |
4 |
6 |
8 |
Volume(L) |
18.9 |
|||||
Barrel Size(mm) |
φ 260× 490 |
|||||
capacity(b/h) |
125-155 |
245-310 |
450-500 |
550-650 |
750-850 |
150-1250 |
Pressure for Gas (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.6 |
0.6 |
Consumption For Gas (m 3 /min) |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
1.5 |
Power(kw) |
1.38 |
1.75 |
3.8 |
7.5 |
9 |
13.5 |
Voltage(V) |
380V/50Hz |
|||||
Weight(kg) |
680 |
1200 |
1600 |
2000 |

► OUTPUT PRODUCT SAMPLE
► PACKAGING &DELIVER
Outstanding Wooden Case Packing &Delivery by Containers
► OUR SERVICE
- We supply the turnkey project. Only if you need it, we will make a plan for you to complete production and delivery.
- Our company has a professional design team and has over 15 years of production experience. Our engineers can draw bottle samples and flow charts, and design your workshop for you.
- We Offer you the best business plan for your various beverage production
- What kind of drink do you want to produce, how much is your capacity (for how many hours a bottle)? What is the bottle material, pet or glass, etc.?
- We delivery engineers to help to install, debug and train
- We provide the necessary documents under the machine: machine layout, electrical drawings, equipment operation instructions, general user manuals / maintenance books
