Automatic Pasteurized Milk Processing Line , Yogurt Production Line Equipment 6000-10000LPH
Unlike general manufacturing, we have more than 15 years of practical production experience and have the ability to independently develop, design, produce prouction line for dairy products including sour milk, yogurt, fresh pure milk, flavored milk, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on.
|Condition:||New||Name:||Yogurt Processing Plant|
|Brand Name:||Qualipak||Model Number:||MT-D150|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas|

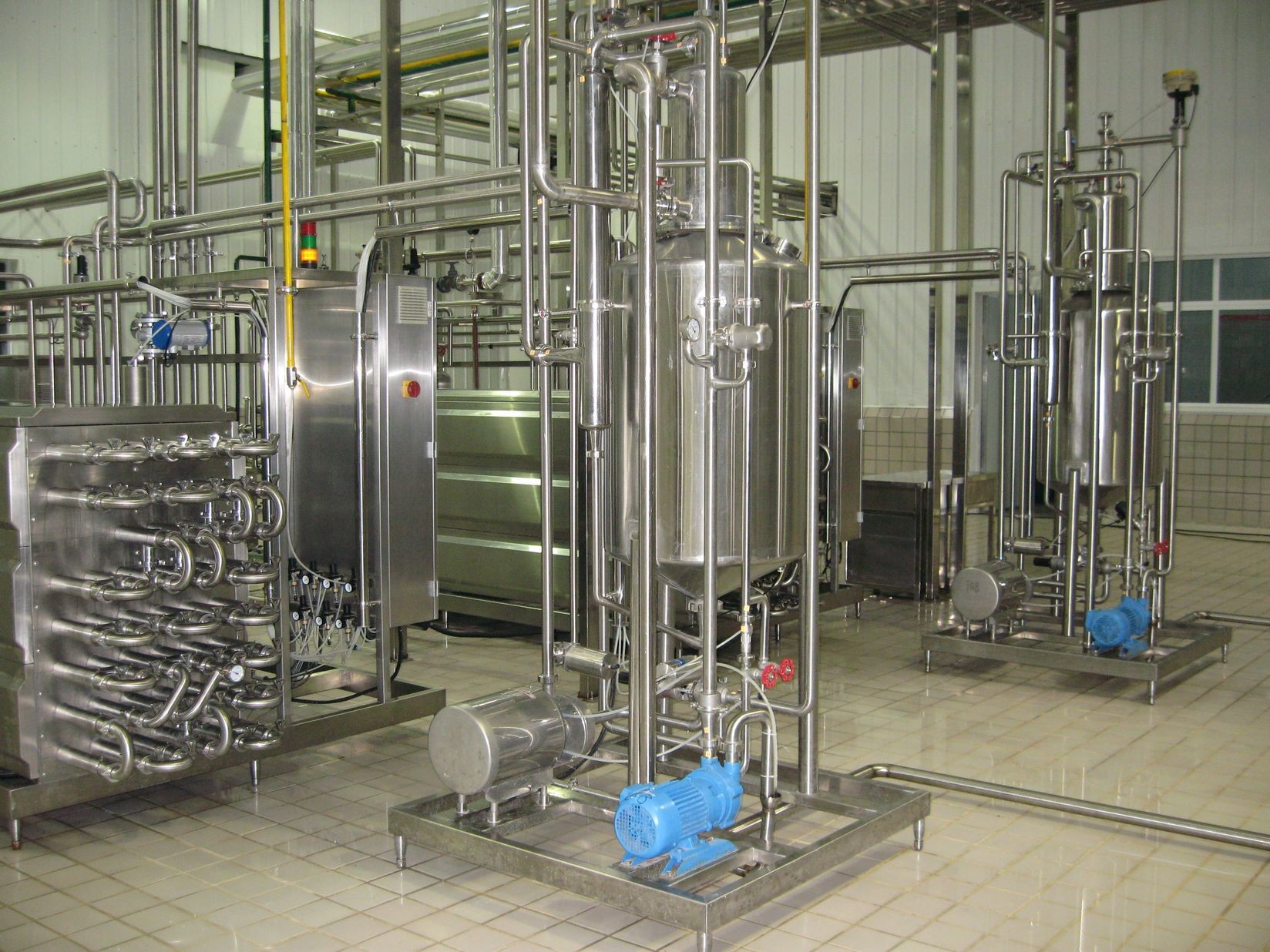

6000LPH -10000LPH Automatic UHT / pasteurized milk processing line / yogurt processing plant
This Dairy processing line is widely used to produce several kinds of milk products in the market,
including standardized milk ,whole milk, skimmed milk with variouse of fat contents.
The main feature of Production line:
- Supports both fresh milk and powder milk.
- Supports several procedure method including pasteurization or HTST pasteurizer or UHT processing.
- supports different packaging way including plastic bottles, glass bottles, plastic pouches, plastic cups, roof top box, pre-pak pouches , pak etc.
According to the difference of raw materials, production methods and packaging, we use different production processes,commonly include the following steps:
Milk Reception → Pasteurization → Homogenization → Yogurt making →Milk Storage → Packing → Refrigeration → Hot water generator → Laboratory → Install and commissioning.

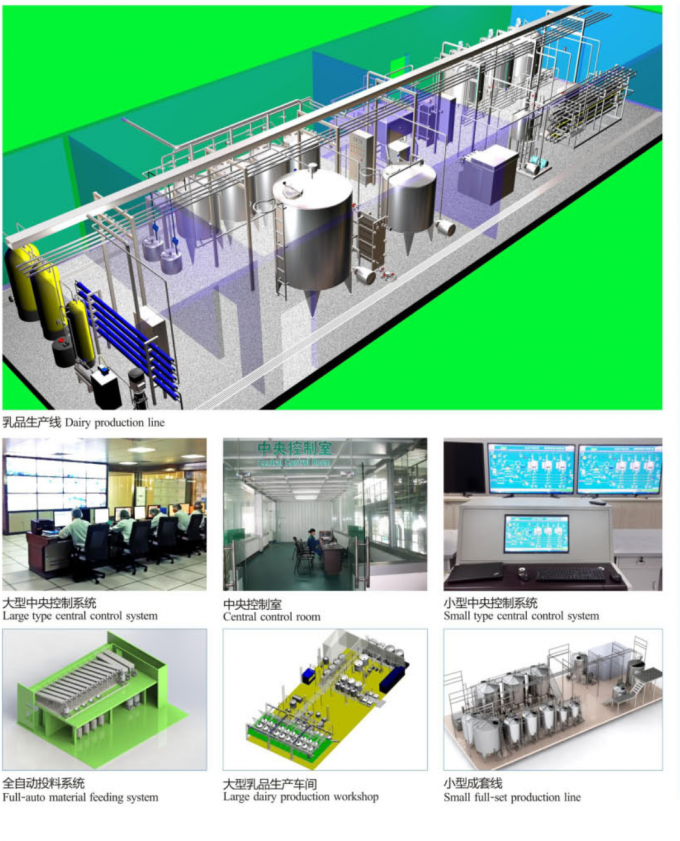

Unlike general manufacturing, we have more than 15 years of practical production experience and have the ability to independently develop, design, produce prouction line for dairy products including sour milk, yogurt, fresh pure milk, flavored milk, milk drinking and ice cream, butter, soy milk, tea drinking, energy drinking and so on. The main equipments of our production line is as follows:
1. Milk reception or powder & water mixing unit.
The main application of this product is to prepare and mix the milk.it support both fresh milk and powder milk,
2. Mixing and sugar melting unit.
it has Mixing machine and heat system,the main application is to mix and melt the sugar and supply hot water, before taken to mixing tank (blending tank) the syrup will be cooled.

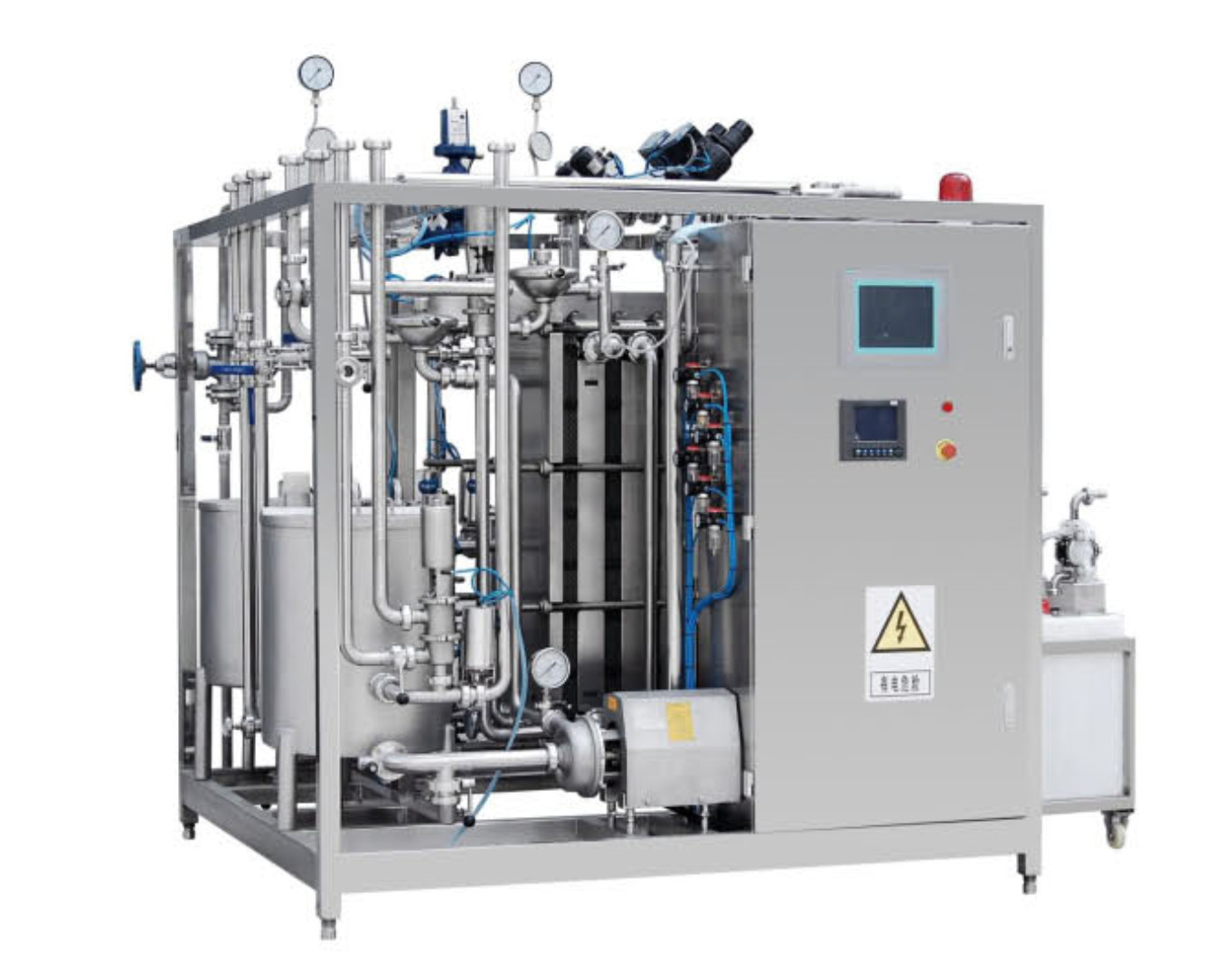

3. Pasteurizer and homogenizer.
This part is to kill the bacteria, thus ensuring the safety of products.The homogenizer is used to make the products more homogeneous which can help to improve the quality and prolong the shelf life of products.The degasser is used to remove the air that is mixed in the product. According to different products types and filling types, the pasteurizer is strictly chosen to suit the plant.
4. Storage or yogurt producing unit.
5. Filling or packing unit.
we can pack the milk with different types automaticlly including all kinds of bottle such as PRT bottle, HDPE bottle, glass bottle, gable bottle, , plastic bag, and plastic cups and so on.
6. CIP cleaning system.
With automatic and semi auomatic option, you can make your own decesion for ecnomic case or high advanced case.
7. After treatment equipments including conveyer, package or pallet etc.
8.Assistant equipments like steam boiler, air compressor and cold water unit etc.
9. Other Materials for the product pipes , power pipes and also electrical .
|Standard Equipment list of DAIRY PRODUCTION LINE|
|NO.||NAME||MAIN TECHNOLOGY PARAMETER|
|2||milk receiving tank||SUS304 single layer,CIP cleaning ball|
|3||milk pump||SUS304 ,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished|
|4||double filter||SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh|
|5||dish separator||auto residue discharge|
|6||cooling tank||SUS304 stainless steel,alveolate jacket,attached with compressor|
|7||milk pump||SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished|
|8||blending tank||SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet|
|9||milk pump||SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished|
|10||mini set of plate-type heat exchanger||SUS304 stainless steel,with two stages,|
|11||milk pump||SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished|

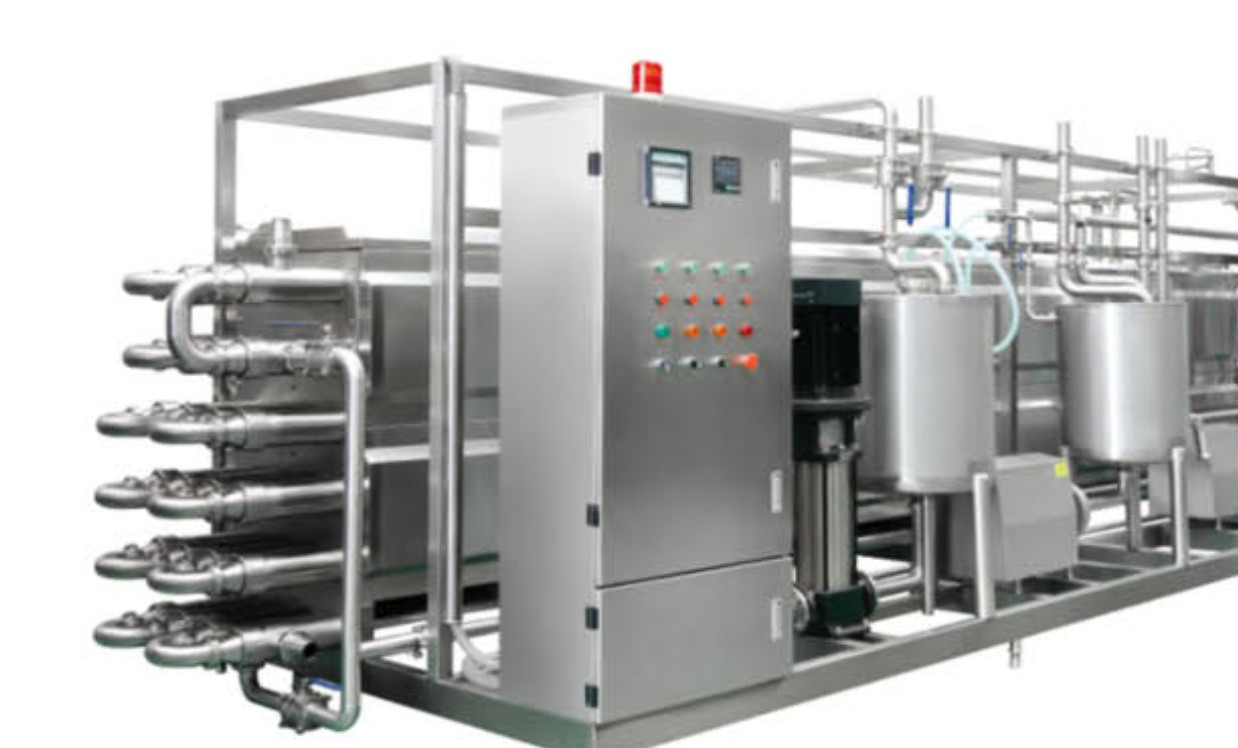

|12||UHT sterilizer||tub-type,sterilizing temperature 137 C,holding time 4S,full automatic control|
|13||high pressure homogenizer||40MPa,(starting box included)|
|15||semi-auto CIP system||outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L*2 acid/alcali Concentrate tanks|
|16||CIP return pump||SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished|
|17||installation components||For processing line installation and commissioning|
