Click the buttonComplete Carbonated Beverage Filling Line 6000-12000 BPH For Glass Bottle
This machine adopts the omron programmable controller (PLC) to control the whole process of production , and the input bottle chain can change its speed through the frequency converter to ensure the whole process flow and efficiency.
The operation of each unit is detected by optoelectronic components. The automation is high and the operation is simple.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Carbonated Drink Filling Machine | Condition: | New |
---|---|---|---|
Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Automatic Grade: | Semi-Automatic |
Product Name: | Drinking Water Bottling Plant For Sale | Filling Range: | 200-2500ml |
Usage: | Filling Machine | Warranty: | 1 Year |

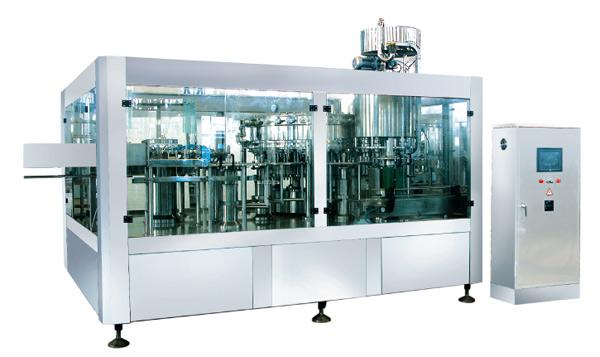

Complete Carbonated Beverage Filling Line 6000-12000 BPH For Glass Bottle
Plastic bottle carbonated beverage filling and filling machine production line is mainly used for filling carbonated drinks, functional drinks, water, juice,it has 3 basic functions, including washing, filling, sealing. The machine filling method is gravity-type and micro-pressure filling, its advantage is that the machine is more stable than the ordinary filling machine, the performance is better.
Flow Chart:
We have professional team to design the whole production line for you ,contact us for more details.
- Bottle production line PET Resin –Injection moulding machine -Bottle blowing machine –PET bottle
- Water treatment system Raw water–Pump–Silica sand filter–Carbon filter–Water softner–Reverse Osmosis -Ozone generator–Finished water tank
- Filling&Packing System Bottle Blowing machine–Air conveyor–Washing,filling,capping 3in1 machine–Light checker–Blow dryer–Dater printer–Lableing machine –Packing machine -Stock
Proudct Features
- The device is designed with good expansibility, if add the heating control device, it becomes the hot filling machine.
- The bottle type adjustment of each unit is realized by turning the handle, which is simple and quick.
- The filling method adopts new micro-pressure filling to make the filling speed faster and more stable. Compared with similar models, it has higher capacity and greater efficiency.
- This machine adopts the omron programmable controller (PLC) to control the whole process of production , and the input bottle chain can change its speed through the frequency converter to ensure the whole process flow and efficiency.
- The operation of each unit is detected by optoelectronic components. The automation is high and the operation is simple.
- It is necessary to change the filling unit to low vacuum filling method and equal seepage filling method. The low vacuum filling method (Z type machine) is suitable for glass bottle filling wine and soy sauce, etc. The sealing method can be aluminum cover and plastic cap.
- The PET bottle is filled with the isosmotic filling method (d-type machine), and the plastic bottle contains CO2 drinks. Is the ideal beverage choice equipment.
Product Specifications
Model: | MT32-32-12 | MT40-40-15 | MT50-50-15 | DCGF60-60-15 |
Capacity: 500ml | 8000-10000 | 10000-15000 | 16000-20000bph | 20000-24000bph |
Bottle shape: | round or square | |||
PET bottle: (mm) | (Bottle Diameter): φ50-φ110mm (Height): 150-310mm (Volume: 250ml -2000ml) | |||
Cap: | Plastic screw cap | |||
Filling precision: | ≤±5mm | |||
Power(KW) | 6.2 | 7.5 | 8.5 | 9.8 |
Overall size:(mm) | 3880*2200*2250 | 4000*2250*2250 | 5500*3500*2250 | 6500*5500*2250 |
Weight: (KG) | 6000 | 7000 | 8200 | 9500 |

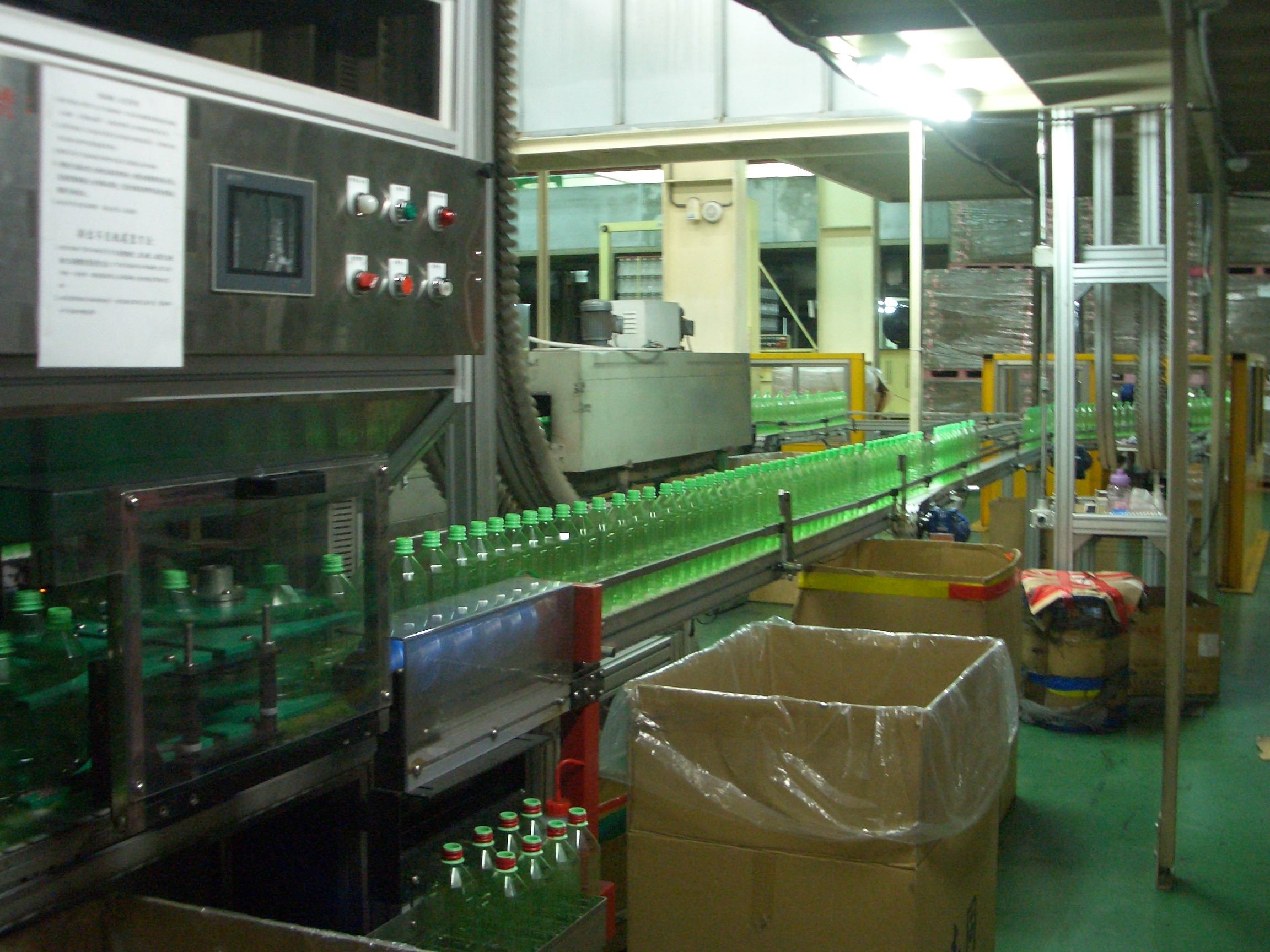

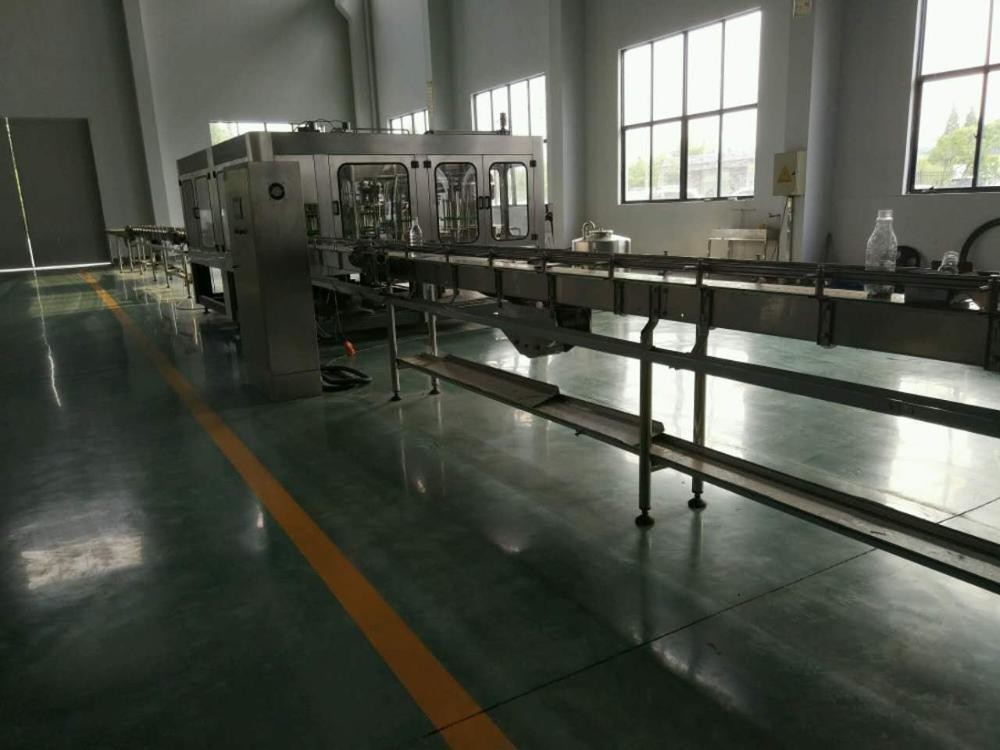

Product Show
Main equipments:
juice extractor, water treatment plant, CIP cleaning system, sterilization machine, mixing tank, filling equipment.
Output Product
Our Service
We have a special after-sales department to be responsible for your after-sales problems. If you have any questions, please contact our after-sales service directly.
After the equipment arrives at the customer workshop, the equipment will be arranged according to the provided plane. We will arrange equipment installation, commissioning and trial production for experienced technicians, and make the equipment meet the production capacity of the production line. The buyer needs to provide air tickets and accommodation for our engineers, as well as salary.
. after-sales
We promise to provide quality guarantee for 24 months. If any problem occurs during the warranty period, we will provide the vulnerable parts free of charge. After the guarantee period, we will provide the accessories at the lowest price.
Our company provides technical training for customers. The training includes the structure and maintenance of the equipment, the control and operation of the equipment, and training your skilled workers to solve common problems by inquiring relevant documents.
Contact Us
Send us inquery now,our professional team will contact with you with business proposal for your business!
-
