Name: | Ro Water Treatment Machine | Application: | Mineral Water , Pure Water , Drinking Water |
---|---|---|---|
Capacity: | 1TL/H – 20T/H | Material: | Stainless Steel |
Brand: | Qualipak | Membrane: | DOW ,can Be Customized According To Demands |

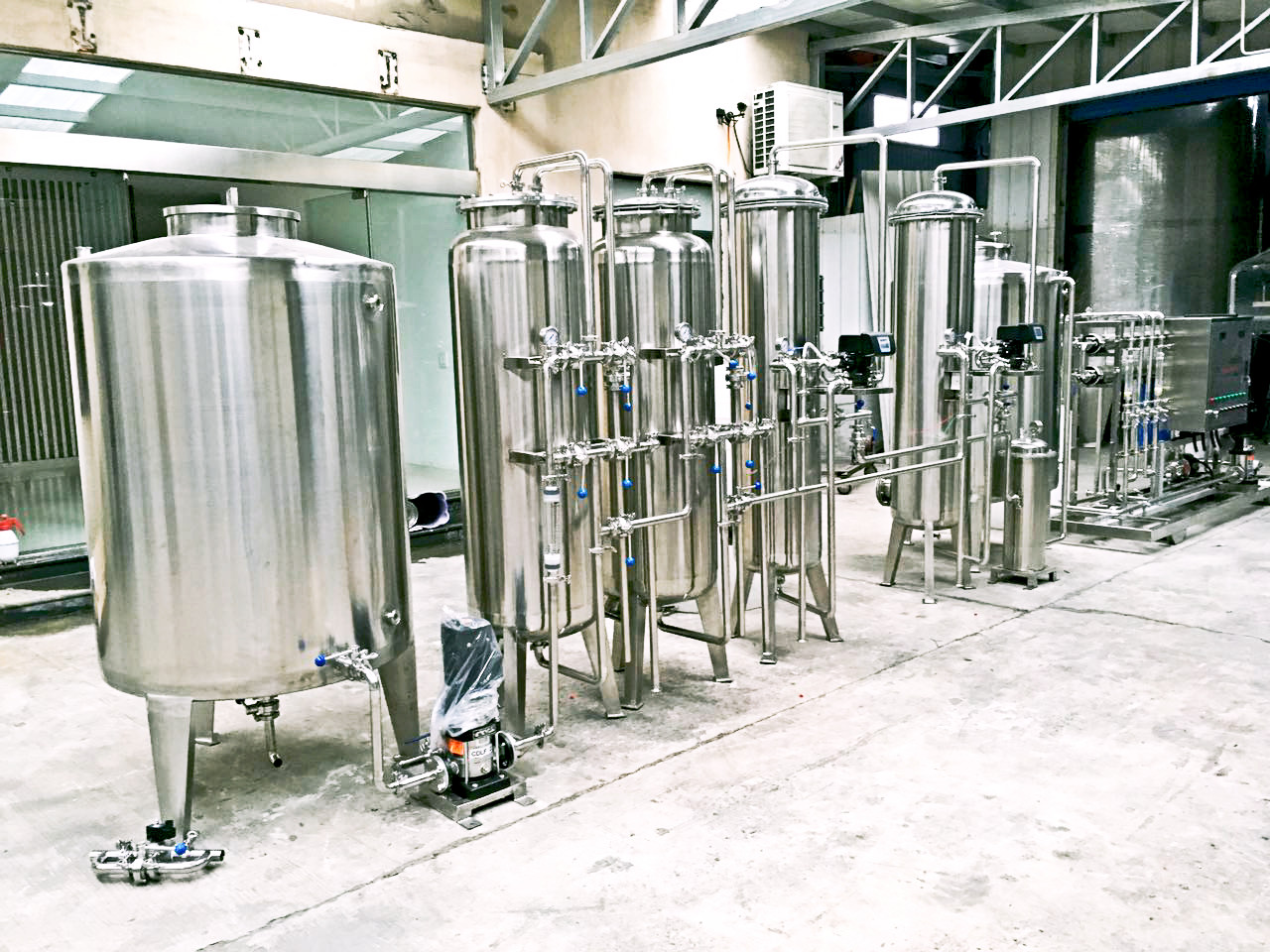

Drinking Mineral RO Water Treatment Systems 1T – 5T / H Fully Automatic CE Approved
Flow chat
raw water→raw water tank→ raw water pump→ sand filter→ carbon filter→softener (optional)→ security filter→ high pressure pump→ reverse osmosis system→ UV sterilizer (ozone generator) →pure water storage tank
Product Advantage:
- The reverse osmosis system is the key of the whole system. The filtering accuracy of reverse osmosis membrane is 0.0 0 0 1 micron, and the desalination rate is 98-99%, except all the salt and bacteria. The effluent conductivity is 10 mu s/cm. After running for a period of time, you need to clean it. We designed an on-site cleaning system for the RO device, and the customer did not need to remove all the membranes to clean. We only use international brands, efficient economies such as dow, Hyde, GE, etc. The working life is more than three years.
- Activated carbon filter – activated carbon: China's active carbon pore structure developed, larger than surface area, good adsorption performance, small reservoir strength, good chemical stability.
- Pump brand in China, the most famous brand, Nanfang pump, power foot, long service life.
- Quartz sand filter quartz sand, using natural high quality quartz sand as raw material, fast filtration rate, no mixing layer, good filtration effect, water quality stable, no blockage, no lumps.
- There are two ways to kill bacteria: uv sterilization and ozone sterilization. According to the water quality report, we will give professional advice.
- In order to make the machine work better, the thickness of the pretreatment tank is different, and the tonnage is from 1mm to 10mm thick. Materials include UVC.SUS304.FRP, etc.
- Aseptic tank: the water storage tank can choose the aseptic tank and the ordinary can, according to the customer needs, not necessarily expensive, good, the most suitable is the best.
General parameters
Flow | Model | Thickness | Dimension |
4 M3/H | SUS400 | 2mm | 400*1850 |
6 M3/H | SUS500 | 2mm | 500*2100 |
9 M3/H | SUS600 | 3mm | 600*2500 |
10 M3/H | SUS700 | 3mm | 700*2600 |
12 M3/H | SUS800 | 3mm | 800*2600 |
14 M3/H | SUS1000 | 3.5mm | 1000*2700 |
16 M3/H | SUS1100 | 3.5mm | 1100*2700 |
18 M3/H | SUS1200 | 3.5mm | 1200*2700 |
22 M3/H | SUS1400 | 4mm | 1400*2800 |
30 M3/H | SUS1600 | 4.5mm | 1600*2900 |
60 M3/H | SUS2000 | 5mm | 2000*3500 |
80 M3/H | SUS2500 | 6mm | 2500*5000 |
How we cooperate
We provide turn-key service, all what you need do is to Choose us and Trust your decision.
1. Pre-Sales Service
* Inquiry and consulting.
* Design appropriate system according to water quality and applicaton.
* Equipment testing before delivery
2. After-sales Service
* Provide all needed technical drawings,( layout drawing, P&I drawing, electric drawing, etc)
* Engineers available to service machinery overseas
* Training how to instal the machine, training how to use the machine

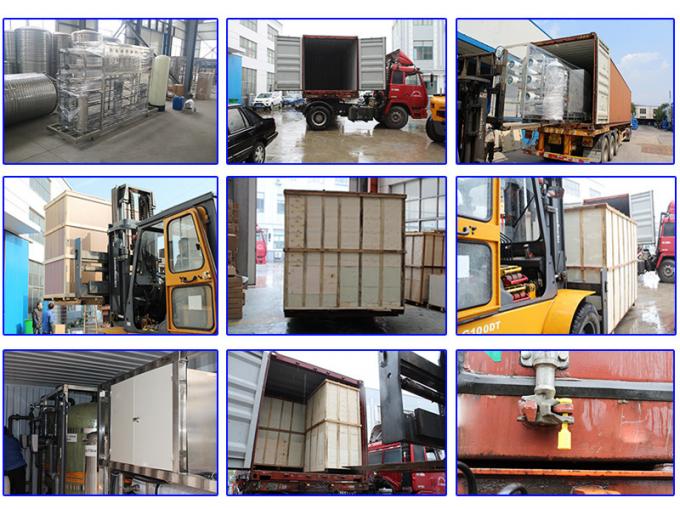

3. Delivery
For a small system, it only takes one week to produce, 5weeks at most for bigger system. But shipping and customos clearance take longer time, usually 5-7weeks. Please take this into consideration.
1. All equipment are packed with wooden box or wrapping film.
2. All parts are fastened in container, guarantee that no damage while shipping.
-
