Click the buttonDrinking Water Treatment Systems Reverse Osmosis 2 Stage Water Purification Plant
Reverse osmosis system is widely used in beverage and food industry ,it is easy to operate, and save low labor cost, and low operation cost. It is suitable for industires.The reverse osmosis system is mainly composed of high pressure pump, reverse osmosis system and chemical cleaning device.
We're here to help:Easy ways to get the answers you need.
Overview
| Name: | Drinking Water Treatment Machine | Brand Name: | Qualipak |
|---|---|---|---|
| Model Number: | MT-500 | Product Name: | Automatic Bottled Drinking Water Treatment Plant |
Automatic bottled drinking water treatment plant
Product Introduction
Reverse osmosis system is widely used in beverage and food industry ,it is easy to operate, and save low labor cost, and low operation cost. It is suitable for industires.The reverse osmosis system is mainly composed of high pressure pump, reverse osmosis system and chemical cleaning device.
our equipment equipped with Dow membrane and Grundfos high-pressure pump, high efficiency, good performance.
Capability
- With the Dow film, the high desalination rate is 97-98%, and the use time is long.
- Our RO equipment can effectively remove more than 98% of the organic matter and bacteria, more than 98% of the heat source.
- PLCl control, LG touch screen, microcomputer monitoring and flushing effect, can accurately control the washing time
- We will choose SUS304 material or PVC pipeline according to the actual situation, and the customer can give your advice.

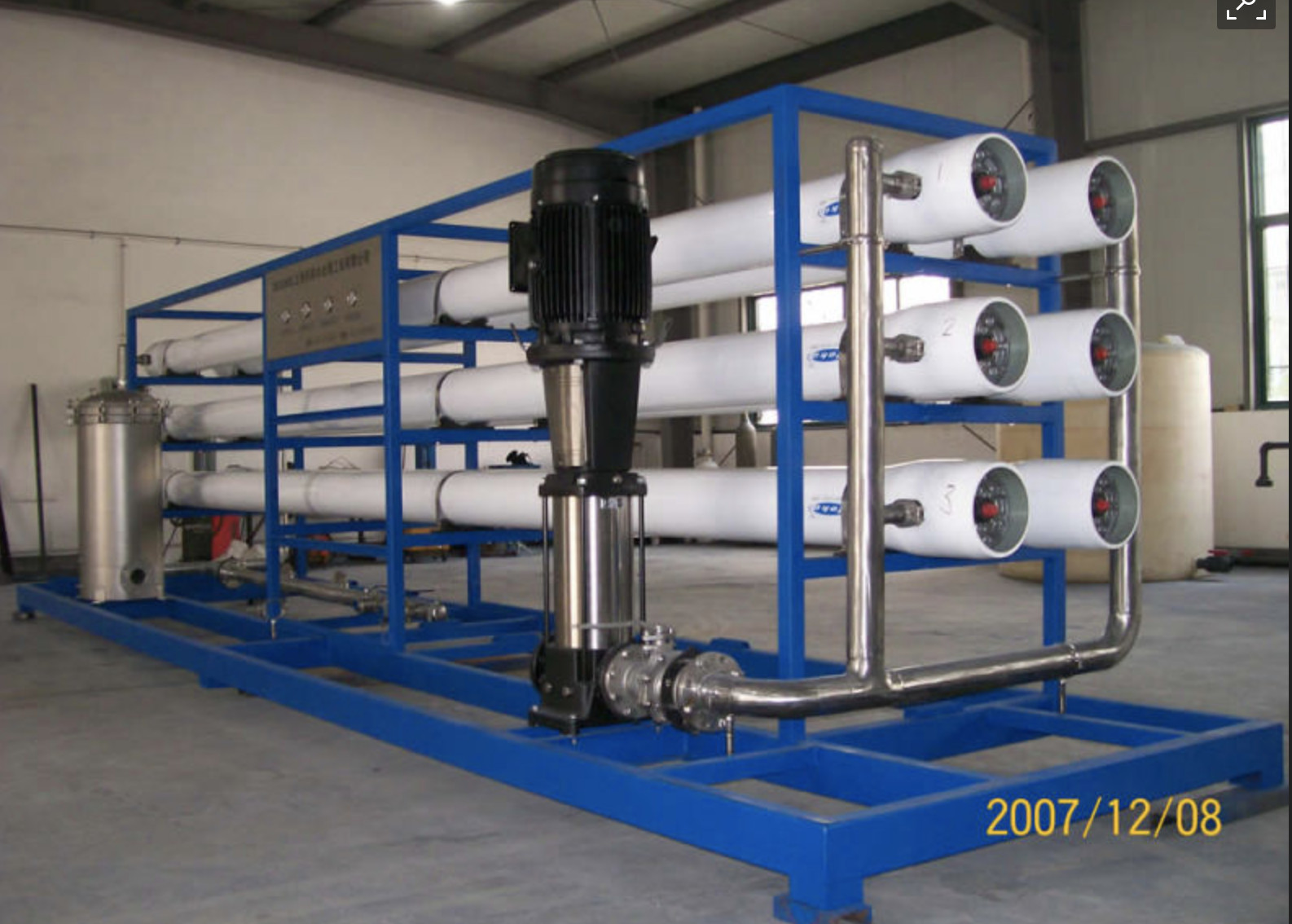

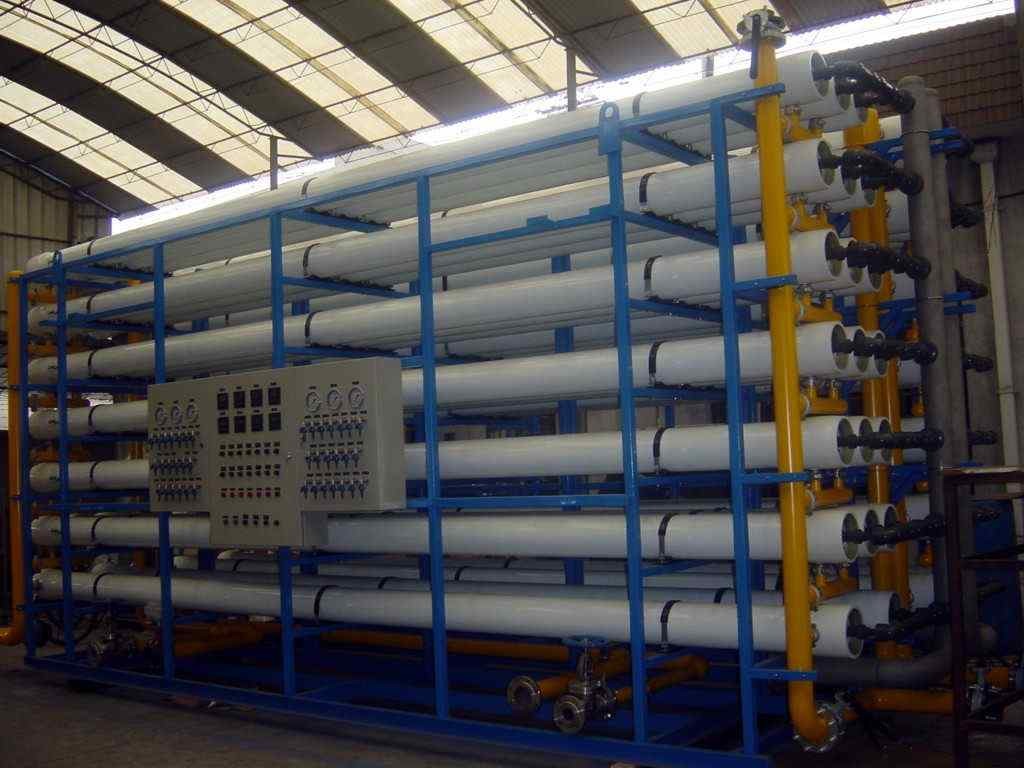

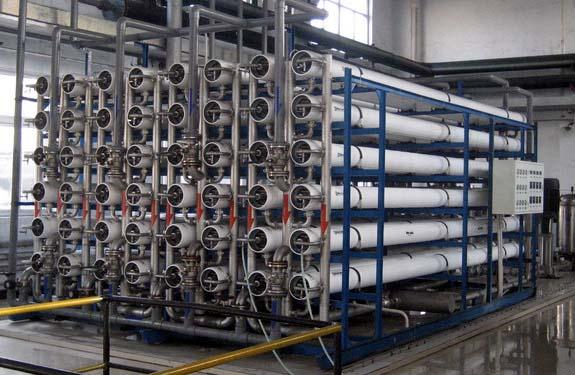

Product show
Parameters
|
capacity (T/H) |
Working pressure (MPa) |
Inlet size(MM) |
Membrane (feet) |
Membrane qty |
Recovery rate |
power (KW) |
|
| MT-600L | 0.6 | 1.0-1.6 | DN20 | 60×60 | 2 | 60% | 1.6 |
| MT-760L | 0.76 | 1.0-1.6 | DN26 | 60×60 | 4 | 60% | 2.2 |
| MT-1000L | 1.0 | 1.0-1.6 | DN26 | 60×60 | 6 | 60% | 2.2 |
| MT-1600L | 1.6 | 1.0-1.6 | DN26 | 60×60 | 6 | 60% | 4.0 |
| MT-2000L | 2.0 | 1.0-1.6 | DN26 | 60×60 | 8 | 60% | 4.0 |
| MT-2.6T | 2.6 | 1.0-1.6 | DN42 | 60×60 | 10 | 66% | 6.0 |
| MT-4T | 4.0 | 1.0-1.6 | DN42 | 60×60 | 12 | 66% | 6.0 |
| MT-6T | 6.0 | 1.0-1.6 | DN60 | 80×60 | 6 | 66% | 6.6 |
| MT-10T | 10.0 | 1.0-1.6 | DN60 | 80×60 | 10 | 76% | 11 |
| MT-16T | 16.0 | 1.0-1.6 | DN60 | 80×60 | 16 | 76% | 16 |
| MT-20T | 20.0 | 1.0-1.6 | DN66 | 80×60 | 20 | 76% | 18.6 |
Packaging & Shipping
Service
- 1 ) the engineers can arrange for the installation, debugging and training of the customers.
- 2 ) free replacement for 1 years, and cost price for sale after 1 years
- 3 ) design and manufacture according to the local conditions.
- 4 ) acceptable OEM / ODM
Send us the quote Now! we will make a quotation for you in 12 hours!
