Click the buttonRound / Square Bottle Beverage Production Equipment , Drinking Beverage Filling Machine
The carbonated beverage filler is mainly used for filling carbonated drinks, cola, iced tea, carbonated beverage such as carbonated mineral water washing,mineral water, spring water, pure water.fruit juice, oil & vinegar, wine, fruit wine, filling and sealing, Used for filling various non-carbonated water, such as still water, drinking water. Mineral water, mineral water, flavored water.etc
It can provide water processor, bottle blowing machine, bottling machine, labeling machine, packing machine, etc.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Beverage Bottling Machine | Condition: | New |
---|---|---|---|
Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Packaging Material: | Glass, Metal, Paper, Plastic |
Automatic Grade: | Automatic | Certification: | CE, ISO9001, SGS, BV, TUV |
Machine Capicity: | 2000-24000bph (Customized) | Bottle Size: | 200-2500ml (Customized) |
Bottle Shape: | Round Or Square | Export Markets: | Global Market |
Lifetime: | Normally Used 8 To 10 Years |

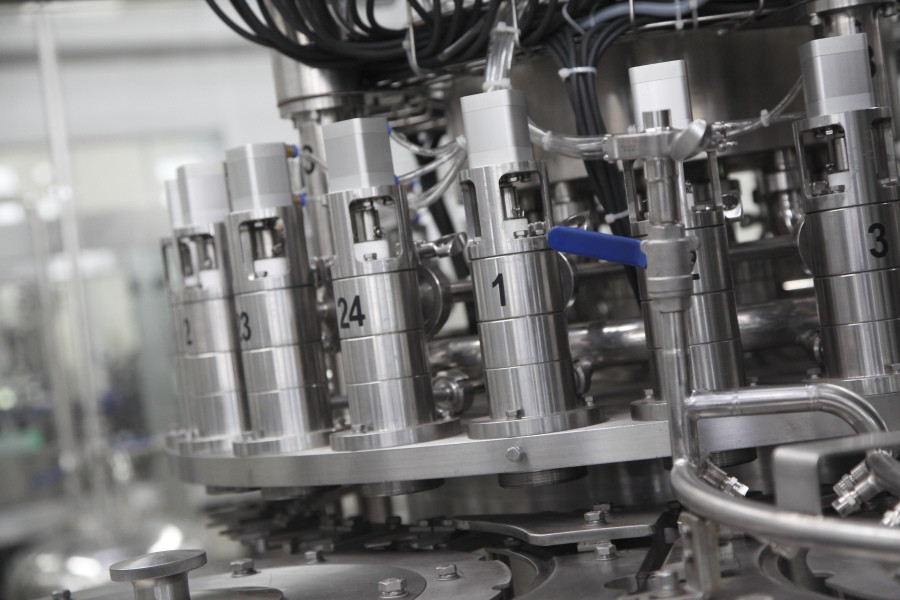

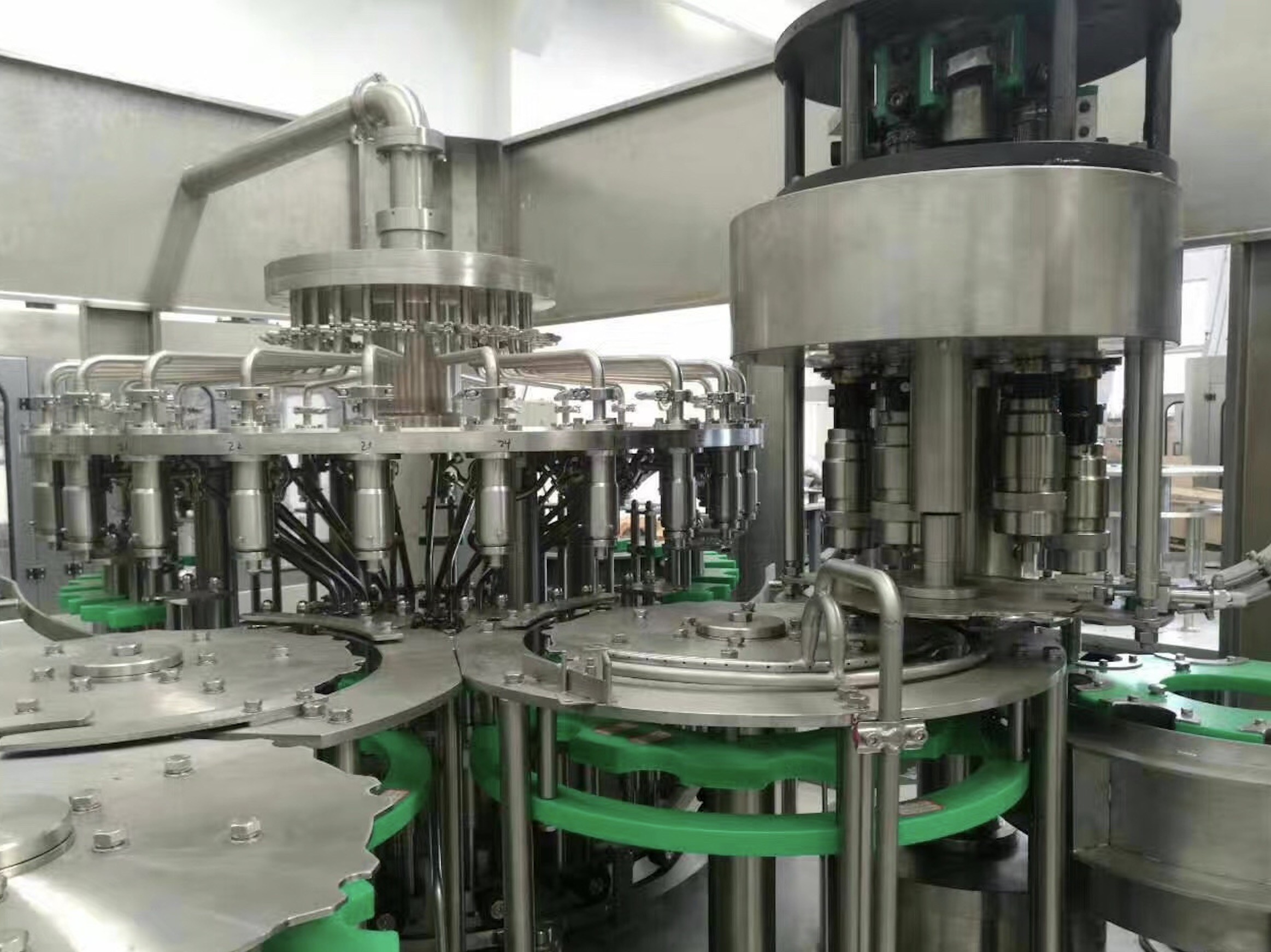

Drinking Round or Square Bottle Beverage Filling Line/Drinking Beverage Filling Machine
The carbonated beverage filler is mainly used for filling carbonated drinks, cola, iced tea, carbonated beverage such as carbonated mineral water washing,mineral water, spring water, pure water.fruit juice, oil & vinegar, wine, fruit wine, filling and sealing,
Advantages
- Used for filling various non-carbonated water, such as still water, drinking water. Mineral water, mineral water, flavored water.etc
- It can provide water processor, bottle blowing machine, bottling machine, labeling machine, packing machine, etc.
- The design of this line is unique, the style is novel, the function is complete, multi-function, the operation is convenient,
- It adopt the bottleneck clamping transmission technology, it has fully automation processing for washing, filling and capping. –
- Equipped with the precise pressure control of CO2 to keep the liquid level stable and accurate.
- intelligent safety of product design, automatic alarm and humanized design in case of no bottle, bottle shortage, bottle loss, bottle cap shortage, overload, etc. The machine has the advantages of high reliability, high efficiency, high automation and simple operation.
- Automatic 3 in 1 Water Bottling Machine adopt Rinsing/Filling/Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304 or SUS316.
- The normal production capacity is 2000-24000bph, 0.3-2l PET bottle.
- Automatic 31 water filling machine adopts cleaning/filling/sealing technology, PLC control, touch screen, it is mainly by SUS304 and SUS316.
- Key electrical parts use mitsubishi, omron, Siemens.
- The filling accuracy is less than 1%.
Technical Data
Model |
MT 8-8-3 |
MT 16-13-6 |
MT 18-18-6 |
Washing No | 8 | 16 | 18 |
Filling No | 8 | 13 | 18 |
Capping No | 3 | 6 | 6 |
Capacity(500ml) | 3000BPH | 3000BPH | 5000BPH |
Installed Capacity | 3kw | 3.5 kw |
6kw
|
- Ensure that the customer's employees are able to use the equipment normally, and the warranty is free for one year, and it is best to provide vulnerable parts and other spare parts after one year.
- We provide 12 months warranty and life time technical support. Besides, we also provide with training, including equipment structure, maintenance and operation.
- Your business relationship with us will be kept confidential to any third party.
- We guarantee that if the customer technical team cannot solve the problem, the after-sales department will help you solve the problem by telephone, and we will arrange the engineers to your factory to solve the problem when necessary. During the warranty period, the advanced technicians shall strictly observe the seller's requirements for operating equipment and maintenance, and find out the common faults and troubleshooting in time;
- We will provide you with a series of services including design, production, delivery, installation and debugging. Our after-sales service department will reply all your inquiries in English.
Packaging & Shipping
Normal delivery date: 30days (we can expedite production in case of special circumstances)
Packing: international standard export fumigation wooden case packing;
Certificate
We are CE&ISO9001 certificated and we have more than 15 years exprience for packaging machine manufacture.
Our market
Our machine has been sold to more than 60 countries,including asia countries ,middle east countries ,south american , south african etc, our customers are satisfied with our service and products.
Contact us
Send your Inquery now! we will make perfect business proposal for you in 24hours!
-
