Click the buttonSmall Bottle Beverage Filling Line Juice Energy Drink Soda Water Filling Machine
3 in 1 beverage filliing Machine is mainly used for the filling and packing of beverage. This machine is a combination of rinsing, filling and sealing. It is suitable for PET or other plastic bottles. The micro negative pressure filling technology is used to make the filling more effective, more stable and more productive.
The high degree of automation and easy operation are the advatange of this machine ,it si best choice for the beverage enterprise.
We're here to help:Easy ways to get the answers you need.
Overview
| Type: | Juice Bottle Filling Machine | Condition: | New |
|---|---|---|---|
| Application: | Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles | Automatic Grade: | Automatic |
| Driven Type: | Electric | Certification: | CE, ISO9001, SGS, BV, TUV |
| Machine Capicity: | 2000-24000bph (Customized) | Bottle Size: | 200-2500ml (Customized) |
| Bottle Shape: | Round Or Square | Export Markets: | Global Market |
| Quality Guarantee: | 1 Year Warranty And Lifetime Service | Lifetime: | Normally Used 8 To 10 Years |
Drinking Round or Square Bottle Beverage Filling Line/Drinking Beverage Filling Machine
Totally made of Food-grade stainless Steel 304 as a material ,which is easy to clean and no second polution.
Impact structure,and save room in your factory.
Fully Automation ,easy to oeprate with one click.
Reliable components from International company.
Product Description
3 in 1 beverage filliing Machine is mainly used for the filling and packing of beverage. This machine is a combination of rinsing, filling and sealing. It is suitable for PET or other plastic bottles. The micro negative pressure filling technology is used to make the filling more effective, more stable and more productive.
The high degree of automation and easy operation are the advatange of this machine ,it si best choice for the beverage enterprise.
Technical Specification
| Model(DXGF) | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Number of washing,filling,capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | 80-80-20 |
| Suited bottle specification (mm) | Φ=50-100 H=170 330-1500ML | Φ50-Φ110 H=160-340 | ||||||
|
Production capacity(350ML) b/h |
2000- 4000 |
4000- 6000 |
8000- 10000 |
10000-12500 |
12500 -15000 |
16000 -20000 |
20000 -24000 |
26000 -32000 |
|
Washing pressure (MPa) |
0.2-0.25 | 0.2-0.25 | ||||||
|
Filling pressure (MPa) |
0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Motor power |
1.5+0.55 +0.12 |
2.2+0.55 +0.18 |
3+0.55 +0.18 |
5.5+0.55 +0.18 |
7.5 | 11 | 15 | 19 |
|
Overall dimensions (L×W×H) mm |
2300×1600 ×2500 |
2600×1920 ×2550 |
3100×2200 ×2800 |
3850×3000 ×2850 |
4850×3800 ×2750 |
5750×3550 ×2750 |
6500×5500 ×2750 |
7680×6640
|

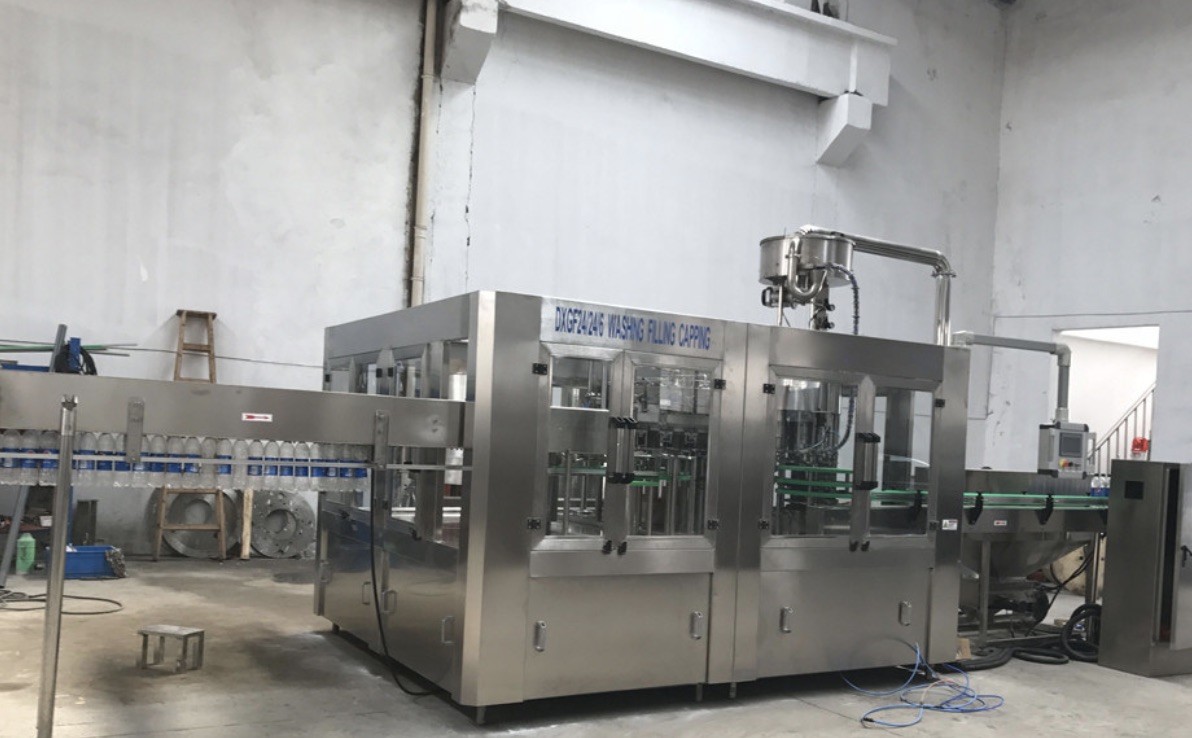

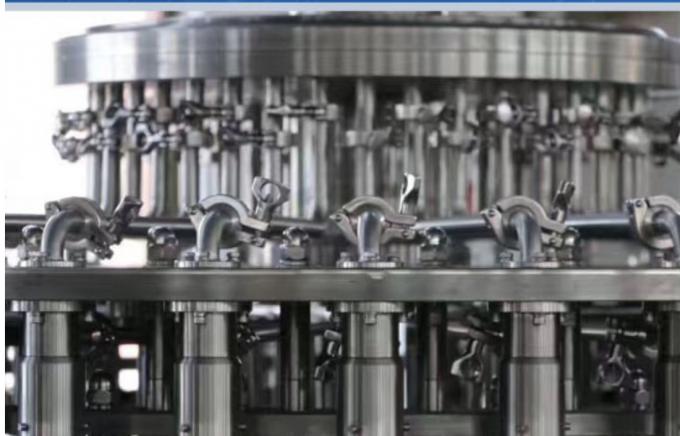

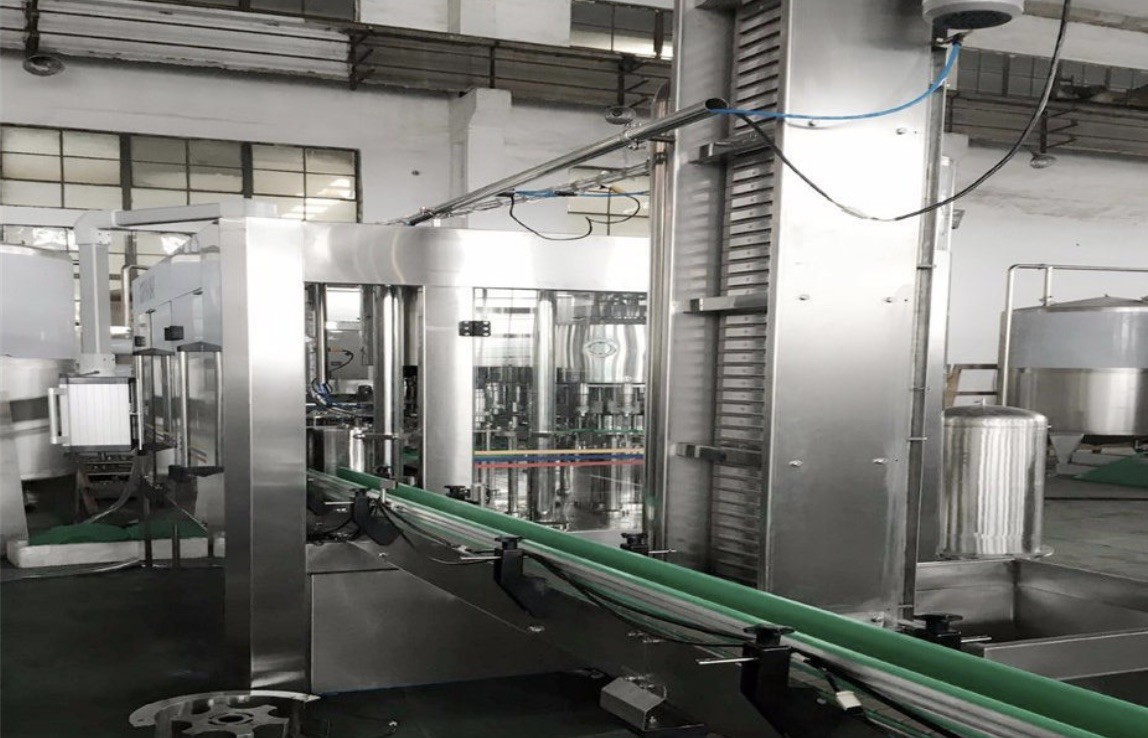

Machine show
Our services
- Check raw material quality report free of charge for raw material water treatment system.
- As workshop space free design workshop layout.
- If some customers are in urgent need of machines, we can ship the bottle caps and bottles for half a month to meet the customers' quick needs.
- Capacity requirements, we will match the solution. We have the ability to produce 36,000bph.
- Free install and training Serice for the machines.
- We will make a proposal acoridng to the dimensions of custoemrs factory ,Workshop space.
- One year quality assurance.We will supply Spares for free in one year.
- Some basic details need buyer support
