Stainless Steel RO Pure Water Treatment Systems / Plant For Pure Water
Customized services: for common raw water, such as groundwater, spring, mineral water, etc., we can directly provide dry, and for high TDS water source, we must provide water quality report. We will make customized design according to the actual situation. Customized services: for common raw water, such as groundwater, spring, mineral water, etc., we can directly provide dry, and for high TDS water source, we must provide water quality report. We will make customized design according to the actual situation.
|Name:||Ro Water Treatment Machine||Control Way:||PLC And Man Machine Interface Or Computer|
|RO Membrane Brand:||Film Tec ,Hydranautics Or PFT||Multi Media Filter Material:||Quartz Sand,5 Types 1,2,3,4,5|
|Active Carbon Filter Material:||Active Carbon, Iodine 900||Raw Water PH Range:||4-9|
|Raw Water Hardness:||17mg/L (calcium Carbonate)||Raw Water Pollution Index:||SDI Less Than 5|
|Raw Water Total Dissolved Solids:||Less Than 1000mg/L|

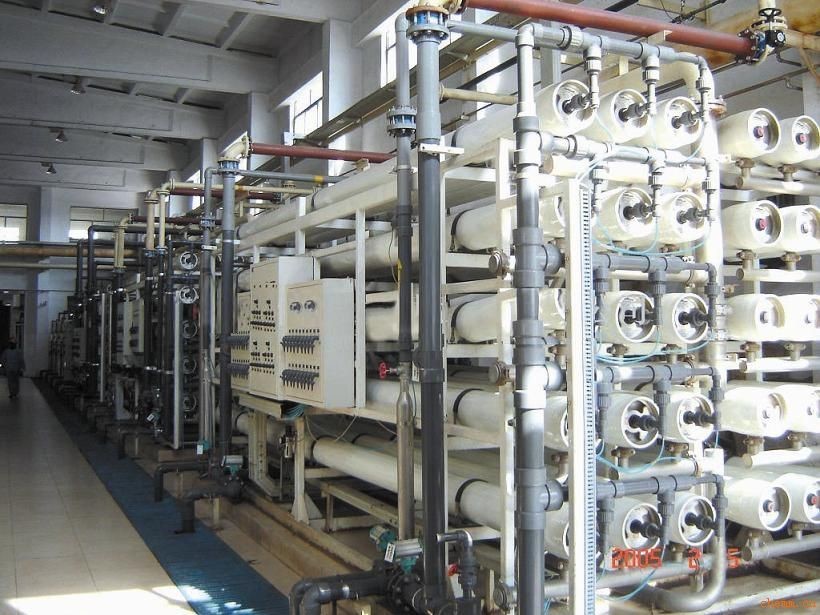

CE & ISO9001 Certificate One-Stage Stainless Steel Reverse Osmosis Pure water Treatment System / Plant for Pure Water
- Totally controled by PLC and touch screen interface
- Famouse Brand RO membrane brand: Film Tec ,Hydranautics or PFT,which is durable and effcient for purify the water .
Certificate : ISO9001, RO system CE certificate No: 111018/WHE713
one year Warranty
Oversea Insallation available.
- Multi media filter material: quartz sand,5 types 1,2,3,4,5 which isefficent
- RO high pressure pump: modern pump, Nan fang pump other famouse pump as you like.
- Customized services: for common raw water, such as groundwater, spring, mineral water, etc., we can directly provide dry, and for high TDS water source, we must provide water quality report. We will make customized design according to the actual situation.
- The cleaning of RO film and CIP system can be manually or automatically configured.
- The protection system is perfect. When the water tank is filled with water, the water will automatically shut down to ensure that the water does not leak. ,
- The SS high voltage component is used to avoid the leakage of the SS pump.
- The multi-stage pump automatic protection system does not need water, pressure, high pressure, short circuit or leakage protection. It ensures the safety and safety of the whole system.
Packaging & Delivery
W pack the machine with standard wooden Case and delivery by container.
Reverse osmosis equipment is widely used in beverage and pharmaceutical industry. Its principle is to store raw water first and then process it through pretreatment equipment, followed by reverse osmosis equipment. Through these processes, you can remove the hair clip in the water all harmful substances, including particle, colloid, organic impurities, heavy metals, bacteria, viruses, etc. Finally, the output of heat, water has the desalination rate of 96-98%, the conductivity of less than or equal to 10 mu – S/cm.
Original water tank raw water + + raw water pump + quartz sand filter + activated carbon filter + scale inhibitor activation system + ultrafiltration + reverse osmosis high pressure pump + system + pure water tank
|Product||CE & ISO9001 Certificate One-Stage Reverse Osmosis Pure water Treatment Plant|
|Production Capacity||15500 liter per hour(25°C)|
|Input water quality||TDS≤12000PPM(recommended)|
|Outlet water quality||Conductivity < 10 mS/cm|
|Salt Rejection Rate||≥97%|
|Recovery Rate(pure water : inlet water)||50~75%|
|Raw Water Pump||GRUNDFOS CR20-3|
|Quartz Sand Filter||SUS304 stainless tank:Dia1400×H3000×T3.0mm×1PC, including 4000KG quartz sand|
|Active Carbon Filter||SUS304 stainless tank:Dia1400×H3000×T3.0mm××1PC, including 1400KG activated carbon|
|Micron PP Filter||SUS304 tank Dia400×H1000×T1.5mm×1PC, including 5u×1000 20PCS|
|Ozone Generator& Mixer||SOZ-YB-50G×1pcs(OPTIONAL)|
|Multistage Pump||GRUNDFOS CR20-14|
|Membrane||American ESPA-8040×15PCS or customized according to requirement|
|Housing||stainless steel 304 80200 housing×3PCS|
|Piping||U-PVC quick connection|
|Structure||Full SUS304 stainless steel|
|Size of main machine||3300×700×1970mm|
|Size of before filter||5000×1700×4200mm|
|Others||Flow meter, TDS meter, pressure meter, electromagnetic valve, etc.|
- Provide product instructions, related instructions, tutorials
- The plan can be designed according to the factory dimension.
- The Engineer will be deliveried to the customers factory to install, test, ensure normal operation, and arrange training at the same time.
- 1 years warranty, free for sprares for one year.
