Automatic High Capacity 1T/H – 5T/H Yoghurt Drink Production Line / Plant For Plastic Bags, Cups, Bottlle
Product Description
The company can design personalized yoghurt drink production line according to customer's requirement. Production capacity varies from 1000l/hr 10000l/hour according to customer needs.
The type of filling and packing of CIP cleaning system can be determined by the customer and then designed.
Machines in Production Line
The whole production line of yoghurt is composed of the following system:
- Water treatment system
- . Sugar melting system
- . For the process piping installation material, provided the utility piping and electrical installation.
- . Pack packing system
- Other auxiliary equipment include steam boiler, air compressor, chiller, etc.
-
. Post-processing equipment, such as conveyor, packaging or pallet, etc.
Our yoghurt drink production lines can be widely used to produce yogurt, setted yoghurt, stirred yoghurt, yoghurt drink, pasteurized milk, UHT milk, ice cream,
The raw milk cabe fresh milk or milk powder
the procedure can sterilize or pasteurize or sterilize.
The finished product packaging of this production line can be plastic bags, plastic cups, plastic bottles, glass bottles, top boxes, front bags, bags, etc.
According to the different final product and packing type, the design method of the production line is different.
This milk production line produces a variety of market dairy products, namely whole milk, skimmed milk and various fat content standard milk.
Specification
No. | Item | Spec. | Qty |
1 | Water treatment | 200L | 1 set |
2 | Emulsion pump | 5T/H | 1 unit |
3 | Mixing tank | 100L | 1 unit |
4 | Colloid mill | JM-50 | 1 unit |
5 | Filter | 100 | 1 unit |
6 | Homogenizer | 100L/H | 1 unit |
7 | Sterilizer | 100L/H | 1 unit |
8 | Fermentation tank | 100L | 1 unit |
9 | Rotor pump | 1T/H | 2 units |
10 | Heat exchanger | 3M2 | 1 unit |
11 | Storage tank | 100L | 1 unit |
12 | Semi-auto stand-up pouch filling machine | 1000BPH | 1 unit |
13 | The disc-type automatic drop cup filling machine | 1000CPH | 1 unit |
14 | Electric heating boiler | 28L/0.7Mpa/8~18kw | 1 unit |
15 | Ice water machine | 5HP | 1 unit |
16 | Air compressor | 25L/0.8Mpa | 1 unit |

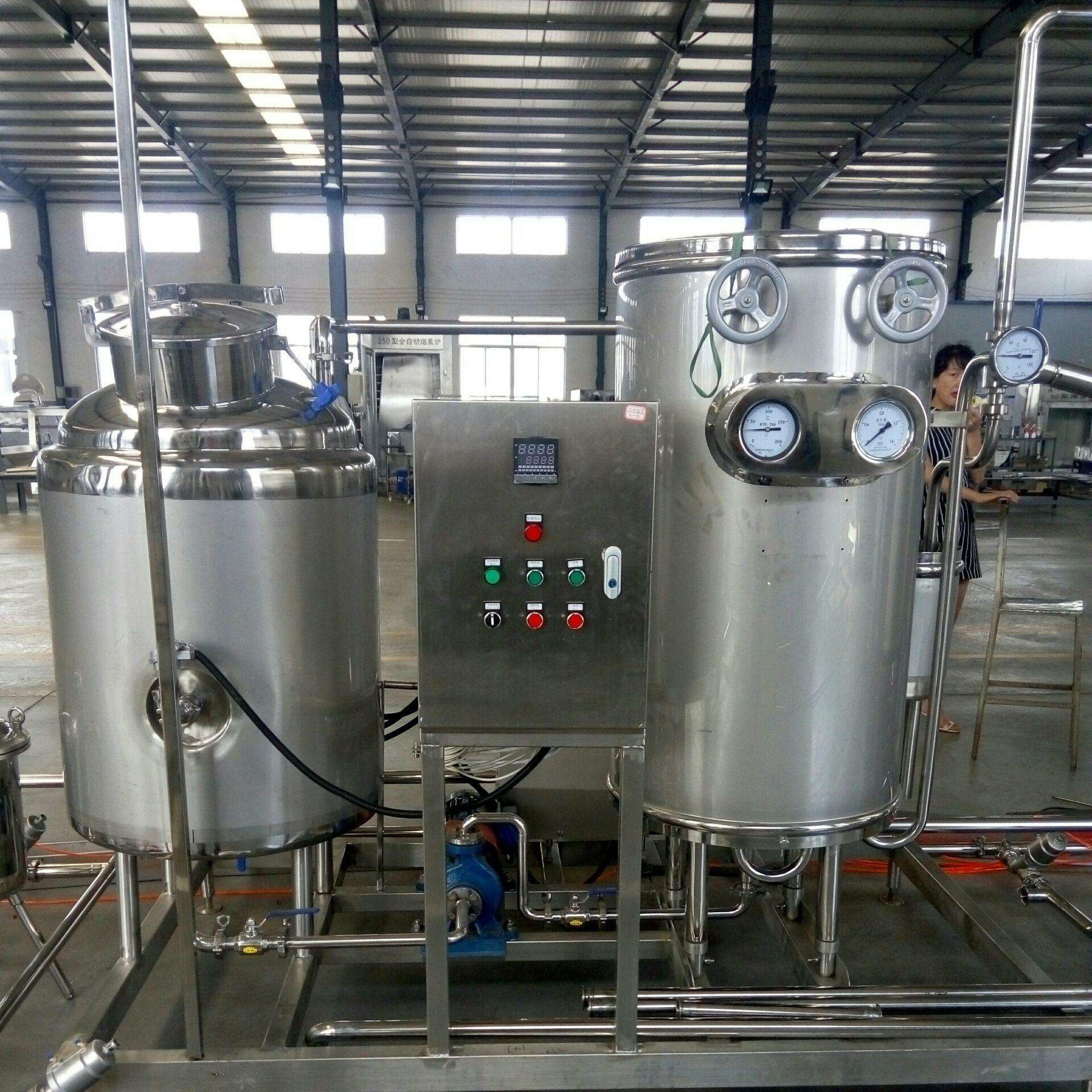

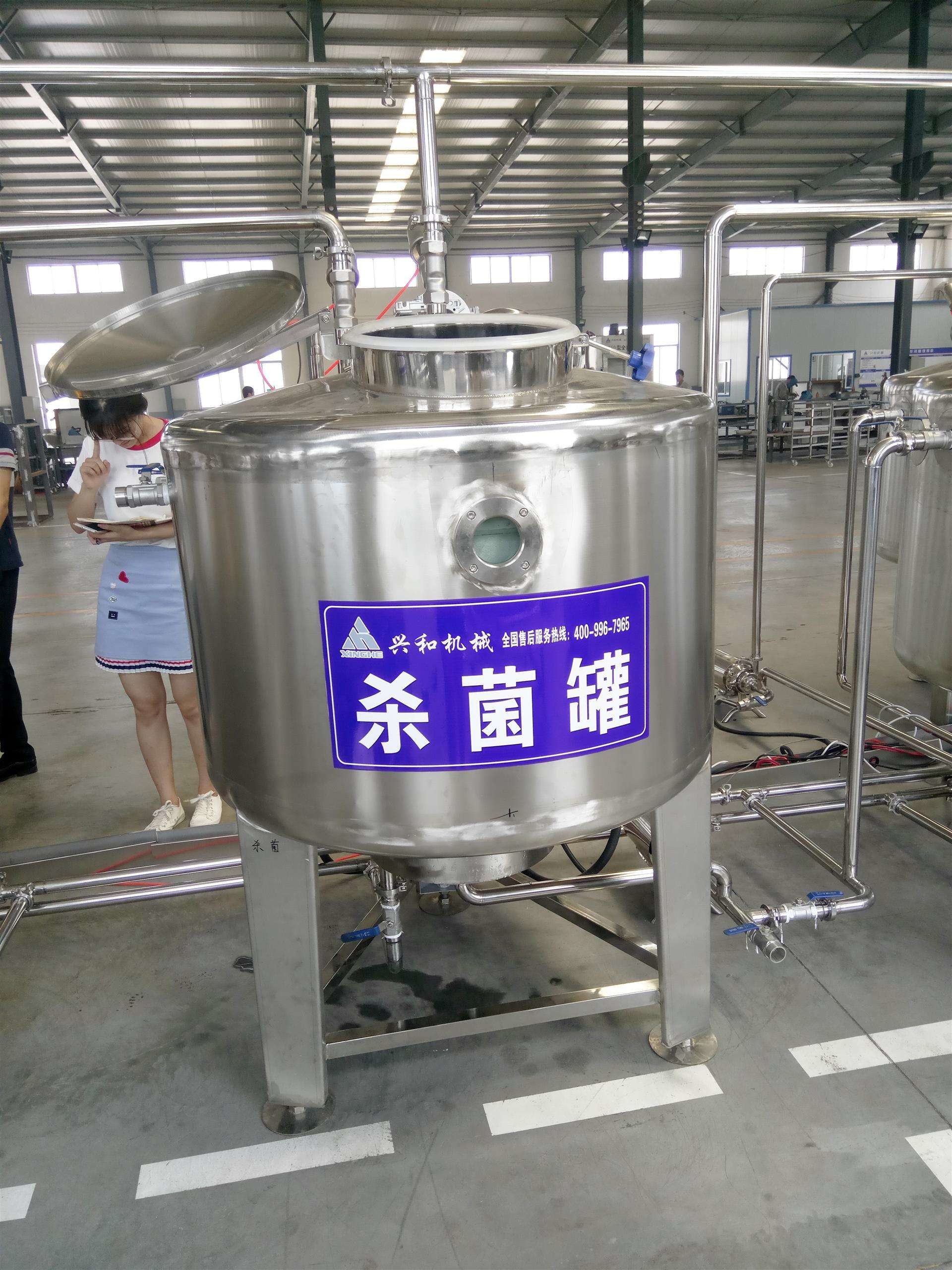

Product show
