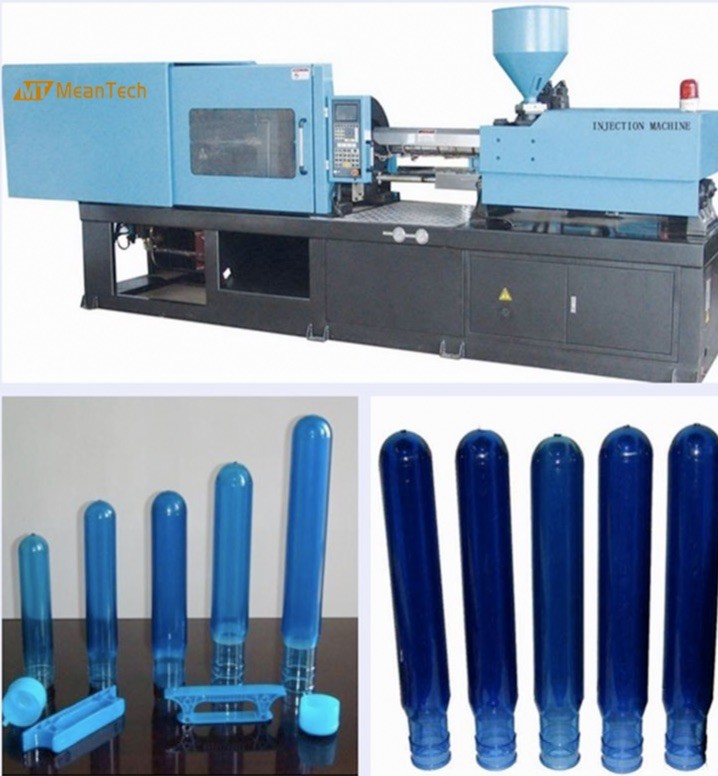

Click the button170 Ton Automatic Plastic Injection Moulding Machine Horizontal Style Preform Injection
Applicable to PP, PE, PET, PC, PS, PVC, ABS, SAN and other thermoplastic materials for production of prefabricated parts, bottle caps, handles, containers, daily supplies, hardware/kitchenware and other plastic products. Save electricity about 35% ~ 38%, investment recovery time 6-12 months. It is the best ideal product to save electricity in the user factory.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
Condition: | New | Type: | Preform Injection |
---|---|---|---|
Style: | Horizontal | Brand Name: | BAUTHAI |
Model Number: | BT-W170 | Place Of Origin: | Zhejiang, China (Mainland) |
Plastic Type: | Thermoplastic | Automatic: | Yes |
Injection Weight: | 320g |
Product Descriptions
-
The machine has the advantages of beauty, durability, energy saving and environmental protection.
-
Applicable to PP, PE, PET, PC, PS, PVC, ABS, SAN and other thermoplastic materials for production of prefabricated parts, bottle caps, handles, containers, daily supplies, hardware/kitchenware and other plastic products.
-
Save electricity about 35% ~ 38%, investment recovery time 6-12 months. It is the best ideal product to save electricity in the user factory.
-
PLC, Japanese yuken hydraulic system.
-
We have different series of injection molding machines to meet your different product needs.
-
Design according to CE standard.
-
Easy to control, very energy efficient.
-
Applicable for all thermoplastic material such as PP, PE, PET, PC, PS, PVC, ABS, SAN etc, and it is used to produce preforms, caps, handles, containers, daily necessities, Hardware /kitchenware as well as other plastics products.
-
All models are servo and non – servo.
Specifications
Technical Parameter | ||||
Item | Unit | Parameter | ||
INJECTION UNIT | ||||
screw diameter | mm | 35 | 40 | 45 |
screw L/D ratio | L/D | 24 | 21 | 18.7 |
theoretical shot volume | cm*3 | 173 | 226 | 286 |
shot weight(ps) | g | 158 | 206 | 260 |
injection pressure | Mpa | 235 | 180 | 142 |
theoretical injection rate | g/s | 110 | 143 | 181 |
plastic capacity | g/s | 13.8 | 19.7 | 27.1 |
CLAMPING UNIT | ||||
max.clamping force | KN | 1300 | ||
max.opening stroke | mm | 400 | ||
space between tie bars | mm | 420×420 | ||
mould height | mm | 160-440 | ||
max.daylight | mm | 840 | ||
OTHER | ||||
pump motor power | KW | 15 | ||
pump pressure | Mpa | 16 | ||
heating power | KW | 9.2 | ||
size | m | 4.7×1.25×1.85 | ||
net weight | t | 4.3 | ||
oil tank capacity | L | 360 |
We are able to customize the machine according to your need,please contact us for more details.

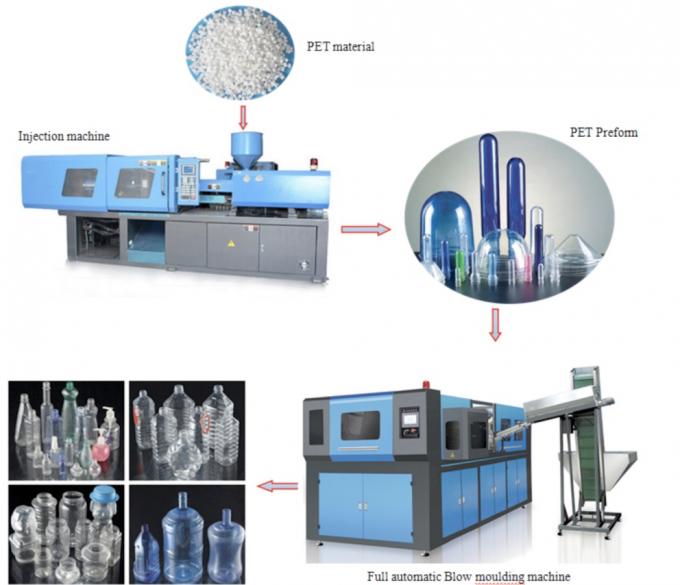

Flow Chart
Complete ling for production bottle

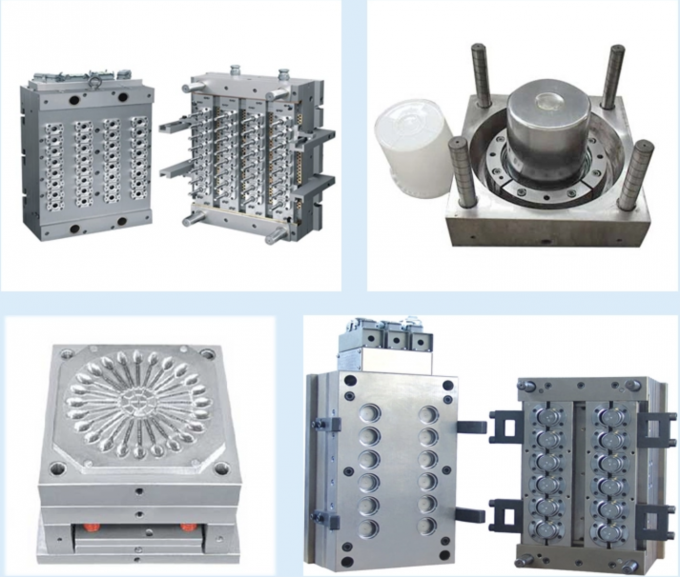

Product show

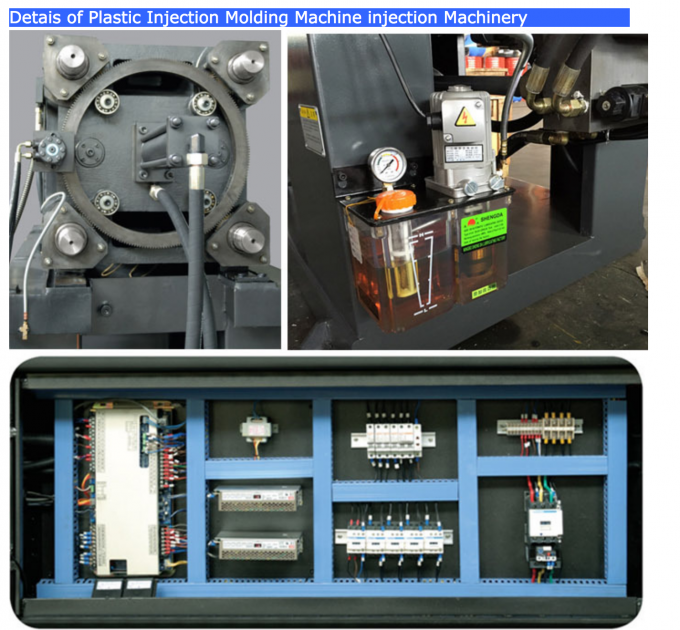

Injection unit
- Quick response checking valve
- Dual alloy 39CrMoAl screw and barrel
- High response and double cylinder injection system with automatic conversion function
- Screw back pressure control

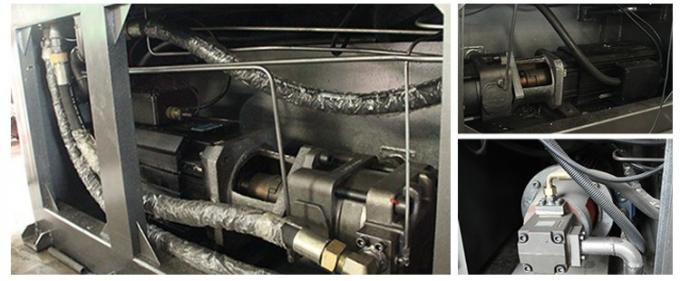

Hydraulic unit
- Top brands hydraulic parts ensure machine fast and stable
- Visible and dischargeable oil tank, easy for hydraulic circuit maintenance
- Top brand hydraulic pipe fits with seal, no leaking
- High response hydraulic circuit,0.05S to reach the maximum power output

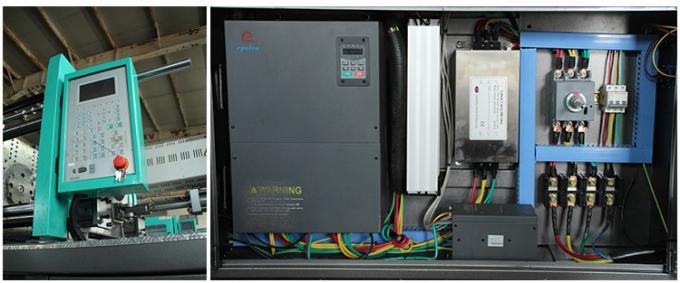

Electric Unit
- Top brands electric parts supporting
- High class color screen controller
- Three color tower light with alarm
- Euro standard safety standard

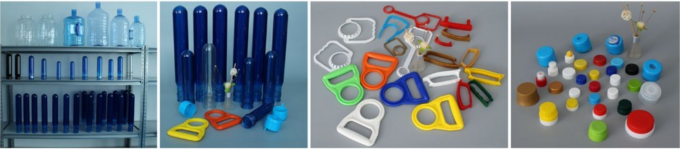

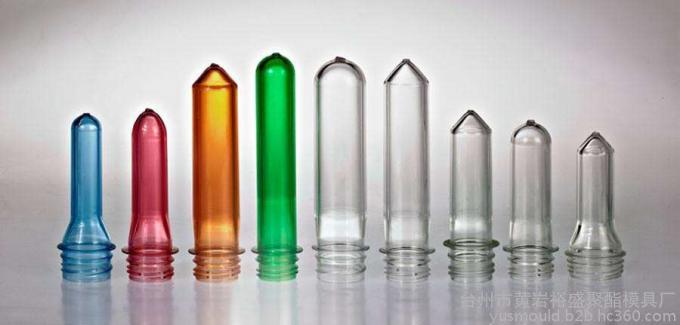

OutPut Products
-
