Click the buttonAutomatic Monoblock 3 In 1 Plastic Bottle Filling Machine , Fruit Juice Filling Machine
Suspension bottleneck catcher can easily replace the bottle type.
Adopt PLC, frequency converter, man-machine interface and imported designer components.
No plastic sealing ring on the filling valve to avoid dust entering the bottle.
Can be sterilized with UHT, CIP and decanting system.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Filling Machine | Application: | Beverage, Chemical |
---|---|---|---|
Packaging Type: | Bottles | Packaging Material: | Glass, Plastic |
Automatic Grade: | Automatic | Driven Type: | Electric |
Certification: | CE | Filling Range: | 10-50ml |
Production Capacity: | 20-40 Bottles/min | Filling Nozzles: | 2 |
Pump: | Peristaltic Pump | Screen: | Color Touch Screen |
Control: | PLC | Warranty: | 1 Year |

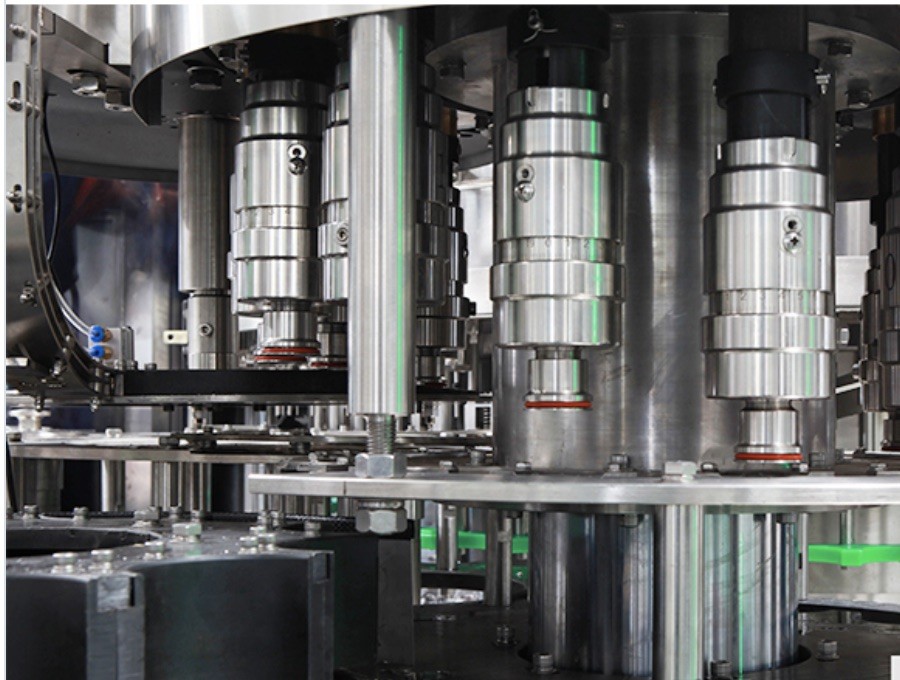

Automatic Monoblock 3 in 1 Glass Plastic bottled Juice Tea beverage Filling Machine CE
- Suspension bottleneck catcher can easily replace the bottle type.
- Adopt PLC, frequency converter, man-machine interface and imported designer components.
- No plastic sealing ring on the filling valve to avoid dust entering the bottle.
- Can be sterilized with UHT, CIP and decanting system.
- The principle of gravity backflow filling of micro-negative pressure, improve filling accuracy and reduce pollution.
- The structure is reasonable, solid and stable in operation.
- Screw mould block adopts internal grooves to increase coverage.
- Safety protection devices ensure the safety of operators and machines.
- The unique control device keeps the return flow under 5%.
- Quality air filters ensure that the working air meets hygienic standards.
- Magnetic torsion capping machine ensures the sealing of the cap and prevents damage to the bottle.
Appliaction:
This machine is mainly suitable for automatic filling, stoppering and screw capping of electronic cigarette liquid, eye drops, nail polish, eye shadow, essential oil, with filling volume less then 50 ml
Parameter:
Model: | MT18-18-8 | MT24-24-8 | MT32-32-12 | CGF40-40-12 |
capacity: 800ml | 8000 | 8000 | 12000 | 18000 |
bottle shape: | roud or square | |||
PET bottle: (mm) | (Bottle Diameter): φ 80-. φ 110mm (Height): 180-340mm | |||
cap: | PE srew cap | |||
filling precision: | ≤ ± 5mm | |||
filling pressure: (Mpa) | 0.18-0.35 | 0.18-0.35 | 0.18-0.35 | 0.18-0.35 |
rinsing pressure: (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 |
filling volume: (L) | 3.5 | 4 | 8 | 8 |
overall size: (mm) |
2480*1800 *2380 |
2780*2200 *2380 |
3800*2880 *2380 |
3800*2980 *2400 |
weight: (kg) | 3800 | 4800 | 5800 | 8800 |
Package
We pack the machine with wooden package.
Our Service:
- We can customize the machine (material, power, filling type, etc.) according to your requirement.
- We provide free warranty for one year, and prepare spare parts for you to ship with the equipment. We will provide you with the equipment for one year free of charge, which is less than the market price one year later.
- Our customers are all over the world and you can visit other customers' factories if you need them.
- We can send you the pictures of the equipment running, video and so on.
- We will deliver the goods on time and provide the inventory on time to ensure that you can get the machine quickly.
- You are welcome to visit our company and see how the machines are running in our factory. We can arrange the shuttle service.
-
