Click the buttonPET Bottle Fruit Juice Production Line , Automatic Fruit Juice Packaging Machine
The fruit juice filling machine design is reasonable, the appearance is simple and beautiful, the filling quantity adjustment is convenient.
The fruit juice filling machine is designed by our company in reference to foreign similar products, adding some additional functions to make the product operation, adjustment, cleaning and maintenance easier.
Products
-
Bag Filling Machine
-
Beverage Filling Line
-
Biscuit Making Machine
-
Biscuit Production Line
-
Bottle Blowing Machine
-
Carbonated Drink Production Line
-
Cosmetic Filling Machine
-
Drink Production Line
-
Drinking Water Filling Machine
-
Drinking Water Production Line
-
Edible Oil Production Line
-
Fruit Juice Processing Line
-
Juice Filling Machine
-
Plastic Injection Molding Machine
-
Snack Food Production Line
-
UHT Milk Processing Line
-
Water Treatment Systems
-
Vertical Packaging Machine
-
Other Packaging Machine
-
Pillow Type Packaging Machine
-
Pre-made Pouch Packing Machinery
-
Measuring Equipment
-
Cup Filling Machines
-
Conveyor Equipment
-
Auxiliary Equipment
-
Automatic RO Water Treatment Plant , Stainless Steel Water Treatment Equipment
-
Litchi / Pulp Juice Filling Machine High Capacity Semi- Automatic CE Certificate
-
High Capacity Carbonated Drink Production Line Machine For 500ml-2500ml Bottle
-
3 In 1 Plastic Bottle Beverage Filling Machine , Automatic Soft Drink Filling Machine
-
Red Bull Energy Drink Production Line Automatic For Glass / PET Bottle
-
Fully Automatic Drinking Water Filling Machine 600-3000BPH For 5 Gallon PET Bottle
-
Bottled Mineral Drinking Water Production Machine / Filling Production Line
-
SUS304 PET Bottle Edible Oil Bottle Filling Machine For Non Viscous Liquid Filling
Type: | Fruit Juice Processing Line | Application: | Chemical, Commodity, Food, Medical, Textiles |
---|---|---|---|
Packaging Material: | Glass, Metal, Plastic, Wood | Automatic Grade: | Automatic |
Driven Type: | Pneumatic | Place Of Origin: | Shanghai, China (Mainland) |
Material: | Ss304/ss316 | Control: | PLC Control ,touch Screen |
Type: | Juice Filling Machine |
CE Certificate Automatic PET Bottle Friut Juice Filling Machine / Fruit Juice Packaging Machine
- ISO9001&CE Authoritative certification
- Food grade stainless steel for easy cleaning, no pollution.
- Bottle positioning system and liquid level control system to avoid bubbles and avoid liquid level.
- The performance is stable with the German FESTO, the Taiwan adeck pneumatic components and the electrical control parts of Taiwan.
Production Description
- All parts of the contact with raw materials are made of 304 or 316L stainless steel.
- It adopts the filling head lifting system, the bottle positioning system and the liquid level control system to avoid the bubbling and avoid the liquid level.
- The performance is stable with the German FESTO, the Taiwan adeck pneumatic components and the electrical control parts of Taiwan.
- No bottle without filling, with counting function.
- The fruit juice filling machine design is reasonable, the appearance is simple and beautiful, the filling quantity adjustment is convenient.
- The fruit juice filling machine is designed by our company in reference to foreign similar products, adding some additional functions to make the product operation, adjustment, cleaning and maintenance easier.
- The eight filling head of juice filling machine is driven by servo motor, which is more accurate, more stable and convenient to adjust than the drum drive.

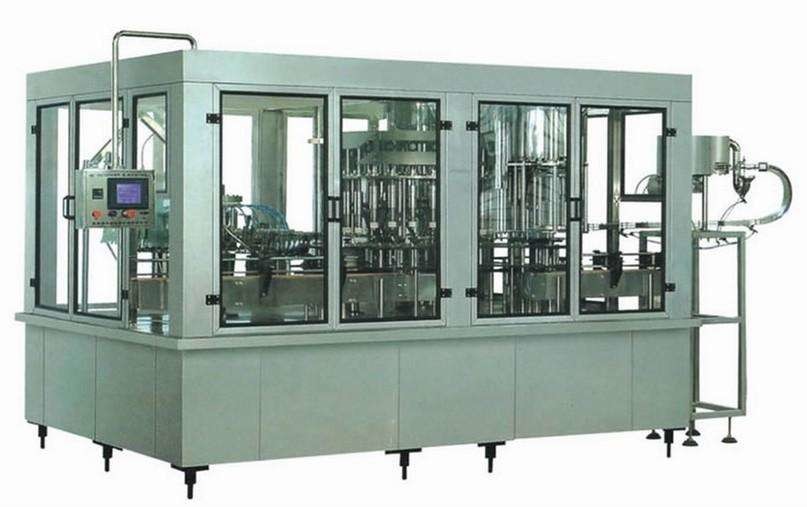

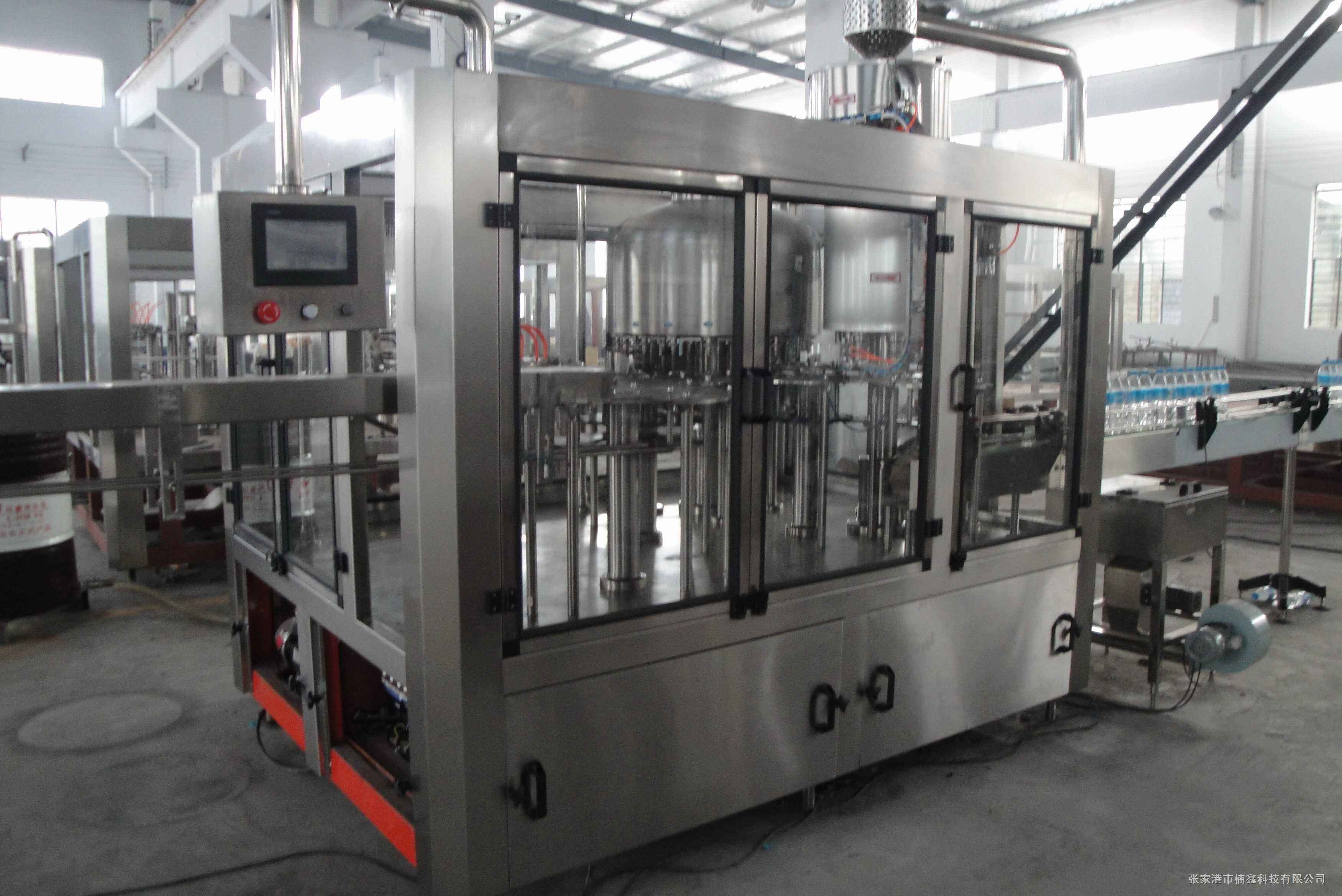

Product Show
Output Product
Specifications
Model | MT-G12-12-6 | MT-G18-18-6 | MT-G24-24-8 | MT-G32-32-8 | |
Production Capacity(600ml)(b/h) | 2300 | 3500-3500 | 4500-6500 | 7500-10000 | |
Way of Filling | gravity filling technology | ||||
Filling Precision | Liquid level from the bottle≤5mm | ||||
Feedback Consumption | ≤10% | ||||
Polyester Bottle Standard(mm) | (Bottle Diameter)40-92;(Height):130-310 | ||||
Suitable Cap Shape | (Plastic Screw Cap) | ||||
Water Pressure of Washing Bottle(Mpa) | 0.19 | ||||
Water Consumption for Water Bottle(Kg/h) | 800 | 1600 | 2500 | 3500 | |
Gas Source Pressure(Mpa) | 0.7 | ||||
Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | |
Total Power(kW) | 4.88 | 6.68 | 7.68 | 9.18 | |
Total Weight(Kg) | 2300 | 3000 | 4000 | 5000 | |
Dimension(L×W×H)(mm) | 2400×1550×2200 | 2540×1600×2200 | 3250×2150×2250 | 3600×2200×2250 |
-
