Name: | Semi Automatic Pet Blowing Machine | Application: | Bottle |
---|---|---|---|
Plastic Processed: | PET | Blow Moulding Type: | Stretch Blow Moulding |
Automatic: | Yes | Certification: | Ce |
Warranty: | 1years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
CE: | Good Air |

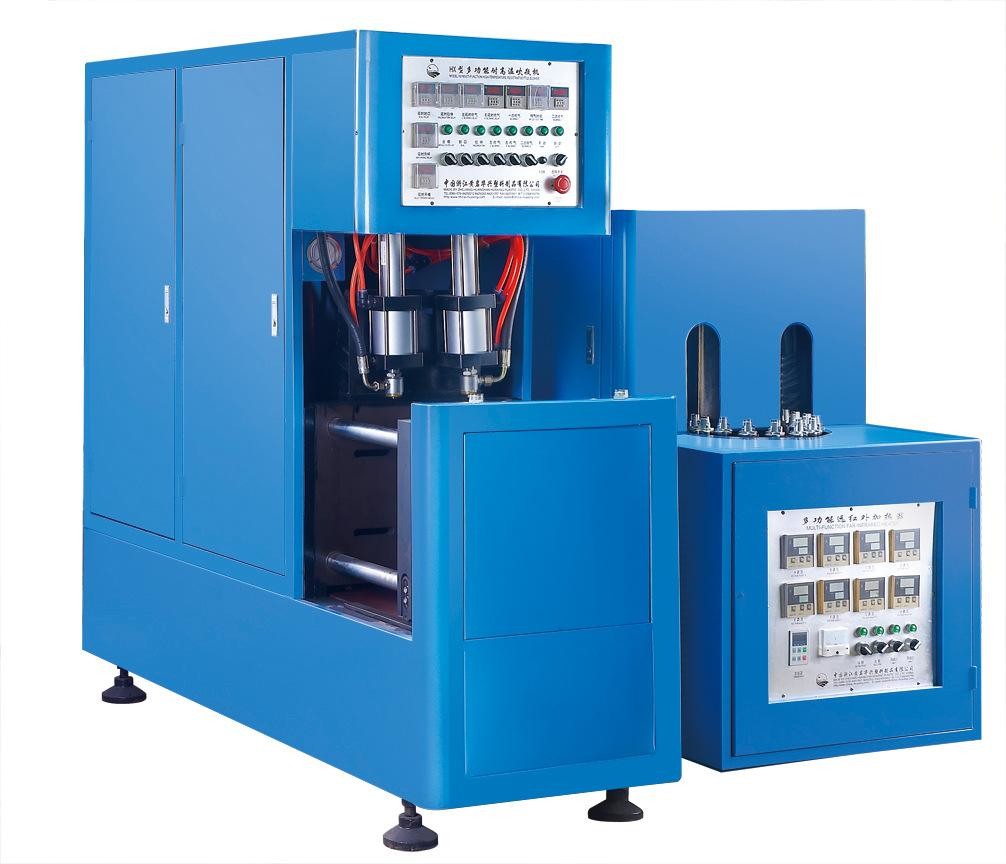

Semi Automatic Pet Bottle Blowing Machine 200ml-5000ml Mineral Water Bottle,Soft Drink Bottle Blowing Machine
Product Description
The bottle blowing machine is suitable for producing PET/PC/PE bottles of different shapes. It can be used in the production of 100 ml to 6000 ml bottle, it is widely used in production of all kinds of water bottles, carbonated soft drink bottles, juice bottles, medicine bottle, cosmetics, refined oil, etc., the device takes up small volume, less investment, simple and safe operation.
Product Features
- Double mechanical arm clamping is used to ensure high pressure and high temperature.
- The preheater is used in the infrared lamp to ensure that the PET bottle billet is heated evenly.
- The machine is also equipped with muffler and lubricating system to lubricate the machine parts.
- Equipped with silencer and lubricating system to lubricate the machine part.
- Adopt double crank to adjust the mould, re-lock mould, fast and stable, use the infrared furnace to heat and execute, perform rotation and heating even.
- The machine is small, the investment is low, the operation is simple, safe.
- The machine can be operated in step by step mode and semi-automatic mode.
Specification:
TYPE | ITEM | MEASUREMENT | HZ-880 Combined type | HZ-880 Standard type |
END PRODUCT | Material | / | PET/PP/PE/PC | PET/PP/PE/PC |
Volume | L |
0.06-2.5(2-cavity) 3-6(1-cavity) |
0.05-2.5 (2-cavity) 3-6 (1-cavity) |
|
Theoretical output | Pcs/h |
0.05-2.5L/1700 3-6L/800 |
0.05-2.5L/850 3-6L/400 |
|
Max.length | mm | 370 | 370 | |
max.diameter | mm | 180 | 180 | |
MOULD PLATE | Max.mould plate dimension(L*H) | mm | 420*500 | 420*500 |
Max.mould thickness | mm | 170-240 | 170-240 | |
Clamping force | KN | 90 | 90 | |
Mould opening stroke (adjustable) | mm | 200 | 200 | |
AUXILARY |
High pressure Compressor M3/Mpa |
KW | >=0.70/3.0*1set 22 | >=0.7/3.0*2sets 22 |
Precision air filters | M3/Mpa | >=1.0/3.0*2pcs | >=1.0/3.0*2pcs | |
MAIN MACHINE ELECTRICITY | Power | KW | 12 | 12 |
Voltae/Frequency | V/HZ | 220-380/50-70 | ||
MACHINE SIZE AND WEIGHT | Main body dimension(L*W*H) | M | 1.45*0.6*1.75 | 1.45*0.6*1.75 |
Main body weight | T | 0.6 | 0.6 | |
Conveyor dimension(L*W*H) | M | 1.40*0.62*1.25 | 1.40*0.62*1.25 | |
Conveyor weight | T | 0.22 | 0.22 | |
SAFTY | Auto-emergency alarm | SAFETY INTER-LOCKING DEVICE |
Product Show:
Output Product
Our Service
- All moulds are designed by CAD/CAM.
- Guarantee:
- Ten thousand times to execute mold, bottle cap mold.
- We respond to the machine, the warranty is one year,
- we provide spare parts to customers for free in the first year. we could send engineer to the customer's company, help to install the machine, training the staff to operate the machine, at the same time, we have a private school, to help our customers to their employees into China, to help them.
- Provide complete picture for mold and bottle mould. Free of charge in mold design. We can help you install the machine; From machine, test, and check machine is in good working condition. There is a garbage charge, only for flight and accommodation.
- Payment method: T/T prepaid 30%, the balance should be paid after the delivery of the customer.
- Delivery time: we have the machine ready. For the mold, we can finish it in 15 days.
- We can also provide mould drawing to help you keep the mould and machine.
-
